C 302 - Shindaiwa Brush Cutter (SN: U42229001001 - U42229999999) INTAKE Parts Diagram

Brush Cutter

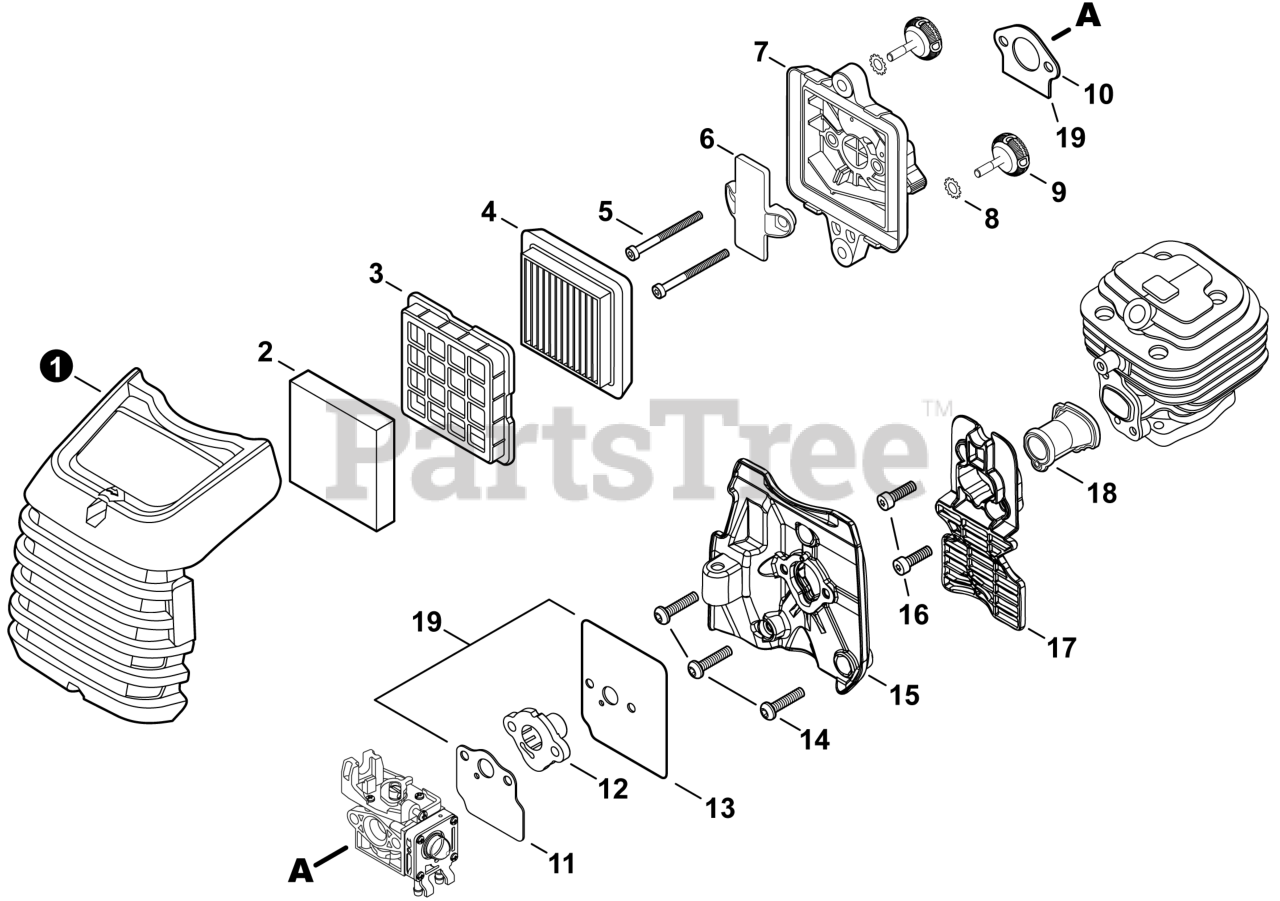

INTAKE Parts Diagram

  • Title
1

Echo A232001970

COVER, AIR FILTER

$10.99

$

In Stock, Qty 7

0

2

Echo A226002040

PRE-FILTER, FOAM

$2.99

$

In Stock, Qty 20+

0

3

Echo A227000050

RETAINER, PRE-FILTER

$2.99

$

In Stock, Qty 20+

0

4

Echo A226002030

FILTER, AIR

$14.99

$

In Stock, Qty 20+

0

5

Echo V805000340

BOLT, TORX 5x60

$1.49

$

In Stock, Qty 19

0

6

Echo A244000370

PLATE, PREVENT

$16.99

$

In Stock, only 2 left!

0

7

Echo P021051160

CASE, AIR FILTER

$16.99

$

In Stock, only 2 left!

0

8

Echo V340000210

WASHER, LOCK

$0.99

$

In Stock, Qty 20+

0

9

Echo V299000640

THUMBSCREW

$2.99

$

In Stock, Qty 20+

0

10

Echo V103001900

GASKET, INTAKE

$1.99

$

In Stock, only 1 left!

0

11

Echo V103002010

GASKET, BOOT

$1.99

$

In Stock, Qty 13

0

12

Echo A209001090

BOOT, INTAKE

$1.99

$

In Stock, Qty 14

0

13

Echo A209001100

GASKET, INSULATOR PLATE

$3.99

$

In Stock, only 3 left!

0

14

Echo V805000000

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

15

Echo A209001080

PLATE, INSULATOR

$12.99

$

In Stock, only 3 left!

0

16

Echo V805000150

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

17

Echo A206000060

HOLDER, BELLOWS

$4.49

$

In Stock, only 1 left!

0

18

Echo A202000330

BELLOWS, INTAKE

$17.99

$

In Stock, only 1 left!

0

19

Echo P021052480

GASKET KIT

$22.99

$

In Stock, only 2 left!

0
