C 3011523BV (7800364) - Snapper 30" Rear-Engine Riding Mower, 11.5hp, CARB PRIMARY CHAIN CASE & SMOOTH CLUTCH Parts Diagram

30" Rear-Engine Riding Mower, 11.5hp, CARB

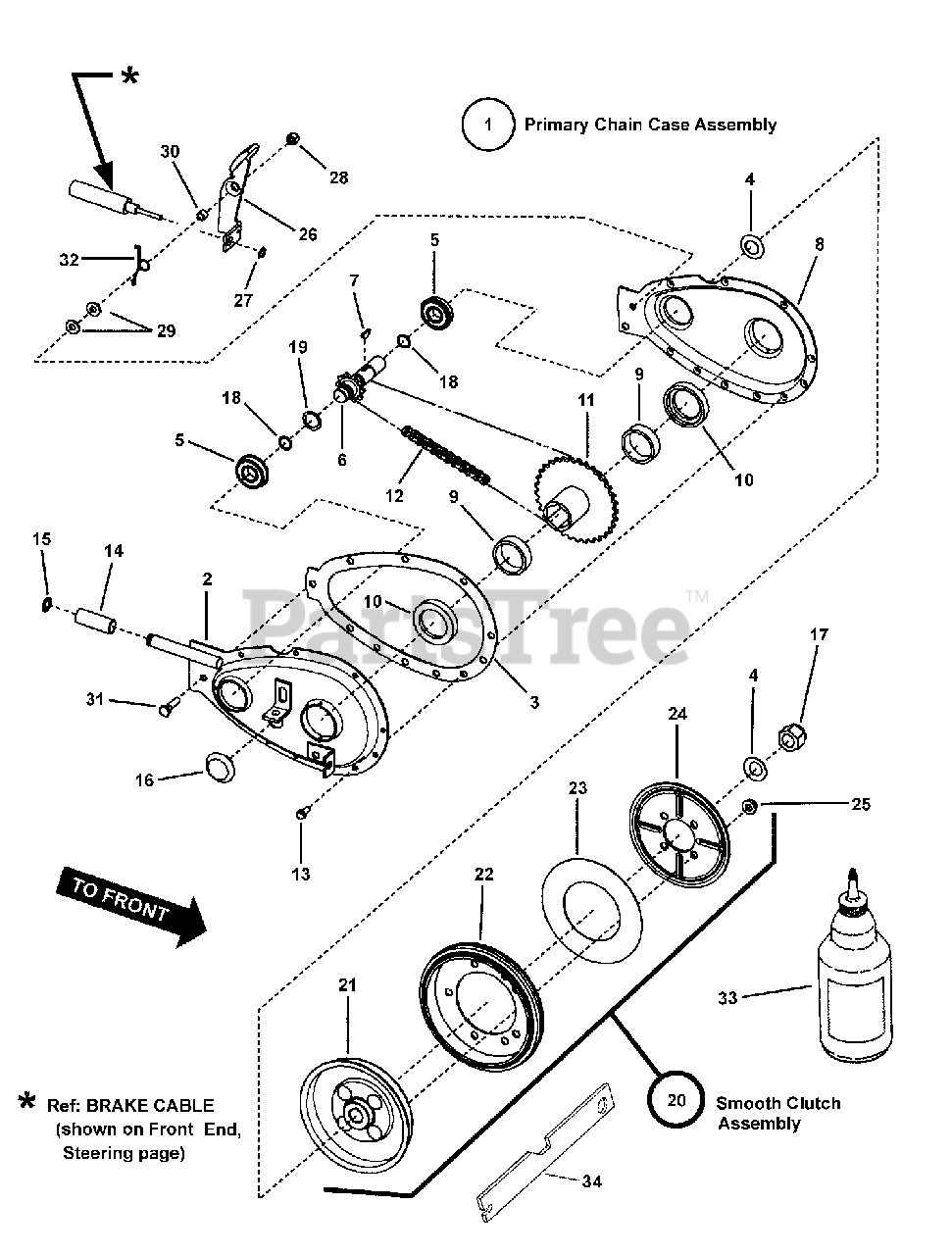

PRIMARY CHAIN CASE & SMOOTH CLUTCH Parts Diagram

  • Title

1

Snapper 7052683

ASSEMBLY, Primary Chain Case
(Superseded to 7052683YP)

Note: (Includes the following 16 items)

$530.99

$

In Stock, only 1 left!

0

2

Snapper 7041136

WELDMENT, Primary Chain Case Half, Right Hand
(Superseded to 7041136YP)

$86.99

$

In Stock, only 1 left!

0

3

Snapper 7028761

GASKET, Primary Chain Case
(Superseded to 7028761YP)

$24.99

$

In Stock, Qty 20+

0

4

Snapper 7011121

WASHER, 5/8" Belleville
(Superseded to 7011121SM)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7010756

BEARING, .625 x 1.37 x .435
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

6

Snapper 7018963

WELDMENT, Sprocket & Shaft
(Superseded to 7018963YP)

$96.99

$

In Stock, only 2 left!

0

7

Snapper 7010614

KEY,#5 Woodruff
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7039778

PRIMARY CHAIN CASE HALF, Left Hand
(Superseded to 7039778YP)

$43.99

$

Usually ships in 2-12 days

0

9

Snapper 7010942

BEARING, Needle 1.355" ID x 1.6245" OD x .5" Wide
(Superseded to 7010942YP)

$13.99

$

In Stock, Qty 20+

0

10

Snapper 7011086

THRUST WASHER, Nylon
(Superseded to 7011086YP)

$4.49

$

In Stock, Qty 14

0

11

Snapper 7040355

WELDMENT, Hub & Sprocket
(Superseded to 7040355YP)

$245.99

$

Usually ships in 2-12 days

0

12

Snapper 7010941

CHAIN, 46 Pitch (#35 Endless)
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

13

Snapper 7090913

SCREW, 10-24 x 1/2" Hex Washer Self-Tap
(Superseded to 704060)

Note: or 7090307

$3.49

$

In Stock, Qty 11

0

14

Snapper 7022785

ROLLER, 1-3/8 Long
(Superseded to 7022785YP)

$6.49

$

In Stock, only 1 left!

0

15

Snapper 7010776

RING, 1/2" External Retaining (Heavy Duty)
(Superseded to 7010776YP)

$3.99

$

In Stock, only 1 left!

0

16

Snapper 7011024

PLUG, 3/4" Cup Insert
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

17

Snapper 7091505

NUT, 5/8-18 Hex Nyloc
(Superseded to 703432)

$

$

Not available

18

Snapper 7019260

O-RING, 1/2 x 5/8"
(Superseded to 7019260YP)

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7027981

WASHER, Shim .625 x .875
(Superseded to 7027981YP)

$4.49

$

In Stock, Qty 9

0

20

Snapper 7053114

ASSEMBLY, Smooth Clutch (non-asbestos)
(Superseded to 7600208YP)

Note: (Includes the following 5 items)

$

$

Not available

21

Snapper 7059443

HUB, Driven Disc (assembly)
(Superseded to 7600142YP)

Note: was 7054243

$42.99

$

In Stock, Qty 20+

0

22

Snapper 7053103

DISC, Driven (Smooth-start, rubber tire bonded to rim with inner liner)
(Superseded to 7600135YP)

$42.99

$

In Stock, Qty 20+

0

23

Snapper 7014523

THRUST WASHER
(Superseded to 7014523YP)

$4.99

$

In Stock, Qty 20+

0

24

Snapper 7032331

PLATE, Drive Disc
(Superseded to 7032331YP)

$18.99

$

In Stock, Qty 20+

0

25

Snapper 7092081

NUT, 5/16-24 Hex Flange Lock
(Superseded to 703123)

Note: or 7090480, center lock flange nut

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7052497

ASSEMBLY, Brake Lever (Includes brake pad & rivet)
(Superseded to 7052497YP)

$13.99

$

In Stock, Qty 20+

0

27

Snapper 7012313

RING, 3/8" External Retaining
(Superseded to 7012313SM)

$3.99

$

In Stock, Qty 12

0

28

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

29

Snapper 7091294

WASHER, .28 x .63 x .06 Flat, GR 5
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

30

Snapper 7072593

* SPACER, Brake Arm Pivot (.418/.403 long)
(Superseded to 7072593YP)

Note: replaces 7010916 (.300/.285 long)

$5.49

$

In Stock, only 3 left!

0

31

Snapper 7091504

SCREW, 1/4-28 x 1" Hex Head Cap, (Washer Face) GR 5
(Superseded to 7091504YP)

$4.49

$

In Stock, only 4 left!

0

32

Snapper 7072406

* SPRING, Torsional Brake Return
(Superseded to 7072406YP)

$

$

Not available

33

Snapper 7061017

GREASE, Transmission (Use 2 oz. Maximum)
(Superseded to 7061017YP)

$

$

Not available

34

Snapper 7032392

TOOL, Smooth Start Clutch (Recommended for Rubber Disc replacement and Drive Disc adjustment)
