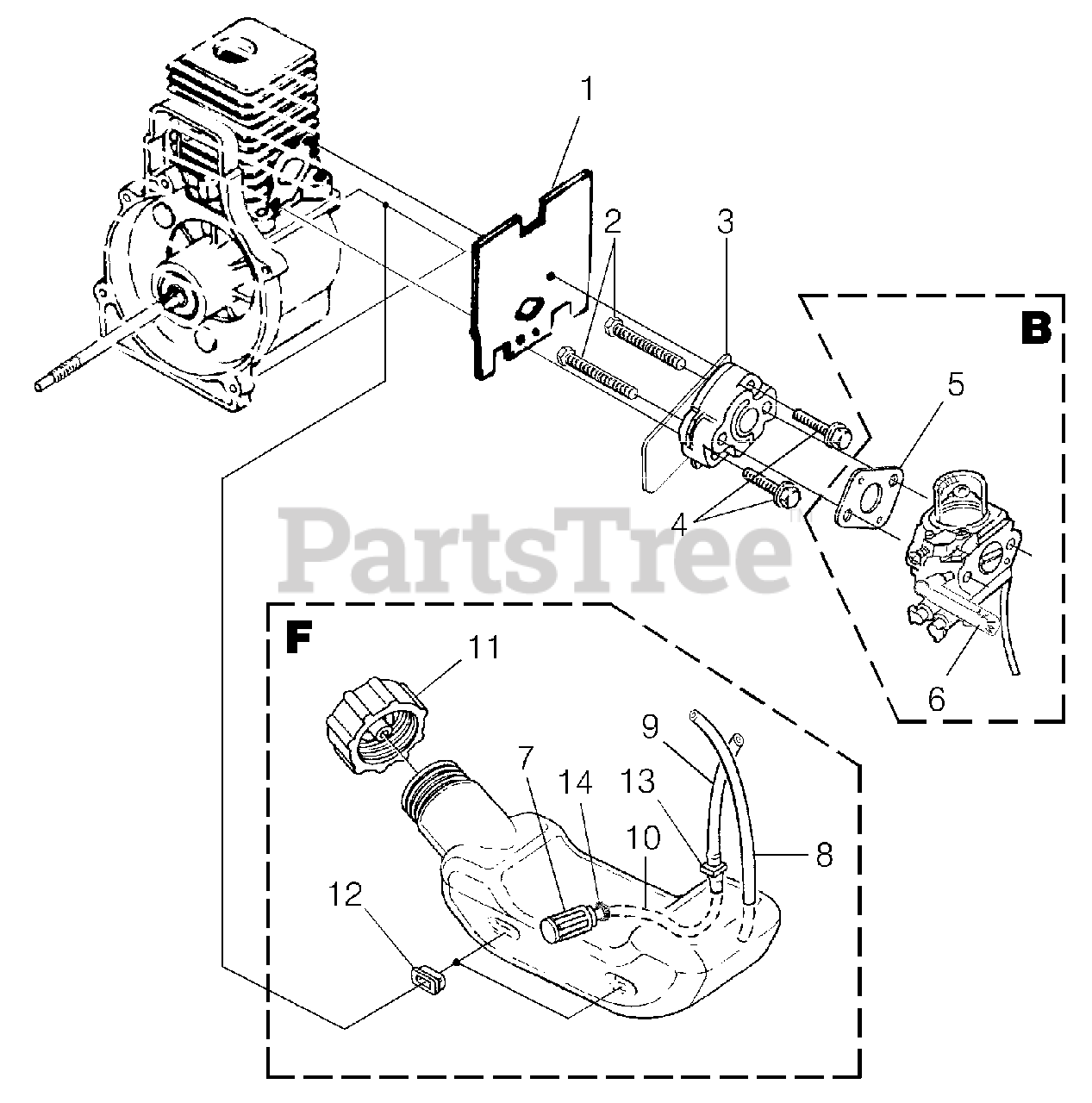

C 300 (UT-20775) - Homelite String Trimmer Carburetor - Fuel Tank Parts Diagram

String Trimmer

Carburetor - Fuel Tank Parts Diagram

  • Title

1

Homelite UP04308

GASKET-Heat Dam
(Superseded to 06900A)

$

$

Not available

2

Homelite UP04131

SCREW-Machine (10-24 X 2 1/4")

$

$

Not available

3

Homelite UP04348

HEAT DAM
(Superseded to 98768A)

$

$

Not available

4

Homelite UP04140

SCREW-Sems (10-24 X 1")
(Superseded to 093221)

Note: Torque Spec 35 - 45 in/lbs (4.0 - 5.1 Nm)

$

$

Not available

B

Homelite UP05110

CARBURETOR KIT
(Superseded to 984549001)

$59.99

$

Usually ships in 3-7 days

0

5

Homelite UP03916

GASKET-Carburetor
(Superseded to 98766A)

$

$

Not available

6

Homelite UP05810

LEVER-Choke-Auto Zip

$

$

Not available

F

Homelite UP05396

FUEL TANK ASSY.
(Superseded to UP05396A)

$

$

Not available

7

Homelite UP03871

FILTER-Fuel
(Superseded to PS03380)

$

$

Not available

8

Homelite UP04293

TUBING-Rubber
(Superseded to 0143918)

$

$

Not available

9

Homelite UP04292

TUBING-Rubber
(Superseded to 0143910)

$1.99

$

In Stock, Qty 5

0

10

Homelite UP04715

TUBING-Rubber
(Superseded to 9477213)

$

$

Not available

11

Homelite UP00106

FUEL CAP
(Superseded to 300758006)

$

$

Not available

12

Homelite UP03501

BUMPER-Rubber
(Superseded to 98792)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite UP04310

FITTING-Inline
(Superseded to 985304001)

$1.99

$

In Stock, Qty 6

0

14

Homelite UP03913

CLAMP
(Superseded to 98268)

$1.99

$

In Stock, Qty 6

0
