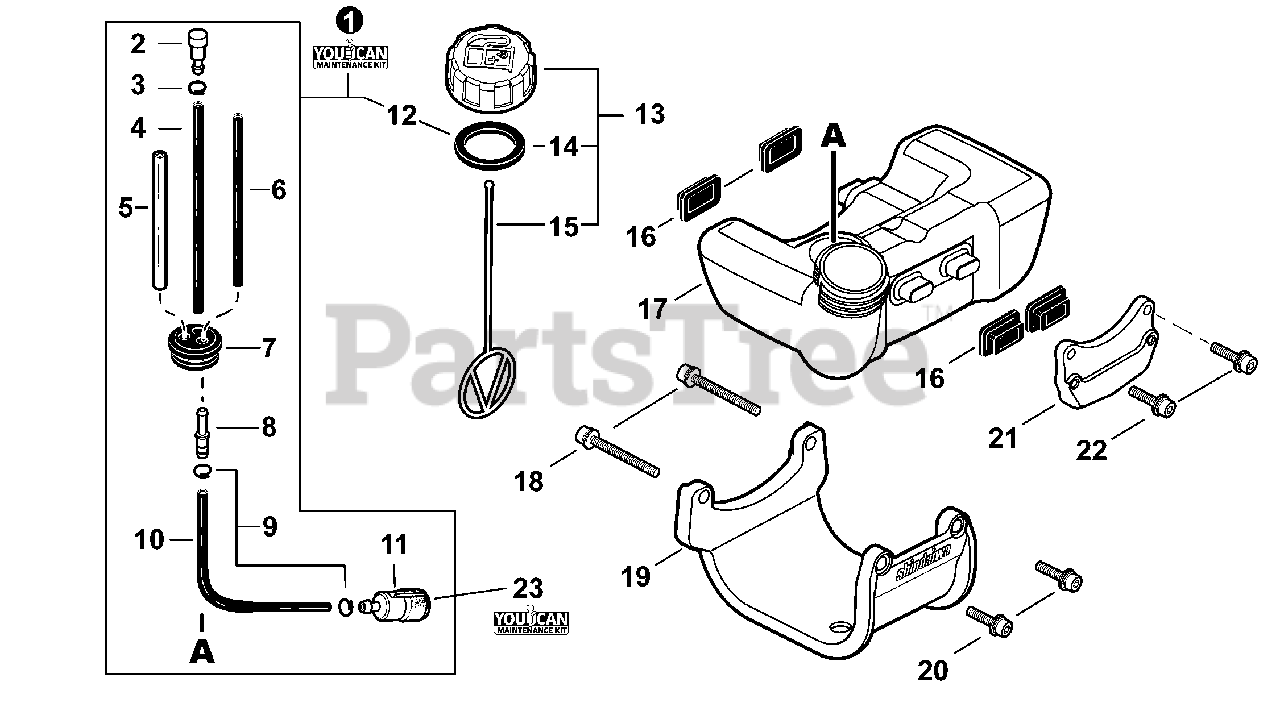

C 282 - Shindaiwa Brush Cutter (SN: T75014001001 - T75014999999) FUEL SYSTEM Parts Diagram

Brush Cutter

FUEL SYSTEM Parts Diagram

  • Title

1

Echo 84009Y

FUEL SYSTEM KIT - YOUCANT

Note: Includes Items 2-12

$35.99

$

In Stock, only 1 left!

0

2

Echo A356000040

VENT ASSY

$6.99

$

In Stock, Qty 20+

0

3

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

4

Echo V471000110

PIPE 3×6×115 BLACK
(Superseded to V471000111)

$2.49

$

In Stock, Qty 20+

0

5

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

$2.99

$

In Stock, Qty 20+

0

6

Echo V471003590

PIPE, FUEL 3×5×78 BLACK
(Superseded to V471005630)

$3.49

$

In Stock, only 1 left!

0

7

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V490000500

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

10

Echo V470001970

PIPE, FUEL 3×6×120 BLACK

$5.99

$

In Stock, only 1 left!

0

11

Echo A369000440

FILTER, FUEL

$6.99

$

In Stock, Qty 20+

0

12

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

13

Echo P021041930

CAP ASSY, FUEL

Note: Includes Item 14-15

$5.99

$

In Stock, only 4 left!

0

14

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

15

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

16

Echo V420002220

CUSHION, FUEL TANK

$0.99

$

In Stock, Qty 7

0

17

Echo A350001990

TANK, FUEL

$35.99

$

Usually ships in 2-4 days

0

18

Echo V203000520

BOLT M5×40

$1.99

$

In Stock, only 1 left!

0

19

Echo A175000170

GUARD, PLASTIC FUEL TANK

$7.99

$

Usually ships in 2-4 days

0

20

Echo V203000351

BOLT 5×20

$0.99

$

In Stock, Qty 12

0

21

Echo A393000170

BRACKET, METAL FUEL TANK

$8.99

$

Usually ships in 2-4 days

0

22

Echo V203000760

BOLT, ADHESIVE M5×20

$1.99

$

Usually ships in 2-4 days

0

23

Echo 84017Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$22.99

$

Usually ships in 2-4 days

0
