C 282 - Shindaiwa Brush Cutter (SN: T75014001001 - T75014999999) FAN COVER Parts Diagram

Brush Cutter

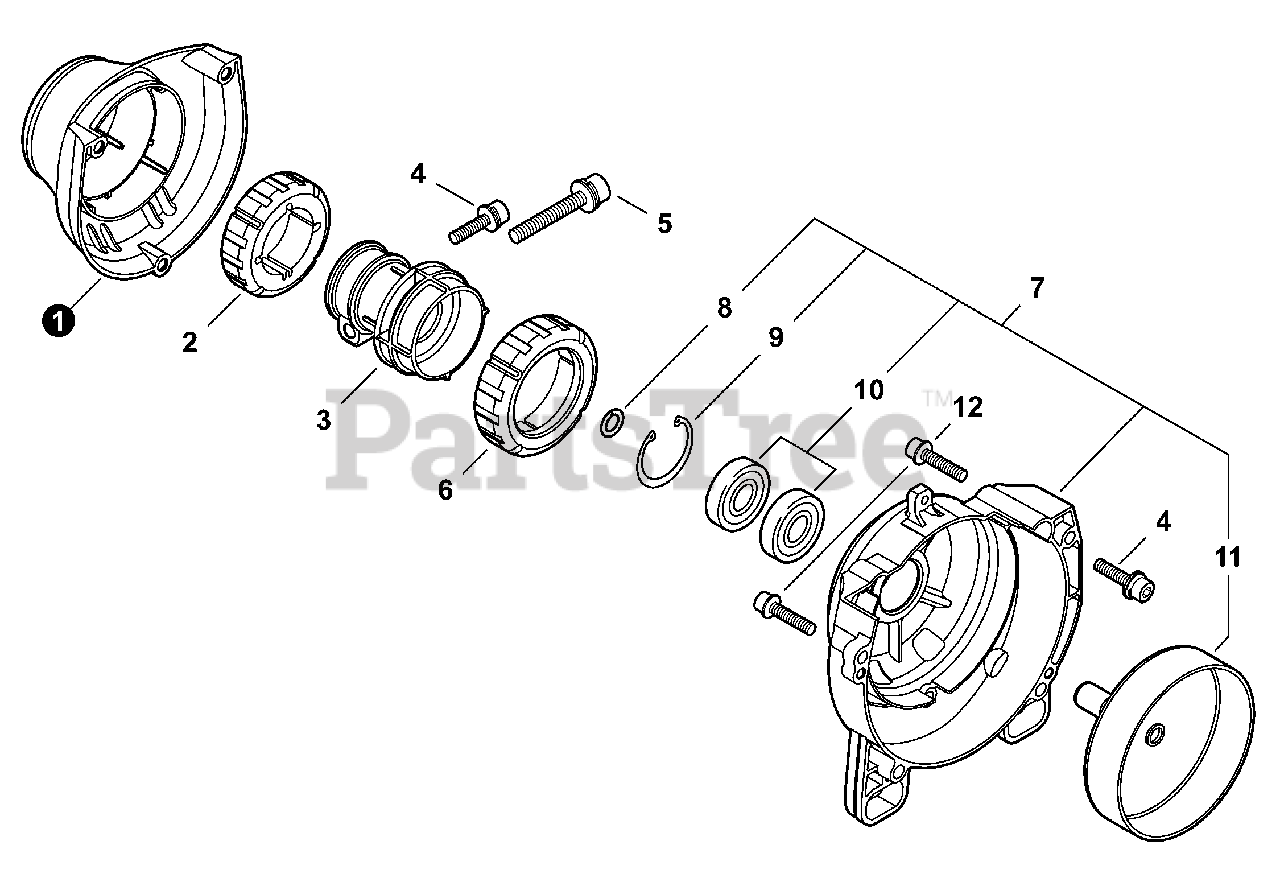

FAN COVER Parts Diagram

  • Title
1

Echo A575000560

COVER, CUSHION

$36.99

$

Usually ships in 2-4 days

0

2

Echo V423000040

HOLDER, FRONT CUSHION

$2.99

$

In Stock, only 1 left!

0

3

Echo A575000270

CUSHION

$24.99

$

Usually ships in 2-4 days

0

4

Echo V203000591

BOLT 5×16
(Superseded to V203000591)

$0.99

$

In Stock, Qty 15

0

5

Echo V204000411

BOLT M6×28
(Superseded to V204000410)

$

$

Not available

6

Echo V423000050

HOLDER, REAR CUSHION

$2.99

$

In Stock, only 1 left!

0

7

Echo P021040411

COVER ASSY, FAN

Note: Includes Items 8-11

$85.99

$

Usually ships in 2-4 days

0

8

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

9

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 13

0

10

Echo 9400236001

BEARING, BALL 6001 DDU C3

$7.49

$

In Stock, only 2 left!

0

11

Echo A556001670

DRUM, CLUTCH

$34.99

$

In Stock, Qty 13

0

12

Echo V203000351

BOLT 5×20

$0.99

$

In Stock, Qty 12

0
