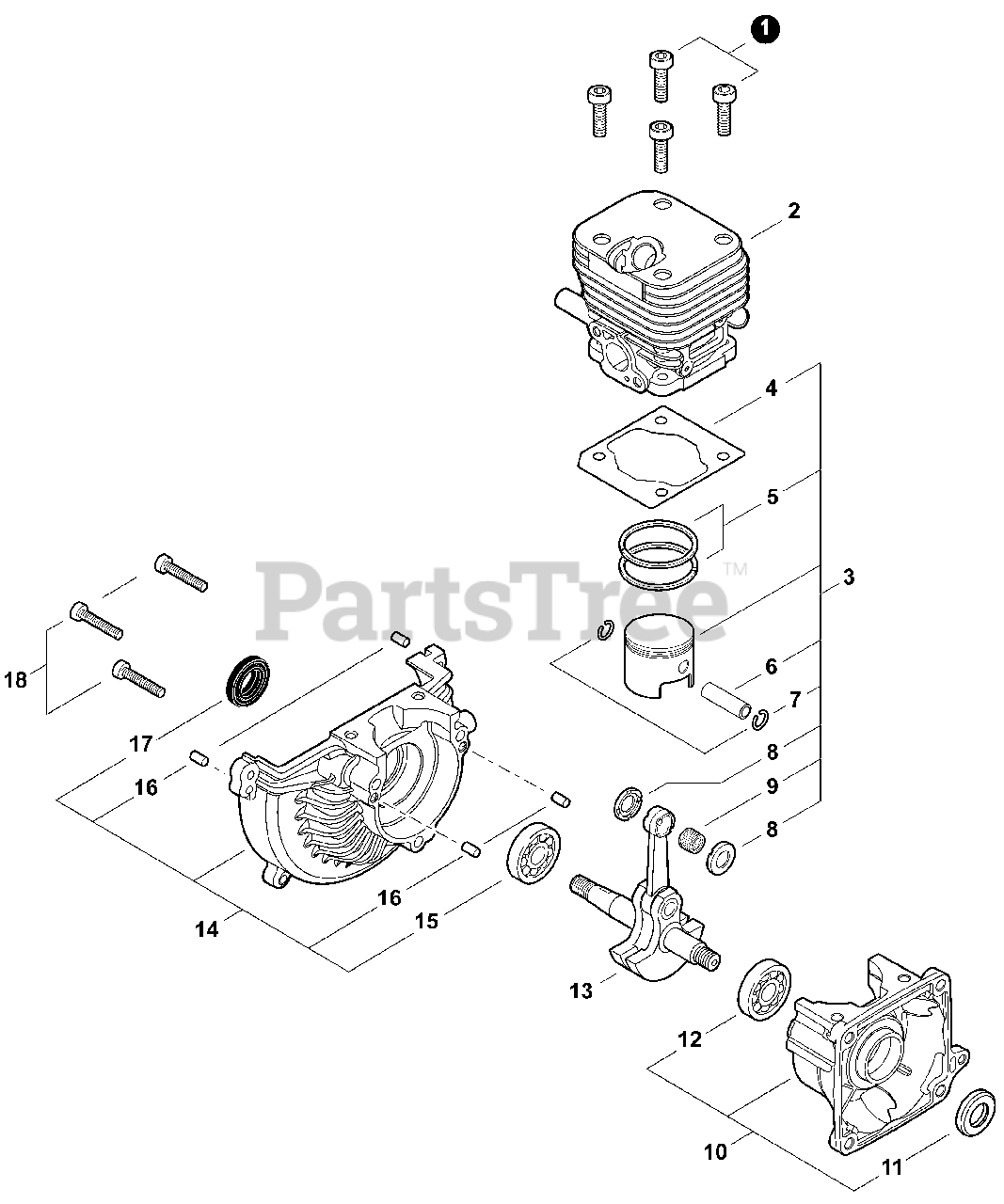

C 282 - Shindaiwa Brush Cutter (SN: T75014001001 - T75014999999) ENGINE Parts Diagram

Brush Cutter

ENGINE Parts Diagram

  • Title

1

Echo 90010505016

BOLT 5×16

$1.49

$

In Stock, Qty 6

0

2

Echo A130001280

CYLINDER ASSY

$107.99

$

In Stock, Qty 7

0

3

Echo P021045970

PISTON KIT

Note: Includes Items 4-9

$53.99

$

In Stock, Qty 10

0

4

Echo V100000440

GASKET, CYLINDER

$1.99

$

In Stock, Qty 7

0

5

Echo A101000340

RING, PISTON

$6.49

$

In Stock, only 2 left!

0

6

Echo V607000020

PIN, PISTON

$4.49

$

Usually ships in 2-4 days

0

7

Echo V580000090

RING, SNAP

$5.49

$

In Stock, only 2 left!

0

8

Echo V392000020

WASHER, THRUST 9

$2.49

$

In Stock, Qty 10

0

9

Echo V554000010

BEARING, NEEDLE 9

$6.49

$

In Stock, only 2 left!

0

10

Echo P021028130

CRANKCASE ASSY, S
(Superseded to P021028131)

Note: Includes Items 11-12

$44.99

$

Usually ships in 2-4 days

0

11

Echo V505000090

SEAL, OIL

$5.99

$

In Stock, Qty 20+

0

12

Echo V592000330

BEARING, BALL 6201 C3
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 9

0

13

Echo A011000800

CRANKSHAFT

$99.99

$

Usually ships in 2-4 days

0

14

Echo P021028140

CRANKCASE ASSY, M

Note: Includes Items 15-17

$39.99

$

In Stock, Qty 5

0

15

Echo V592000330

BEARING, BALL 6201 C3
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 9

0

16

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

17

Echo V505000090

SEAL, OIL

$5.99

$

In Stock, Qty 20+

0

18

Echo 90010505025

BOLT 5×25

$1.49

$

In Stock, Qty 15

0
