C 282 - Shindaiwa Brush Cutter (SN: T10011001001 - T10011999999) THROTTLE CONTROL Parts Diagram

Brush Cutter

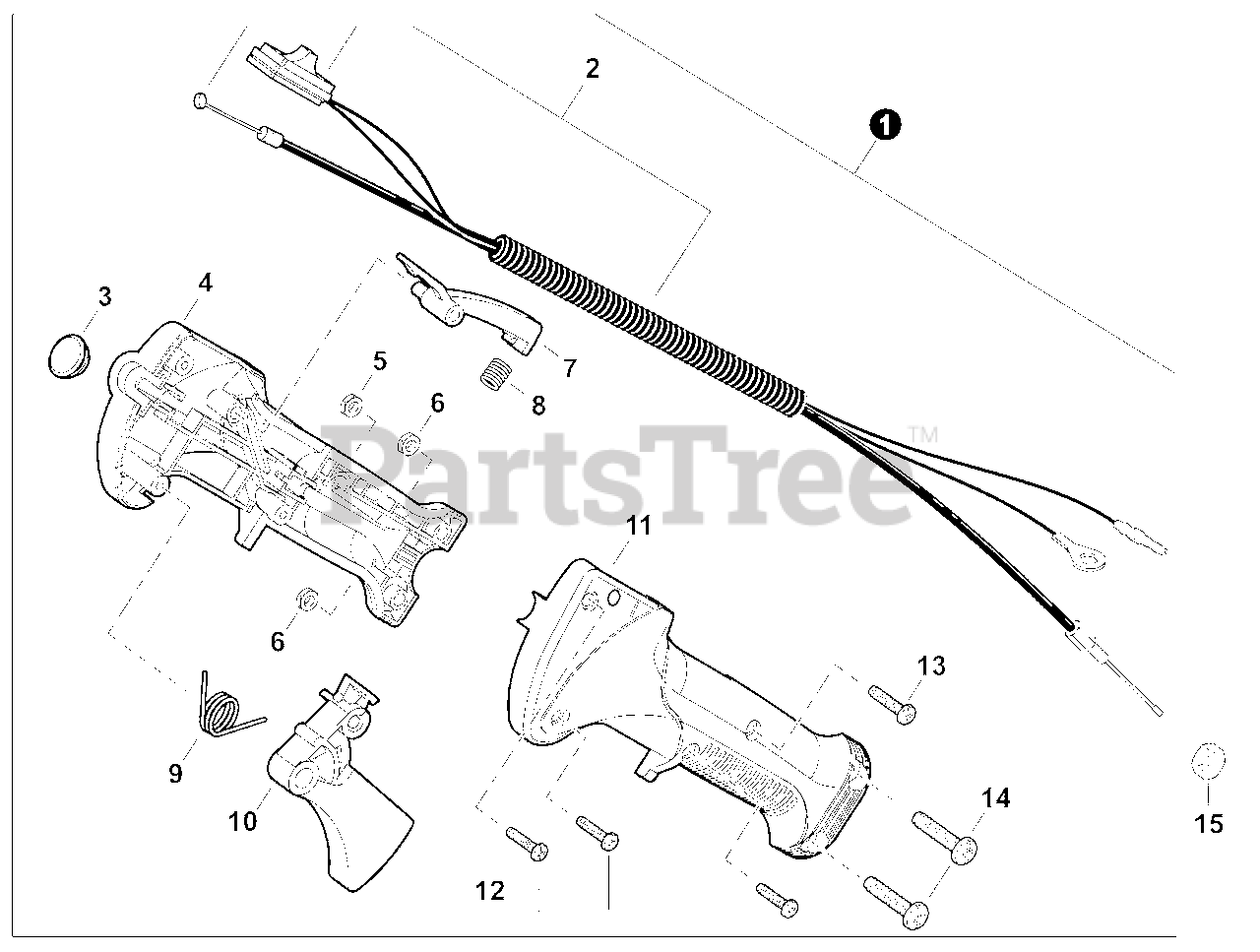

THROTTLE CONTROL Parts Diagram

  • Title

1

Echo C044001180

THROTTLE CONTROL ASSY
(Superseded to C044001181)

Note: Includes ITEMS 2-14

$52.99

$

Usually ships in 2-4 days

0

2

Echo V043000630

CABLE ASSY, CONTROL

$51.99

$

Usually ships in 2-4 days

0

3

Echo V162000410

PLUG, RUBBER

$2.49

$

In Stock, only 4 left!

0

4

Echo C412000430

CONTROL HANDLE - RIGHT

$19.99

$

In Stock, only 1 left!

0

5

Echo V262000100

NUT M4

$0.99

$

In Stock, Qty 20+

0

6

Echo 9201705000

NUT M5

$0.99

$

In Stock, Qty 13

0

7

Echo C460000240

LOCKOUT, THROTTLE
(Superseded to C460000241)

$1.99

$

In Stock, only 1 left!

0

8

Echo V450001020

SPRING, COMPRESSION

$0.99

$

In Stock, Qty 9

0

9

Echo V452000690

SPRING, TORSION

$0.99

$

In Stock, Qty 9

0

10

Echo C450000580

TRIGGER, THROTTLE
(Superseded to C450000581)

$3.99

$

Usually ships in 2-4 days

0

11

Echo C412000410

CONTROL HANDLE - LEFT
(Superseded to P021044940)

$20.99

$

In Stock, only 1 left!

0

12

Echo V252000360

SCREW, TAPPING 4×16

$0.99

$

Usually ships in 2-4 days

0

13

Echo V252000090

SCREW M4×23

$0.99

$

In Stock, Qty 10

0

14

Echo 9133505022

SCREW M5×22

$0.99

$

In Stock, Qty 9

0

15

Echo 90050200006

NUT M6

$0.99

$

In Stock, Qty 8

0
