C 282 - Shindaiwa Brush Cutter (SN: T09912001001 - T09912999999) GEAR CASE Parts Diagram

Brush Cutter

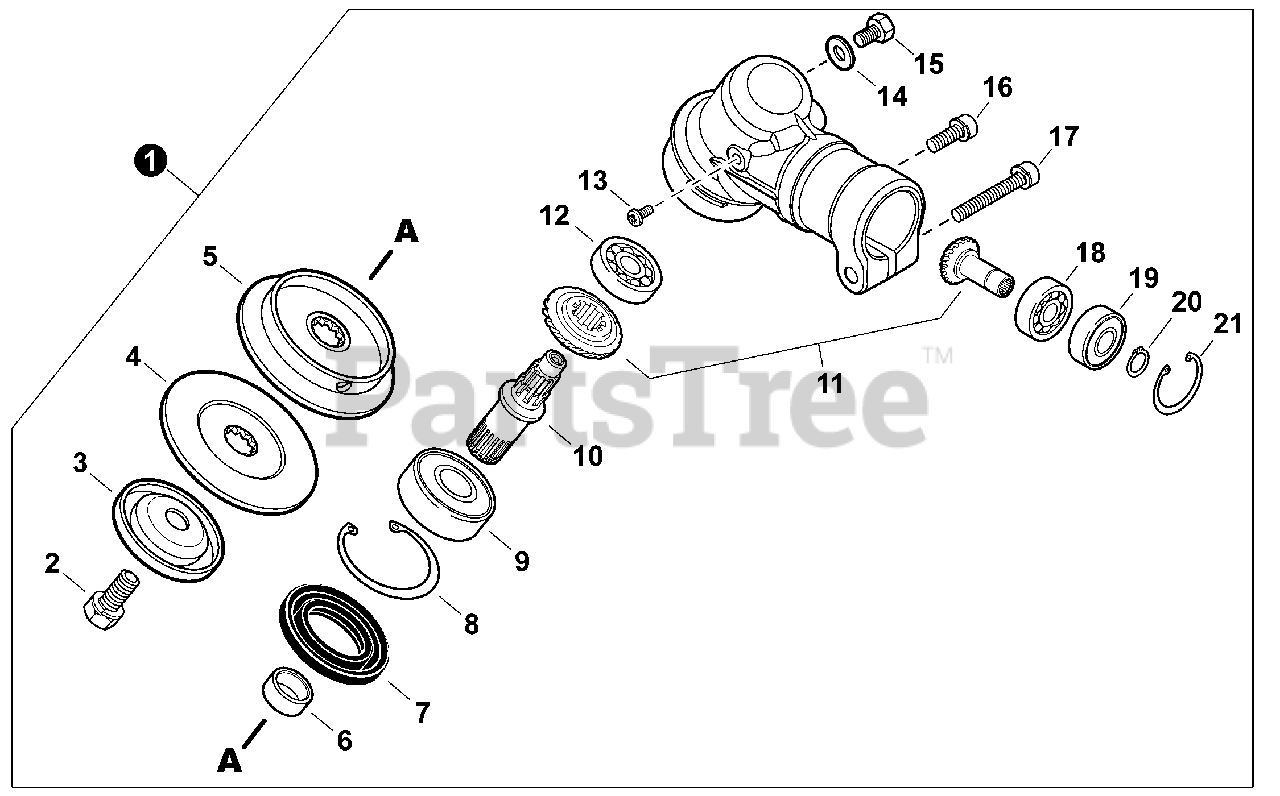

GEAR CASE Parts Diagram

  • Title

1

Echo P021027350

GEAR CASE ASSY

Note: Includes ITEMS 2-21

$226.99

$

Usually ships in 2-4 days

0

2

Echo V205000940

BOLT 8

$3.99

$

In Stock, only 1 left!

0

3

Echo C535000730

GUARD, BOLT

$4.99

$

Usually ships in 2-4 days

0

4

Echo C535000720

PLATE, ADAPTOR - LOWER

$34.99

$

Usually ships in 2-4 days

0

5

Echo C535000710

PLATE, ADAPTOR - UPPER

$40.99

$

Usually ships in 2-4 days

0

6

Echo V356000500

SPACER

$3.99

$

In Stock, Qty 5

0

7

Echo V510000000

SEAL, OIL

$4.49

$

In Stock, only 1 left!

0

8

Echo 9242432000

RING, SNAP Ø32

$0.99

$

In Stock, Qty 5

0

9

Echo 90081006201

BEARING, BALL 6201

$6.99

$

Usually ships in 2-4 days

0

10

Echo C534000580

SHAFT, GEAR

$30.99

$

Usually ships in 2-4 days

0

11

Echo P100000010

GEAR SET

$66.99

$

In Stock, only 2 left!

0

12

Echo 90080000609

BEARING, BALL 609

$9.99

$

In Stock, Qty 11

0

13

Echo 9157804006

SCREW M4×6

$0.99

$

In Stock, Qty 16

0

14

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 16

0

15

Echo 9103006010

BOLT M6×10

$0.99

$

In Stock, only 3 left!

0

16

Echo 90010505010

BOLT M5×10

$1.49

$

In Stock, Qty 10

0

17

Echo V204000450

BOLT M6×40

$1.99

$

In Stock, only 3 left!

0

18

Echo 90080006000

BEARING, BALL 6000

$10.99

$

Usually ships in 2-4 days

0

19

Echo 9404406000

BEARING, BALL 6000ZZ

$9.99

$

In Stock, Qty 14

0

20

Echo 9242310000

RING, SNAP Ø10

$0.99

$

Usually ships in 2-4 days

0

21

Echo 9242426000

RING, SNAP Ø26

$0.99

$

In Stock, Qty 6

0
