C 282 - Shindaiwa Brush Cutter (Original Version) Carburetor Parts Diagram

Brush Cutter

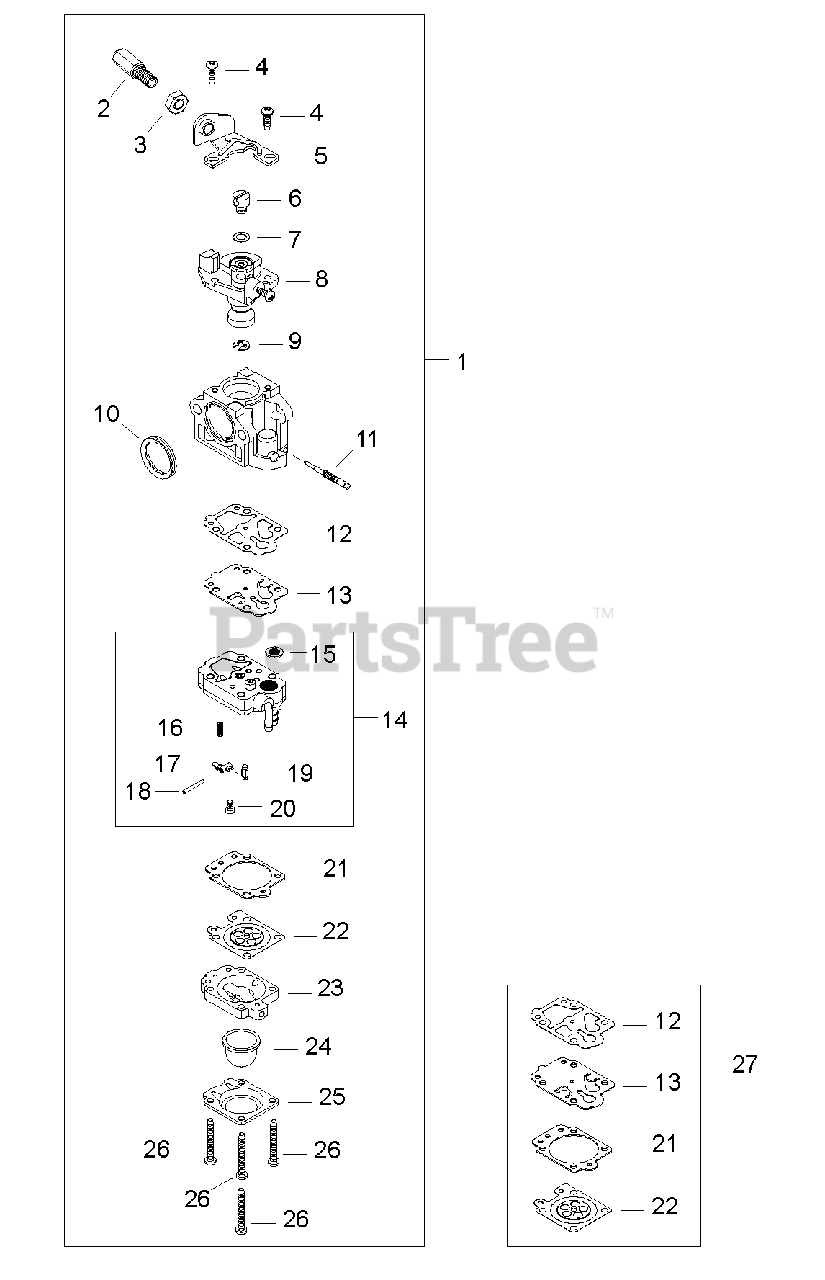

Carburetor Parts Diagram

  • Title

1

Echo 62128-81010

CARBURETOR WYK
(Superseded to A021002350)

$73.99

$

In Stock, Qty 10

0

2

Echo 20123-81120

THROTTLE CABLE ADJUSTER
(Superseded to 62902-83310)

$16.99

$

In Stock, only 1 left!

0

3

Echo 20036-81120

NUT
(Superseded to 12315356430)

$1.49

$

In Stock, only 3 left!

0

4

Echo 70097-81290

SCREW
(Superseded to 12311440630)

$2.49

$

In Stock, only 3 left!

0

5

Echo 20089-81130

BRACKET, CABLE
(Superseded to 12312854230)

$5.49

$

Usually ships in 2-4 days

0

6

Echo 72933-81450

SWIVEL
(Superseded to 12317245130)

$1.99

$

Usually ships in 2-4 days

0

7

Echo 20089-81185

WASHER
(Superseded to 12314954230)

$0.99

$

In Stock, only 1 left!

0

8

Echo 62128-81310

THROTTLE VALVE ASSY
(Superseded to P003004130)

$54.99

$

Usually ships in 2-4 days

0

9

Echo 20036-81195

RING, RETAINING
(Superseded to 12317307930)

$1.49

$

In Stock, only 1 left!

0

10

Echo 72933-81250

SEAL
(Superseded to 12314312110)

$4.49

$

In Stock, only 3 left!

0

11

Echo 62100-81320

NEEDLE - HIGH SPEED

$19.99

$

Usually ships in 2-4 days

0

12

Echo 70097-81310

GASKET, PUMP
(Superseded to 12312540630)

$4.99

$

In Stock, only 1 left!

0

13

Echo 70097-81320

DIAPHRAGM, PUMP
(Superseded to 12311240630)

$12.99

$

In Stock, only 1 left!

0

14

Echo 20016-81410

PUMP BODY ASSY
(Superseded to P003000440)

$18.99

$

In Stock, Qty 17

0

15

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 19

0

16

Echo 20016-81270

SPRING, METERING LEVER
(Superseded to P003000450)

$0.99

$

Usually ships in 2-4 days

0

17

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

18

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

19

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

20

Echo 20016-81450

SCREW, METERING LEVER PIN
(Superseded to 12313905560)

$0.99

$

Usually ships in 2-4 days

0

21

Echo 20016-81280

GASKET, METERING
(Superseded to 12314005560)

$3.99

$

In Stock, only 2 left!

0

22

Echo 37145-81320

DIAPHRAGM, METERING
(Superseded to P003001850)

$7.99

$

In Stock, only 1 left!

0

23

Echo 20016-81420

BASE, PURGE
(Superseded to 12318005560)

$7.49

$

In Stock, only 1 left!

0

24

Echo 20036-81670

BULB, PURGE
(Superseded to 12318140630)

$5.49

$

In Stock, Qty 20+

0

25

Echo 20016-81510

RETAINER, PURGE BULB
(Superseded to 12314205560)

$4.49

$

In Stock, Qty 20+

0

26

Echo 20016-81140

SCREW, PUMP COVER
(Superseded to 12311005560)

$2.99

$

In Stock, Qty 20+

0

27

Echo 60141-98400

DIAPHRAGM/GASKET KIT
(Superseded to V109000190)

$43.99

$

Usually ships in 2-4 days

0
