C 2812523BVE (7800365) - Snapper 28" Rear-Engine Riding Mower, 12.5hp, CARB GEAR SHIFTER ASSEMBLY Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp, CARB

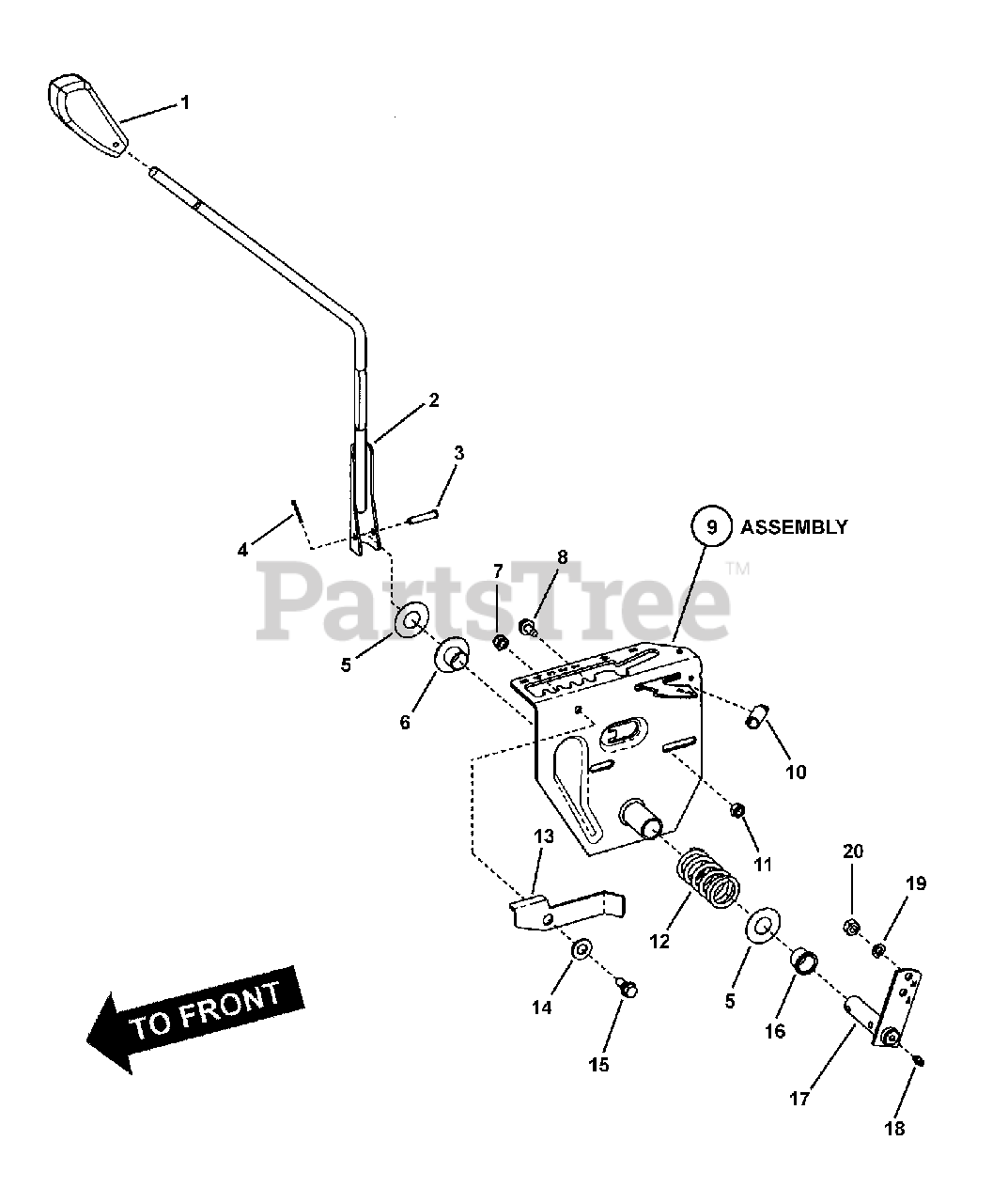

GEAR SHIFTER ASSEMBLY Parts Diagram

  • Title

1

Snapper 7023656

GRIP, Shift Handle
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

2

Snapper 7059212

WELDMENT, Shift Handle
(Superseded to 7059212DYP)

$56.99

$

In Stock, Qty 20+

0

3

Snapper 7023914

PIN, 1/4 x 1-3/4" Tapered Clevis
(Superseded to 7023914YP)

$

$

Not available

4

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: or 7090037

$3.99

$

In Stock, Qty 20+

0

5

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7019245

BUSHING, 3/4 x 1.62 Flange (Nylon)
(Superseded to 7019245YP)

$4.49

$

In Stock, Qty 8

0

7

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

9

Snapper 7058763

* ASSEMBLY, Speed Adjustment Latch
(Superseded to 7600139YP)

$140.99

$

Usually ships in 2-12 days

0

10

Snapper 7026292

SPRING
(Superseded to 7026292YP)

Note: part of Speed Adjustment Latch Ass'y

$11.99

$

In Stock, only 4 left!

0

11

Snapper 7091511

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

Note: or 7090196

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7010754

SPRING, Shift Detent
(Superseded to 7010754YP)

$6.99

$

Usually ships in 2-12 days

0

13

Snapper 7073289

LEVER, Over-Ride
(Superseded to 7073289YP)

$7.49

$

Usually ships in 2-12 days

0

14

Snapper 7091595

WASHER, .47 x .92 x .065 Flat
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

15

Snapper 7015761

SHOULDER BOLT, 5/16-18
(Superseded to 703839)

$5.49

$

In Stock, only 3 left!

0

16

Snapper 7019246

BUSHING, 3/4 x I.O. Flange (Nylon)
(Superseded to 7019246YP)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7043201

WELDMENT, Arm, Shift Handle (w/grease ftg. Hole)
(Superseded to 7043201BMYP)

$51.99

$

In Stock, only 2 left!

0

18

Snapper 7010817

LUBE FITTING, 3/16" Press-In
(Superseded to 7010817SM)

Note: used with 7043201

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7091315

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7091297

NUT, 5/16-24 Hex, GR 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0
