C 2812523BVE (7800365) - Snapper 28" Rear-Engine Riding Mower, 12.5hp, CARB BLADE STOP PEDALS Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp, CARB

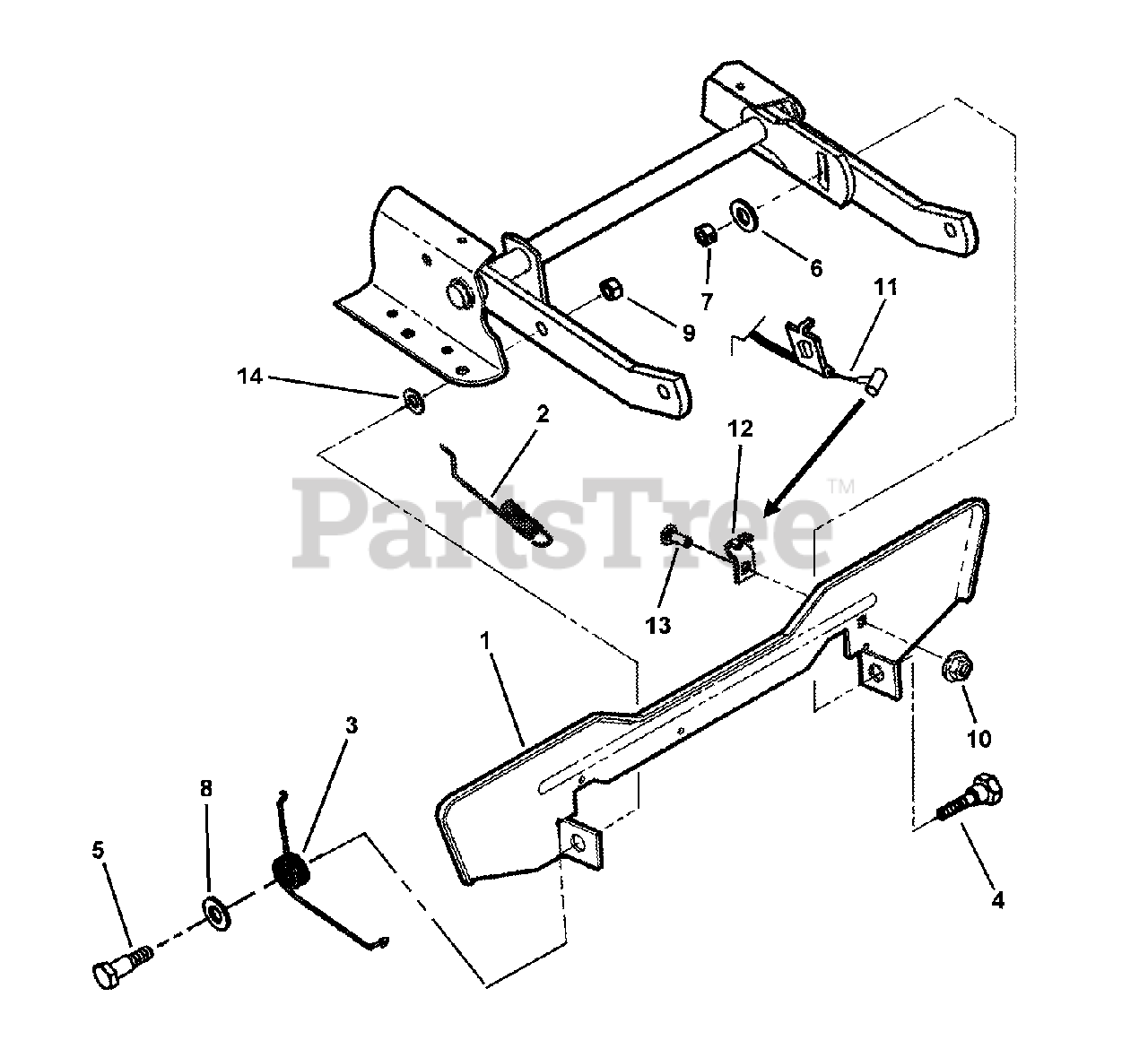

BLADE STOP PEDALS Parts Diagram

  • Title

1

Snapper 7073267

FOOT PEDAL, Blade Stop Control
(Superseded to 7073267YP)

$45.99

$

Usually ships in 2-12 days

0

2

Snapper 7074649

SPRING, Latching (.072 dia.)
(Superseded to 7074649YP)

$8.49

$

In Stock, only 1 left!

0

3

Snapper 7015448

SPRING, Pedal
(Superseded to 7015448YP)

$6.49

$

In Stock, only 1 left!

0

4

Snapper 7015495

SHOULDER BOLT, 3/8-24 w/Nylon Patch, GR 5
(Superseded to 7015495YP)

$

$

Not available

5

Snapper 7015446

SHOULDER BOLT, 3/8-24 x 9/16"
(Superseded to 7015446YP)

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 7032030

WASHER, Flat 13/32" ID x 1.25" x 1/8" Thick ZP
(Superseded to 7032030SM)

Note: or 7012063

$4.49

$

In Stock, only 1 left!

0

7

Snapper 7091630

NUT, 3/8-24 Hex, GR B
(Superseded to 703895)

Note: or 7090155

$4.49

$

In Stock, only 2 left!

0

8

Snapper 7091587

WASHER, 1/2" Flat SAE
(Superseded to 704123)

Note: or 7090520

$4.49

$

In Stock, only 3 left!

0

9

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

10

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, GR 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

11

Snapper 7073216

CABLE ASSEMBLY, No Mow in Reverse
(Superseded to 7073216YP)

$32.99

$

In Stock, only 3 left!

0

12

Snapper 7073217

CLIP, Cable
(Superseded to 7073217YP)

$5.99

$

In Stock, Qty 8

0

13

Snapper 7091530

BOLT, 1/4-20 x 3/4" Square Neck Carriage, GR 5
(Superseded to 7091530SM)

Note: or 7091776

$3.99

$

In Stock, only 3 left!

0

14

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
