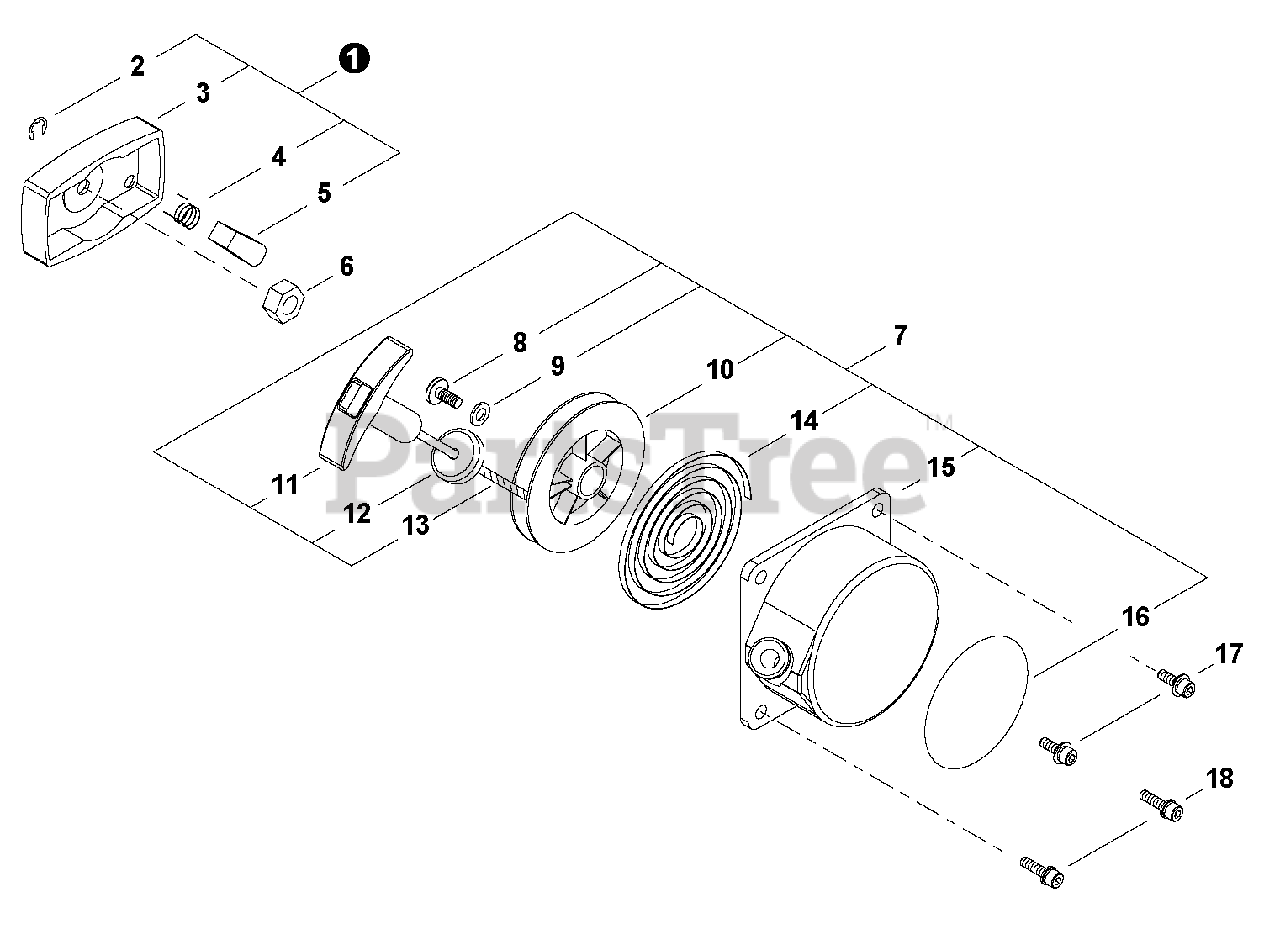

C 270 - Shindaiwa Brush Cutter (EMC Version) Recoil Starter Parts Diagram

Brush Cutter (EMC Version)

Recoil Starter Parts Diagram

  • Title

1

Echo A052000350

Pulley Assy, Starter

$7.99

$

In Stock, only 1 left!

0

2

Echo V583000140

E-Ring 4
(Superseded to P022002100)

$0.99

$

In Stock, Qty 7

0

3

Echo A520000130

Pulley, Starter

$14.99

$

Usually ships in 2-4 days

0

4

Echo V452000520

Spring, Return
(Superseded to 17723440630)

$3.49

$

In Stock, only 2 left!

0

5

Echo A514000080

Pawl, Starter
(Superseded to 17721840630)

$3.49

$

In Stock, Qty 8

0

6

Echo V265000160

Nut

$0.99

$

In Stock, only 2 left!

0

7

Echo A051001660

Starter Assy, Recoil

$33.99

$

Usually ships in 2-4 days

0

8

Echo V253000560

Screw 5
(Superseded to 17723640630)

$3.99

$

In Stock, Qty 14

0

9

Echo V303000150

Washer
(Superseded to P022022280)

$0.99

$

In Stock, Qty 6

0

10

Echo A506000230

Reel, Rope
(Superseded to 17721540630)

$9.99

$

In Stock, Qty 5

0

11

Echo A511000130

Grip, Starter
(Superseded to 17722844330)

$8.49

$

In Stock, only 1 left!

0

12

Echo A522000030

Damper

$1.99

$

In Stock, only 3 left!

0

13

Echo A509000130

Rope, Starter
(Superseded to 17722605960)

$6.49

$

Usually ships in 2-4 days

0

14

Echo A504000060

Spring, Recoil
(Superseded to 17722040630)

$14.99

$

In Stock, Qty 12

0

15

Echo A500000780

Case, Starter

$29.99

$

In Stock, only 4 left!

0

16

Echo X504002510

Label, Trade

$1.99

$

In Stock, only 3 left!

0

17

Echo 9111305016

Bolt

$1.99

$

In Stock, Qty 15

0

18

Echo V203000630

Bolt M5x25

$0.99

$

In Stock, Qty 20+

0
