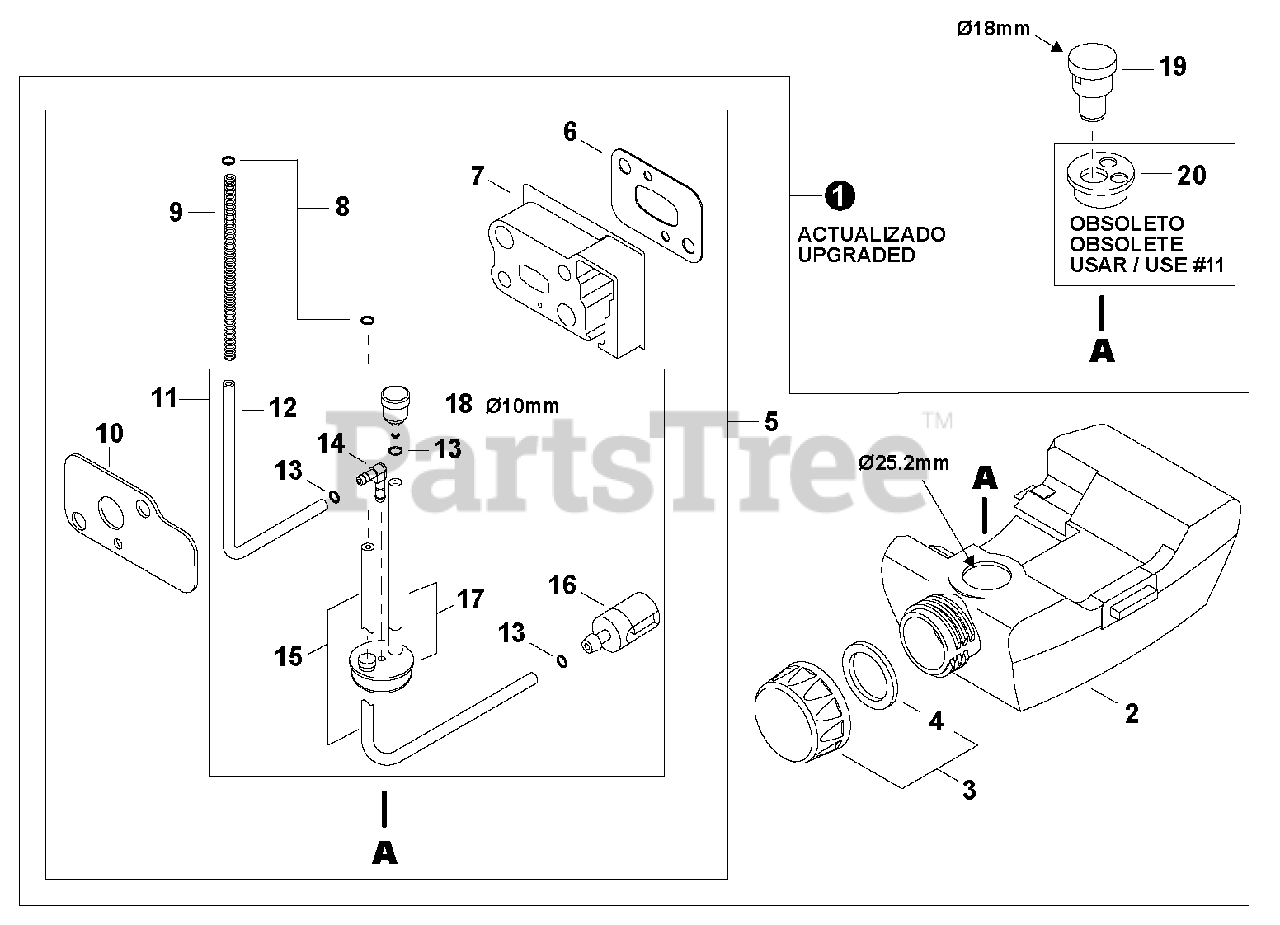

C 270 - Shindaiwa Brush Cutter (EMC Version) Fuel System S/N 5100001-9090444 Parts Diagram

Brush Cutter (EMC Version)

Fuel System S/N 5100001-9090444 Parts Diagram

  • Title

1

Echo 80221

Tank Kit, Fuel

$65.99

$

In Stock, only 1 left!

0

2

Echo A350001220

Tank, Fuel

$15.99

$

In Stock, only 2 left!

0

3

Echo A033000070

Cap Assy, Fuel

$3.99

$

In Stock, Qty 13

0

4

Echo V107000010

Gasket, Fuel Cap

$1.99

$

In Stock, Qty 20+

0

5

Echo P021030540

Fuel Pipe Kit W/gaskets
(Superseded to P021030541)

$50.99

$

Usually ships in 2-4 days

0

6

Echo V103000840

Gasket, Intake

$0.99

$

In Stock, Qty 5

0

7

Echo A200000590

Insulator
(Superseded to A200000591)

$11.99

$

In Stock, only 1 left!

0

8

Echo V490000500

Clip dia.6

$0.99

$

In Stock, Qty 19

0

9

Echo V451000840

Spring

$0.99

$

In Stock, Qty 7

0

10

Echo V103000890

Gasket, Carburetor

$1.99

$

Usually ships in 2-4 days

0

11

Echo P021039500

Pipe Kit, Fuel
(Superseded to P021039501)

$

$

Not available

12

Echo V471002580

Pipe, Fuel Return

$1.99

$

In Stock, Qty 20+

0

13

Echo V490000500

Clip dia.6

$0.99

$

In Stock, Qty 19

0

14

Echo V186000270

Connector, Pipe

$2.99

$

In Stock, Qty 17

0

15

Echo V471002570

Pipe, Fuel
(Superseded to V471002571)

$2.49

$

In Stock, Qty 20+

0

16

Echo 13120519831

Filter, Fuel
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

17

Echo V470001810

Grommet, Fuel
(Superseded to P021039500)

$

$

Not available

18

Echo A356000050

Vent Assy

$8.49

$

In Stock, only 2 left!

0

19

Echo A039000010

Vent Assy

$14.99

$

In Stock, only 1 left!

0

20

Echo P021039500

Grommet, Fuel Tank
(Superseded to P021039501)

$

$

Not available
