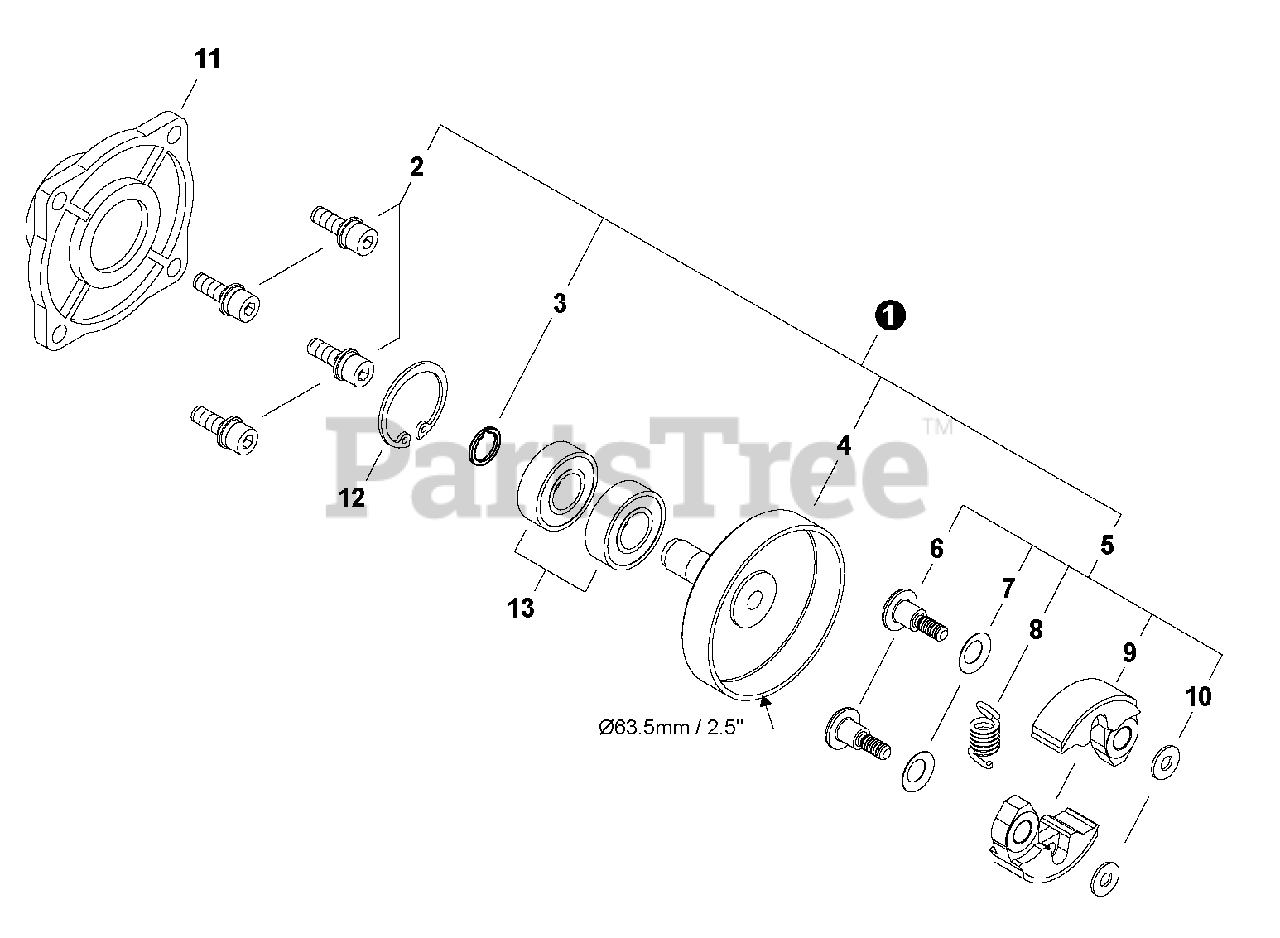

C 270 - Shindaiwa Brush Cutter (EMC Version) Clutch S/N 1103775-9099999, S/N 20005595-20030347 Parts Diagram

Brush Cutter (EMC Version)

Clutch S/N 1103775-9099999, S/N 20005595-20030347 Parts Diagram

  • Title
1

Echo P021033340

Clutch Kit

$67.99

$

Usually ships in 2-4 days

0

2

Echo 9114205016

Bolt M5x16

$0.99

$

In Stock, only 1 left!

0

3

Echo 90070600012

Ring, Snap dia.12

$1.49

$

In Stock, Qty 12

0

4

Echo A556000760

Drum, Clutch

$42.99

$

In Stock, only 2 left!

0

5

Echo A056000410

Dlutch Assy

$27.99

$

In Stock, only 2 left!

0

6

Echo A557000080

Bolt, Clutch

$2.49

$

Usually ships in 2-4 days

0

7

Echo V346000040

Washer, Spring

$0.99

$

Usually ships in 2-4 days

0

8

Echo A566000110

Spring, Clutch

$4.49

$

In Stock, Qty 20+

0

9

Echo A553000120

Shoe, Clutch

$11.99

$

In Stock, only 1 left!

0

10

Echo V304000150

Washer 6mm

$0.99

$

Usually ships in 2-4 days

0

11

Echo A570000190

Case, Clutch

$14.99

$

Usually ships in 2-4 days

0

12

Echo 9242428000

Ring, Snap dia.28
(Superseded to 90070200028)

$1.49

$

In Stock, Qty 15

0

13

Echo 9400236001

Bearing, Ball 6001 DDU C3

$7.49

$

Usually ships in 2-4 days

0
