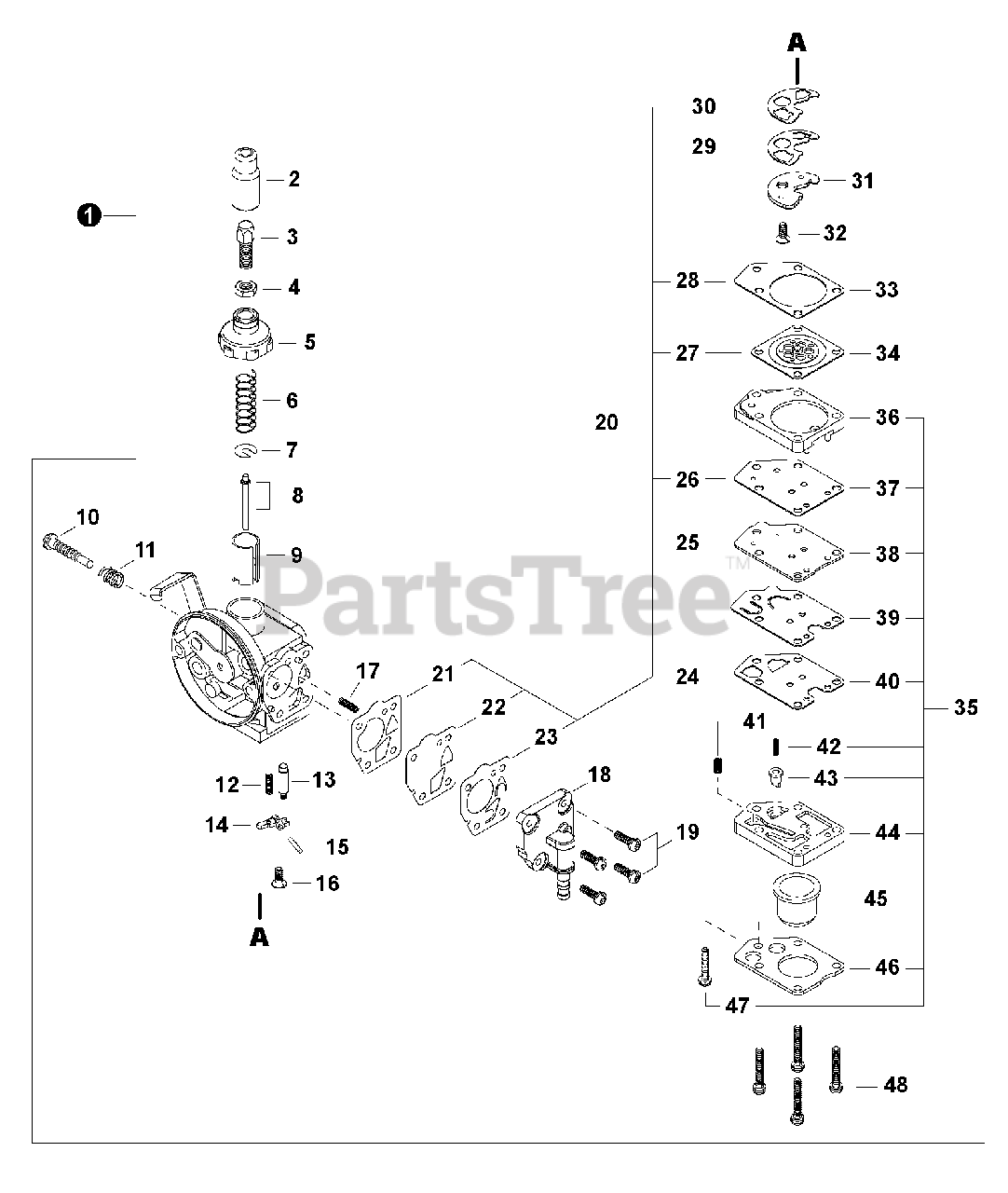

C 270 - Shindaiwa Brush Cutter (EMC Version) Carburetor S/N 5100001-0101216 Parts Diagram

Brush Cutter (EMC Version)

Carburetor S/N 5100001-0101216 Parts Diagram

  • Title
1

Echo A021002360

Carburetor - DPV10W-18B

$85.99

$

Usually ships in 2-4 days

0

2

$1.49

$

In Stock, Qty 20+

0

3

Echo 12415813411

Adjuster, Cable

$8.49

$

In Stock, only 1 left!

0

4

Echo 12411105810

Nut, Lock

$3.49

$

In Stock, only 2 left!

0

5

Echo 12411346630

Cap, Carburetor

$6.49

$

In Stock, only 1 left!

0

6

$1.99

$

Usually ships in 2-4 days

0

7

Echo 12411505530

Washer, Spring Support

$1.99

$

In Stock, Qty 12

0

8

Echo P004002920

Needle, Jet

$11.99

$

Usually ships in 2-4 days

0

9

Echo P004002930

Valve, Throttle

$30.99

$

In Stock, only 2 left!

0

10

Echo 12415905530

Screw, Idle Adjust

$2.49

$

In Stock, only 4 left!

0

11

$2.49

$

In Stock, only 1 left!

0

12

Echo 12433112710

Spring, Tension
(Superseded to Discontinued)

$

$

Not available

13

Echo P004000930

Valve, Inlet Needle

$10.99

$

In Stock, only 4 left!

0

14

Echo 12432121330

Lever, Metering

$4.49

$

Usually ships in 2-4 days

0

15

Echo 12433221330

Pin, Metering Lever

$1.99

$

In Stock, only 3 left!

0

16

Echo P004001350

Screw M3x8

$0.99

$

Usually ships in 2-4 days

0

17

Echo 12436721330

Spring, Coil

$1.49

$

In Stock, Qty 6

0

18

Echo P004003230

Pump Body

$18.99

$

In Stock, Qty 7

0

19

$0.99

$

In Stock, Qty 20+

0

20

Echo P050009190

Gasket / Diaphragm Kit

$62.99

$

In Stock, only 1 left!

0

21

Echo 12436321330

Gasket, Diaphragm

$1.99

$

In Stock, Qty 7

0

22

Echo P004001430

Diaphragm, Metering

$5.99

$

In Stock, only 3 left!

0

23

Echo P004002550

Valve, Pump

$13.99

$

Usually ships in 2-4 days

0

24

Echo P004002530

Valve, Check

$10.99

$

Usually ships in 2-4 days

0

25

$2.49

$

Usually ships in 2-4 days

0

26

$2.49

$

In Stock, only 2 left!

0

27

Echo 12434149930

Diaphragm, Metering

$23.99

$

In Stock, only 2 left!

0

28

Echo 12435849930

Gasket, Metering Diaphragm

$1.49

$

In Stock, Qty 7

0

29

Echo P004002500

Valve, Check

$7.99

$

Usually ships in 2-4 days

0

30

Echo P004002510

Packing
(Superseded to 12437512710)

$6.99

$

Usually ships in 2-4 days

0

31

$15.99

$

Usually ships in 2-4 days

0

32

Echo P004001350

Screw M3x8

$0.99

$

Usually ships in 2-4 days

0

33

Echo 12435849930

Gasket, Metering Diaphragm

$1.49

$

In Stock, Qty 7

0

34

Echo 12434149930

Diaphragm, Metering

$23.99

$

In Stock, only 2 left!

0

35

Echo P004002520

Purge Pump Kit

$43.99

$

Usually ships in 2-4 days

0

36

Echo 12437949930

Body, Purge

$20.99

$

Usually ships in 2-4 days

0

37

$2.49

$

In Stock, only 2 left!

0

38

$2.49

$

Usually ships in 2-4 days

0

39

Echo 12436049930

Plate, Pump

$3.49

$

Usually ships in 2-4 days

0

40

Echo P004002530

Valve, Check

$10.99

$

Usually ships in 2-4 days

0

41

$1.99

$

In Stock, Qty 5

0

42

$2.49

$

In Stock, only 2 left!

0

43

Echo P004002590

Valve, Check

$18.99

$

Usually ships in 2-4 days

0

44

Echo P004002570

Body Assy, Purge

$7.49

$

In Stock, only 1 left!

0

45

Echo 12438012710

Bulb, Purge

$9.99

$

In Stock, only 1 left!

0

46

Echo 12434249930

Retainer, Purge Bulb

$3.49

$

Usually ships in 2-4 days

0

47

$0.99

$

Usually ships in 2-4 days

0

48

Echo 90024103020

Screw 3x20

$0.99

$

Usually ships in 2-4 days

0
