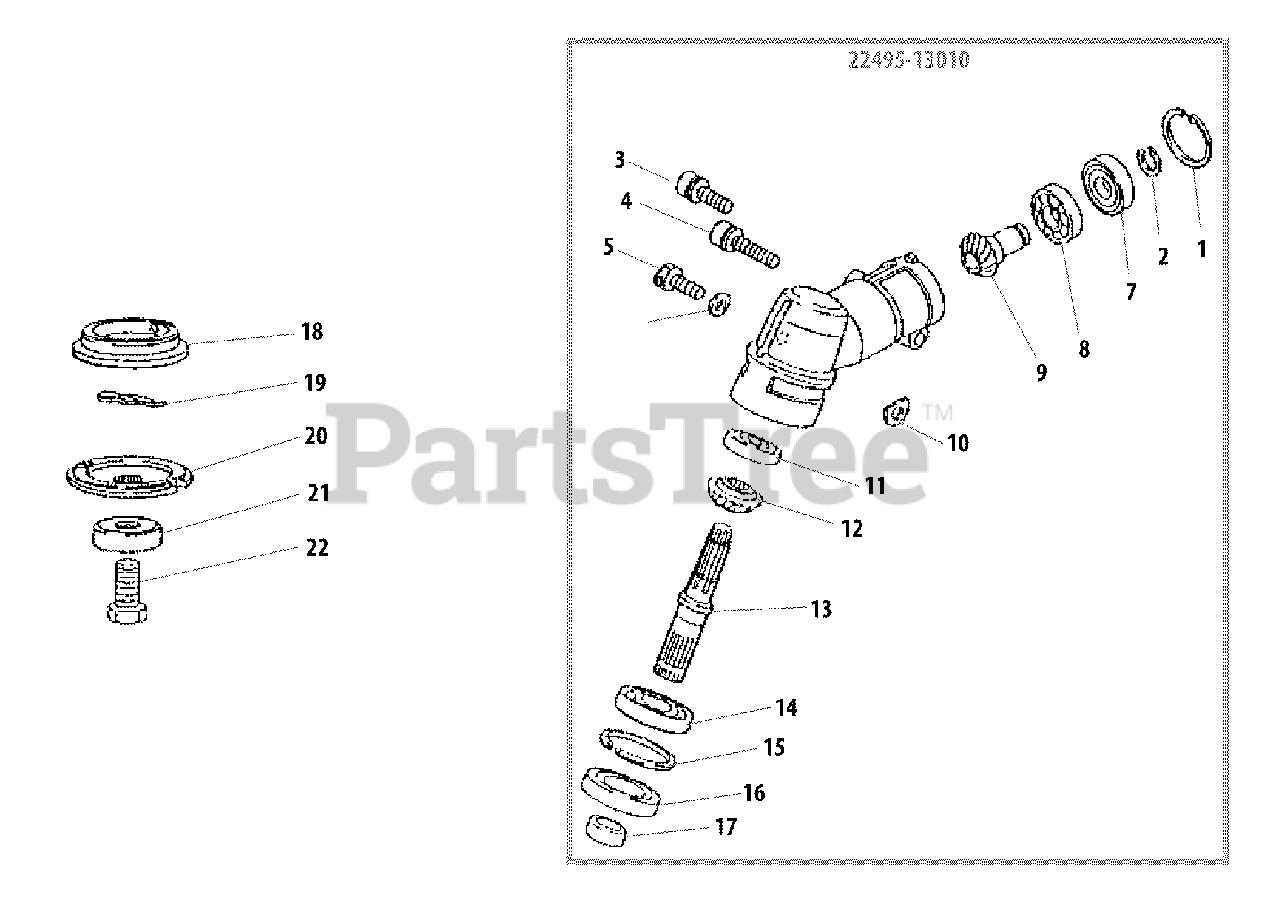

C 260 - Shindaiwa Brush Cutter Gear Case Parts Diagram

Brush Cutter

Gear Case Parts Diagram

  • Title
A

Echo 22495-13010

GEAR CASE ASSY
(Superseded to 63030-63021)

$192.99

$

Usually ships in 2-4 days

0

1

Echo 02432-24120

RING, RETAINING - 24
(Superseded to 9242424000)

$0.99

$

In Stock, Qty 5

0

2

Echo 22420-13350

RING, RETAINING
(Superseded to V582000130)

$1.49

$

In Stock, Qty 17

0

3

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0

4

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, Qty 6

0

5

Echo 01014-06100

BOLT - 6X10
(Superseded to 9103006010)

$0.99

$

In Stock, only 3 left!

0

6

Echo 01610-06080

WASHER - 6
(Superseded to 90060000006)

$0.99

$

In Stock, Qty 16

0

7

Echo 02002-00609

BEARING, BALL - 609ZZ
(Superseded to 90080400609)

$15.99

$

In Stock, Qty 5

0

8

Echo 02000-00609

BEARING, BALL - 609
(Superseded to 90080000609)

$9.99

$

In Stock, Qty 11

0

9

Echo 22420-13310

GEAR SHAFT ASSY
(Superseded to 60088-98310)

$48.99

$

Usually ships in 2-4 days

0

10

Echo 22000-13420

SHIM
(Superseded to V340000300)

$0.99

$

In Stock, Qty 8

0

11

Echo 02036-00608

BEARING, BALL - 608DDU
(Superseded to 9400230608)

$8.49

$

Usually ships in 2-4 days

0

12

Echo 22495-13220

GEAR - BEVEL
(Superseded to 22495-13221)

$18.99

$

In Stock, only 1 left!

0

13

Echo 22495-13210

GEAR - SHAFT
(Superseded to C534000690)

$18.99

$

Usually ships in 2-4 days

0

14

Echo 02000-06001

BEARING, BALL - 6001
(Superseded to 37074-63310)

$9.49

$

In Stock, only 3 left!

0

15

Echo 02432-28120

RING, RETAINING - 28
(Superseded to 9242428000)

$1.49

$

In Stock, Qty 19

0

16

Echo 22420-13140

SEAL, OIL
(Superseded to V510000020)

$5.99

$

In Stock, Qty 13

0

17

Echo 22000-13230

COLLAR
(Superseded to V356000500)

$3.99

$

In Stock, Qty 5

0

18

Echo 22420-13510

HOLDER - A
(Superseded to C535000890)

$19.99

$

In Stock, only 4 left!

0

19

Echo 22000-13530

CLIP
(Superseded to V641000150)

$2.49

$

In Stock, only 4 left!

0

20

Echo 22000-13252

HOLDER (B)
(Superseded to 37019-63170)

$15.99

$

In Stock, only 3 left!

0

21

Echo 22000-13290

GUARD
(Superseded to C535000860)

$2.99

$

In Stock, Qty 8

0

22

Echo 22000-13512

BOLT - 8 -- LEFT HAND
(Superseded to V205000480)

$2.99

$

In Stock, Qty 19

0
