C 2510 - Shindaiwa Brush Cutter Cam Gear, Clutch Shoe, Crankshaft, Rocker Arm Parts Diagram

Brush Cutter

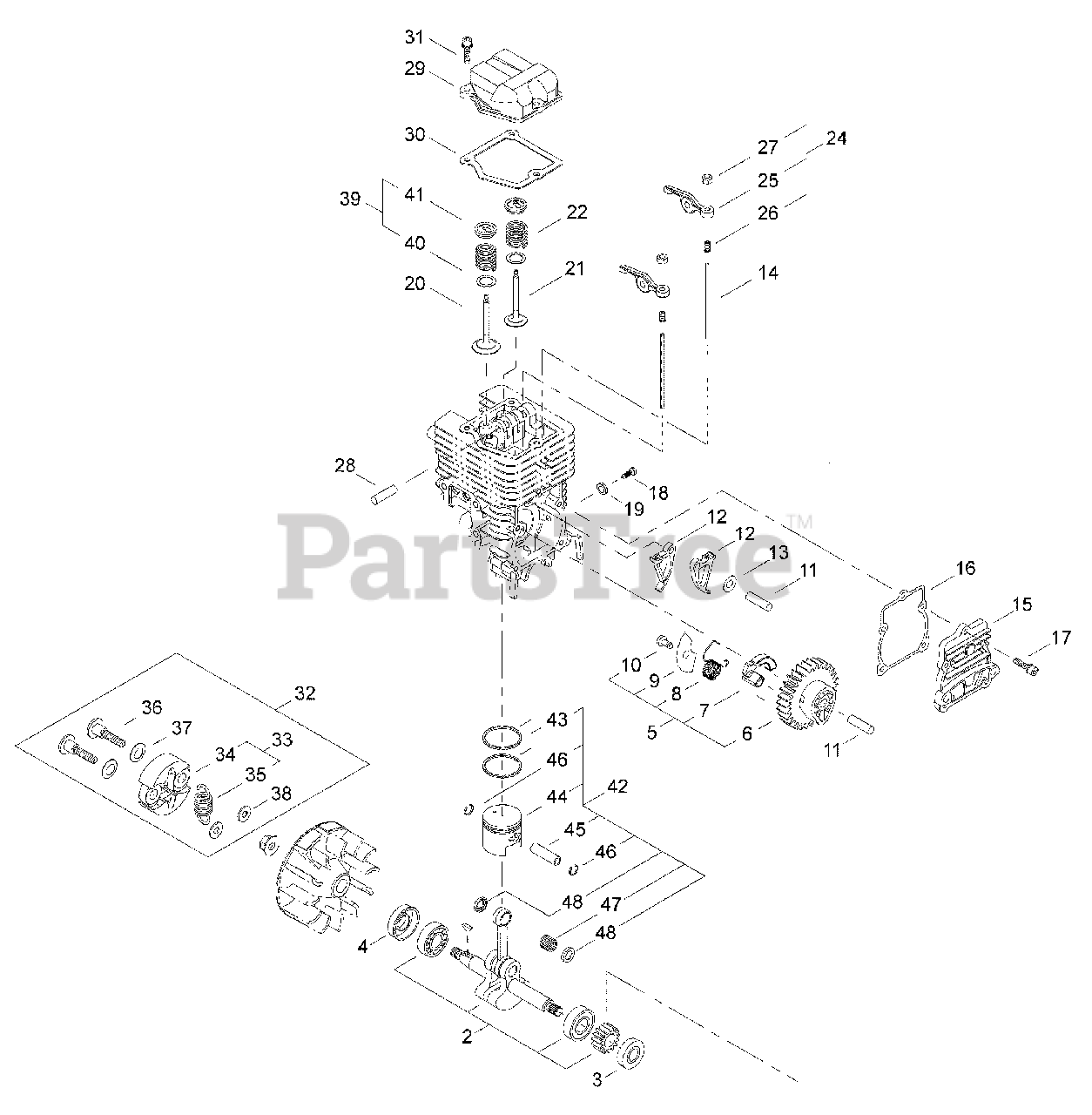

Cam Gear, Clutch Shoe, Crankshaft, Rocker Arm Parts Diagram

  • Title
2

Echo 62902-42020

CRANKSHAFT ASSY
(Superseded to A011000630)

$119.99

$

Usually ships in 2-4 days

0

3

Echo 62901-42260

SEAL, OIL - 12
(Superseded to V505000020)

$6.49

$

In Stock, only 2 left!

0

4

Echo 62901-42270

SEAL, OIL - 12
(Superseded to V505000120)

$26.99

$

In Stock, only 1 left!

0

5

Echo 62905-43011

CAM GEAR ASSY
(Superseded to A063000000)

Note: Includes ITEMS 6-10

$17.99

$

In Stock, only 1 left!

0

6

Echo 62902-43310

GEAR, CAM
(Superseded to A622000000)

$9.99

$

In Stock, only 1 left!

0

7

Echo 62907-43120

WEIGHT
(Superseded to A146000000)

$1.99

$

Usually ships in 2-4 days

0

8

Echo 1752008900

SPRING
(Superseded to V452000610)

$1.99

$

Usually ships in 2-4 days

0

9

Echo 62905-43131

COVER, PLATE
(Superseded to C603000240)

$0.99

$

In Stock, only 1 left!

0

10

Echo 01280-04062

SCREW - 4X6 -- TAPPING
(Superseded to 9144904006)

$0.99

$

Usually ships in 2-4 days

0

11

Echo 12492-50290

PIN - LOCATING
(Superseded to V623000030)

$1.99

$

Usually ships in 2-4 days

0

12

Echo 62907-43210

FOLLOWER, CAM
(Superseded to A600000000)

$12.99

$

In Stock, only 4 left!

0

13

Echo 11620-10000

WASHER - 5
(Superseded to V303000220)

$0.99

$

In Stock, only 3 left!

0

14

Echo 62908-43220

PUSHROD
(Superseded to A607000010)

$1.99

$

In Stock, only 4 left!

0

15

Echo 62901-43330

COVER, CAM GEAR
(Superseded to A136000010)

$20.99

$

Usually ships in 2-4 days

0

16

Echo 62901-43240

GASKET
(Superseded to V109000110)

$1.99

$

In Stock, Qty 5

0

17

Echo 11022-04140

SCREW - 4X14
(Superseded to V202000350)

$0.99

$

In Stock, Qty 10

0

18

Echo 62901-43310

SCREW - 5
(Superseded to V253000540)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 15401-10028

WASHER
(Superseded to V303000120)

$0.99

$

Usually ships in 2-4 days

0

20

Echo 62902-44111

VALVE, INTAKE
(Superseded to A603000040)

$15.99

$

Usually ships in 2-4 days

0

21

Echo 62902-44121

VALVE, EXHAUST
(Superseded to A603000050)

$19.99

$

Usually ships in 2-4 days

0

22

Echo 62901-44130

SPRING, VALVE
(Superseded to A604000010)

$1.99

$

In Stock, Qty 5

0

24

Echo 62907-44010

ROCKER ARM ASSY
(Superseded to A610000050)

Note: Includes ITEMS 25-27

$30.99

$

Usually ships in 2-4 days

0

25

Echo 62901-44210

ARM, ROCKER
(Superseded to A610000060)

$27.99

$

Usually ships in 2-4 days

0

26

Echo 62907-44220

SCREW, ADJUST
(Superseded to A613000010)

$2.99

$

Usually ships in 2-4 days

0

27

Echo 62901-44231

LOCKNUT, ADJUSTER
(Superseded to V263000230)

$0.99

$

Usually ships in 2-4 days

0

28

Echo 12492-50310

SHAFT, ROCKER ARM - 5X31.8
(Superseded to V623000040)

$1.99

$

Usually ships in 2-4 days

0

29

Echo 62901-44241

COVER, ROCKER ARM
(Superseded to A137000020)

$9.99

$

Usually ships in 2-4 days

0

30

Echo 62901-44250

GASKET
(Superseded to V109000120)

$1.99

$

In Stock, only 1 left!

0

31

Echo 11022-04120

SCREW - 4X12
(Superseded to V202000340)

$0.99

$

Usually ships in 2-4 days

0

32

Echo 62901-51011

CLUTCH SHOE SET
(Superseded to A056000520)

Note: Includes ITEMS 33-38

$42.99

$

In Stock, Qty 15

0

33

Echo 62901-51021

CLUTCH ASSY
(Superseded to A056000530)

Note: Includes ITEMS 34-35

$42.99

$

In Stock, Qty 15

0

34

Echo 70140-51113

SHOE, CLUTCH
(Superseded to A553000060)

$18.99

$

In Stock, only 4 left!

0

35

Echo 70140-51220

SPRING, CLUTCH
(Superseded to A566000200)

$2.49

$

In Stock, only 3 left!

0

36

Echo 20087-51210

BOLT, CLUTCH
(Superseded to A557000040)

$2.99

$

Usually ships in 2-4 days

0

37

Echo 20087-51231

WASHER - SPRING
(Superseded to V346000040)

$0.99

$

Usually ships in 2-4 days

0

38

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

39

Echo 60908-98370

VALVE RETAINER ASSY
(Superseded to P021027590)

Note: Includes ITEMS 40-41

$18.99

$

Usually ships in 2-4 days

0

40

Echo 62908-44310

WASHER, VALVE - 9
(Superseded to V392000030)

$0.99

$

In Stock, only 4 left!

0

41

Echo 62908-44140

RETAINER, VALVE
(Superseded to A606000040)

$7.99

$

Usually ships in 2-4 days

0

42

Echo 62902-41310

PISTON KIT
(Superseded to P021033930)

$61.99

$

In Stock, only 1 left!

0

43

Echo 62902-41120

RING, PISTON
(Superseded to A101000390)

$4.49

$

Usually ships in 2-4 days

0

44

Echo 62902-41110

PISTON
(Superseded to A100000710)

$34.99

$

In Stock, only 1 left!

0

45

Echo 62901-41210

PIN, PISTON
(Superseded to V607000040)

$4.49

$

Usually ships in 2-4 days

0

46

Echo 20000-41320

RING, RETAINING
(Superseded to V580000090)

$5.49

$

In Stock, only 2 left!

0

47

Echo 62901-41230

BEARING, NEEDLE
(Superseded to V554000010)

$6.49

$

In Stock, only 2 left!

0

48

Echo V392000020

SPACER - 9

$2.49

$

In Stock, Qty 10

0
