C 25 - Shindaiwa Brush Cutter Cylinder Parts Diagram

Brush Cutter

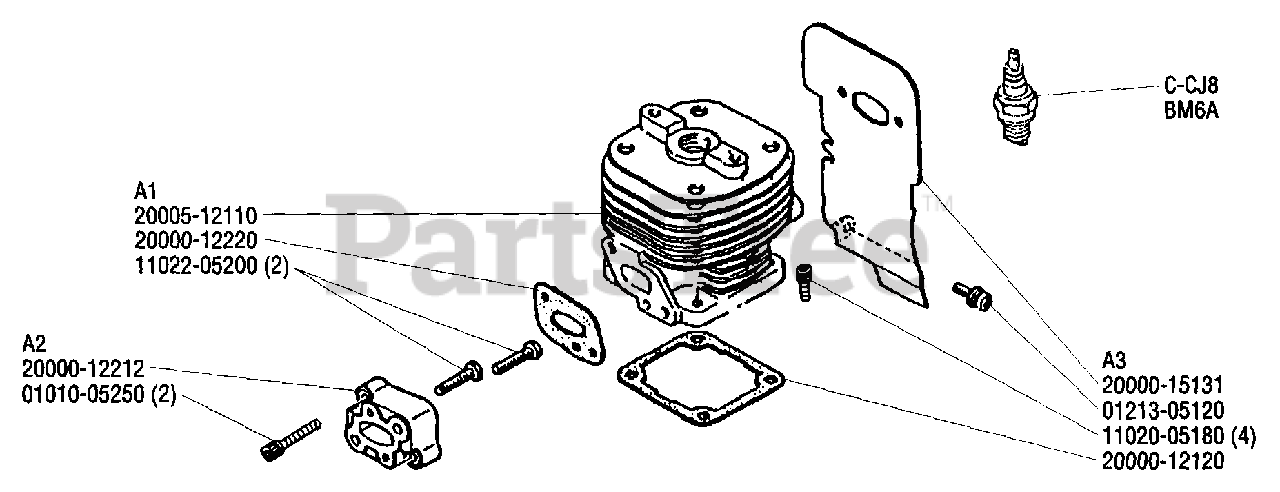

Cylinder Parts Diagram

  • Title
A1-11022-05200

Echo 11022-05200

BOLT
(Superseded to V203000350)

$0.99

$

In Stock, Qty 12

0

A1-20000-12220

Echo 20000-12220

GASKET, INSULATOR

$0.99

$

In Stock, Qty 5

0

A1-20005-12110

Echo 20005-12110

CYLINDER
(Superseded to Discontinued)

$

$

Not available

A2-01010-05250

Echo 01010-05250

BOLT
(Superseded to Discontinued)

$

$

Not available

A2-20000-12212

Echo 20000-12212

INSULATOR
(Superseded to Discontinued)

$

$

Not available

A3-01213-05120

Echo 01213-05120

SCREW
(Superseded to 9156405012)

$0.99

$

In Stock, Qty 15

0

A3-11020-05180

Echo 11020-05180

BOLT SPW
(Superseded to V203000710)

$0.99

$

Usually ships in 2-4 days

0

A3-20000-12120

Echo 20000-12120

GASKET, CYLINDER
(Superseded to 20000-12121)

$1.49

$

In Stock, Qty 9

0

A3-20000-15131

Echo 20000-15131

INSULATOR, MUFFLER
(Superseded to V104001650)

$7.99

$

Usually ships in 2-4 days

0

BM6A

NGK BM6A

Solid Spark Plug, BM6A

$3.49

$

Usually ships in 2-6 days

0

C-CJ8

Echo C-CJ8

SPARK PLUG

$

$

Currently unavailable
