C 242 - Shindaiwa Brush Cutter (Original Version) Outer Pipe Assembly, Hanger Assembly Parts Diagram

Brush Cutter

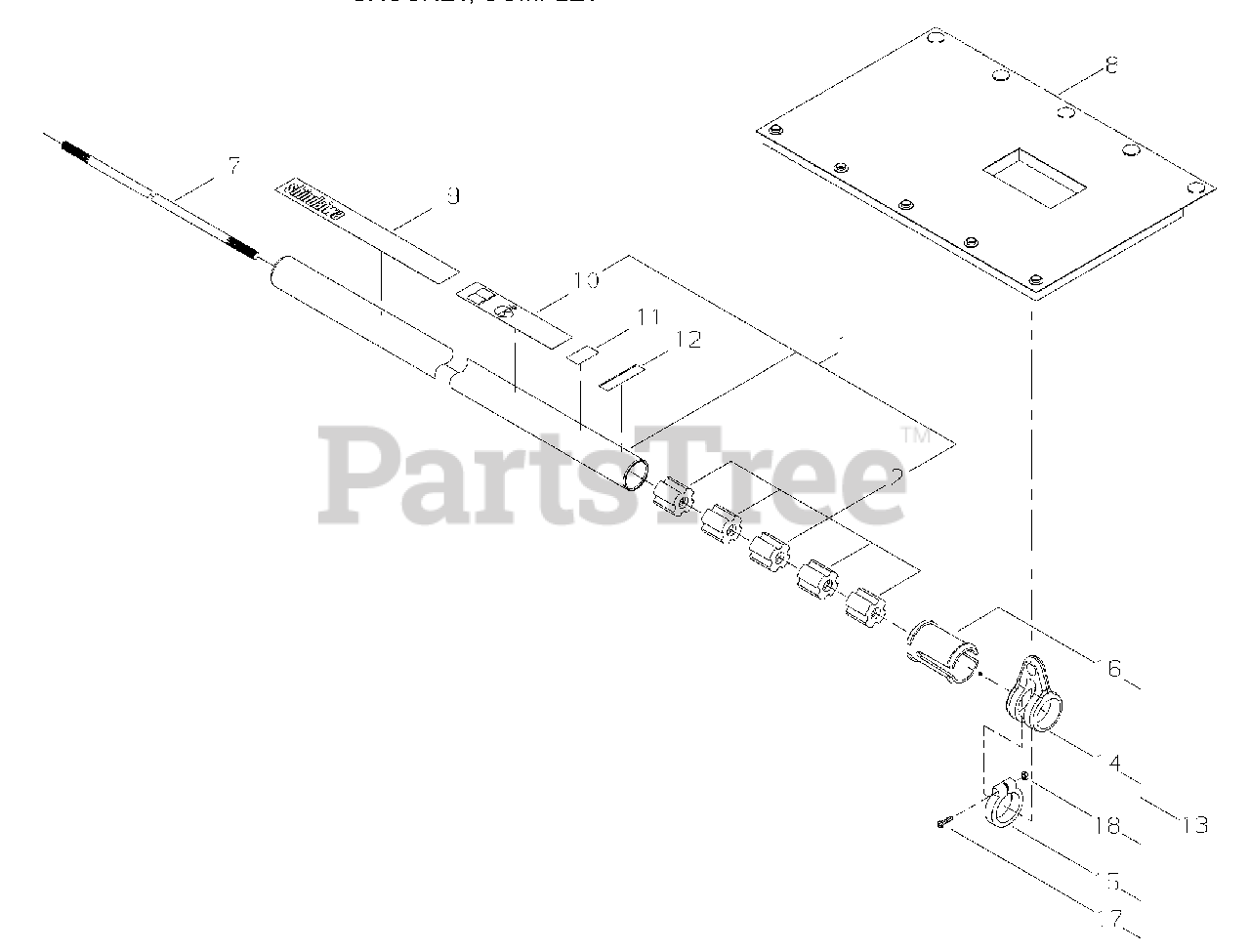

Outer Pipe Assembly, Hanger Assembly Parts Diagram

  • Title
1

Echo 72432-12100

MAIN PIPE ASSY
(Superseded to C050001480)

$74.99

$

In Stock, only 1 left!

0

2

Echo 22035-12121

BUSHING
(Superseded to C501000010)

$4.49

$

In Stock, Qty 6

0

10

Echo 19422-00029

LABEL - CAUTION
(Superseded to X505005890)

$5.49

$

In Stock, only 1 left!

0

7

Echo 22070-12410

PIPE, MAIN
(Superseded to C504000500)

$19.99

$

In Stock, only 4 left!

0

8

Echo 22057-17110

SLEEVE, PROTECTOR
(Superseded to V420002340)

$15.99

$

Usually ships in 2-4 days

0

9

Echo 19420-00084

LABEL - TRADE
(Superseded to X504002780)

$3.49

$

In Stock, only 2 left!

0

11

Echo 19401-00269

LABEL - INSTRUCTION
(Superseded to X505002850)

$0.99

$

In Stock, only 2 left!

0

12

Echo 72005-12140

LABEL - HANDLE LOCATION
(Superseded to X505002860)

$0.99

$

In Stock, Qty 9

0

13

Echo 33008-62340

HANGER ASSY
(Superseded to C063000000)

$10.99

$

Usually ships in 2-4 days

0

14

Echo 33008-62151

HANGER
(Superseded to C670000060)

$4.49

$

Usually ships in 2-4 days

0

15

Echo 33008-62311

CLAMP
(Superseded to V495001330)

$2.49

$

Usually ships in 2-4 days

0

16

Echo 33008-62321

COLLAR
(Superseded to V363000110)

$2.49

$

Usually ships in 2-4 days

0

17

Echo 11203-04160

SCREW - 4X16
(Superseded to 9157804016)

$0.99

$

Usually ships in 2-4 days

0

18

Echo 01500-04031

NUT - 4
(Superseded to 90054)

$

$

Not available
