C 242 - Shindaiwa Brush Cutter (Original Version) Gearcase Assembly Parts Diagram

Brush Cutter

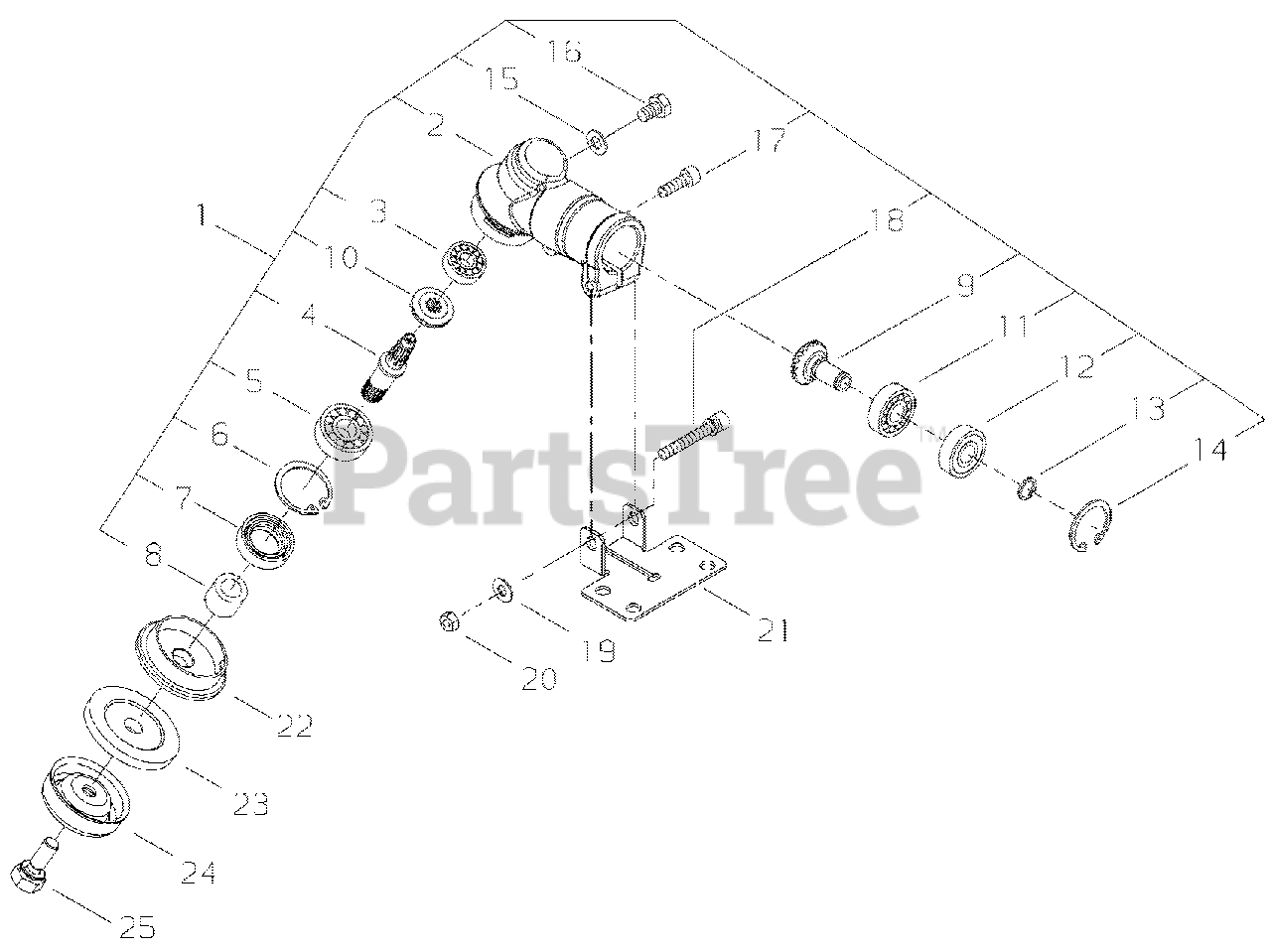

Gearcase Assembly Parts Diagram

  • Title
1

Echo 60114-98320

GEAR CASE ASSY
(Superseded to 60114-98321)

$129.99

$

In Stock, only 2 left!

0

2

Echo 63076-63110

CASE, GEAR
(Superseded to 37083-63111)

$16.99

$

Usually ships in 2-4 days

0

3

Echo 12900-06260

BEARING, BALL - 626MOS

$5.99

$

Usually ships in 2-4 days

0

4

Echo 63076-63130

GEAR - SHAFT
(Superseded to 33043-63130)

$25.99

$

Usually ships in 2-4 days

0

5

Echo 12900-60002

BEARING, BALL - 6000MOS

$8.99

$

Usually ships in 2-4 days

0

6

Echo 02432-26120

RING, RETAINING - 26
(Superseded to 9242426000)

$0.99

$

In Stock, Qty 6

0

7

Echo 22035-13140

SEAL, OIL
(Superseded to V509000000)

$3.49

$

In Stock, Qty 8

0

8

Echo 22035-13230

COLLAR
(Superseded to V356000480)

$2.99

$

In Stock, only 2 left!

0

9

Echo 63076-63150

GEAR - SHAFT
(Superseded to 37083-63150)

$34.99

$

Usually ships in 2-4 days

0

10

Echo 63076-63140

GEAR - BEVEL
(Superseded to 33043-63140)

$27.99

$

In Stock, only 2 left!

0

11

Echo 12900-06090

BEARING, BALL - 609 MOS

$5.99

$

Usually ships in 2-4 days

0

12

Echo 12900-06091

BEARING, BALL - 609Z MOS

$6.49

$

Usually ships in 2-4 days

0

13

Echo 02430-09100

RING, RETAINING - 9

$0.99

$

Usually ships in 2-4 days

0

14

Echo 02432-24120

RING, RETAINING - 24
(Superseded to 9242424000)

$0.99

$

In Stock, Qty 5

0

15

Echo 01610-06080

WASHER - 6
(Superseded to 90060000006)

$0.99

$

In Stock, Qty 16

0

16

Echo 01014-06100

BOLT - 6X10
(Superseded to 9103006010)

$0.99

$

In Stock, only 3 left!

0

17

Echo 01020-05100

SCREW - 5X10
(Superseded to 90010505010)

$1.49

$

In Stock, Qty 10

0

18

Echo 11022-05400

SCREW - 5X40
(Superseded to 11024-05400)

$1.99

$

In Stock, only 1 left!

0

19

Echo 01613-05080

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

20

$0.99

$

In Stock, Qty 20+

0

21

Echo 63076-63310

MOUNTING PLATE, SHIELD
(Superseded to C551000050)

$4.49

$

In Stock, only 2 left!

0

22

Echo 63077-63160

HOLDER - A
(Superseded to 37083-63160)

$20.99

$

Usually ships in 2-4 days

0

23

Echo 63077-63170

CLIP
(Superseded to 37083-63170)

$10.99

$

Usually ships in 2-4 days

0

24

Echo 63077-63310

GUARD
(Superseded to 33042-63310)

$5.49

$

In Stock, Qty 9

0

25

Echo 11031-07200

SCREW - 7X20
(Superseded to V216000060)

$3.49

$

Usually ships in 2-4 days

0
