C 230 - Shindaiwa Brush Cutter (SN: 36005611 - 36009050) Outer Tube Parts Diagram

Brush Cutter

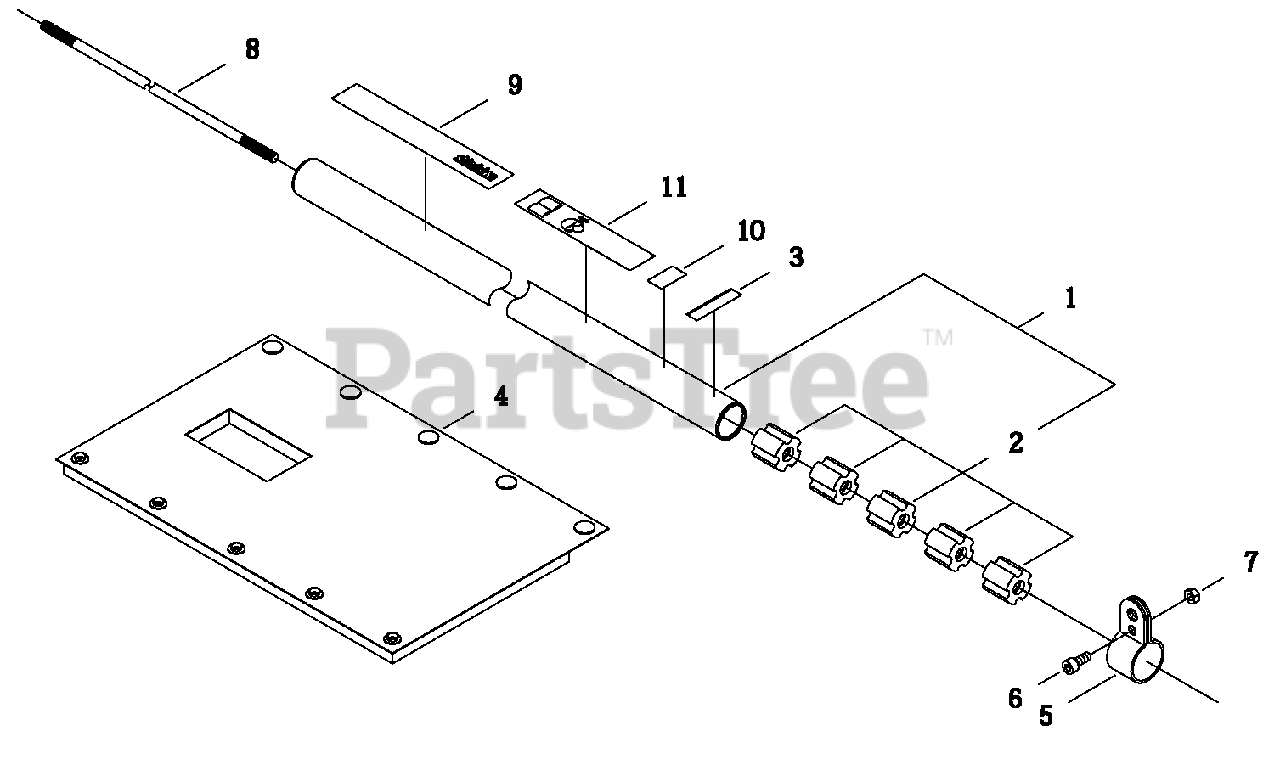

Outer Tube Parts Diagram

  • Title

1

Echo C050002080

MAIN PIPE ASSY
(Superseded to C050002650)

Note: 72432-12100

$74.99

$

In Stock, only 1 left!

0

2

Echo C501000010

BUSHING

Note: 22035-12121

$4.49

$

In Stock, Qty 6

0

3

Echo X505002860

LABEL - ALIGNMENT
(Superseded to 89015204930)

Note: 72005-12140

$0.99

$

In Stock, Qty 9

0

4

Echo V420002340

SLEEVE, PROTECTOR

Note: 22057-17110

$15.99

$

Usually ships in 2-4 days

0

5

Echo C670000070

BRACKET

Note: 22410-12210

$2.99

$

Usually ships in 2-4 days

0

6

Echo 90010505012

SCREW - 5X12

Note: 01020-05120

$1.49

$

In Stock, Qty 20+

0

7

Echo 90050000005

NUT - 5

Note: 01500-05041

$0.99

$

In Stock, Qty 20+

0

8

Echo C504000500

DRIVESHAFT - SOLID

Note: 22070-12410

$19.99

$

Usually ships in 2-4 days

0

9

Echo X504002780

LABEL - SHINDAIWA PROFESSIONAL

Note: 19420-00084

$3.49

$

In Stock, only 2 left!

0

10

Echo X505002850

LABEL - HANDLE LOCATION

Note: 19401-00269

$0.99

$

In Stock, only 3 left!

0

11

Echo X505005890

LABEL - CAUTION

Note: 19422-00029

$5.49

$

Usually ships in 2-4 days

0
