C 230 - Shindaiwa Brush Cutter (SN: 36005611 - 36009050) Gear Case Parts Diagram

Brush Cutter

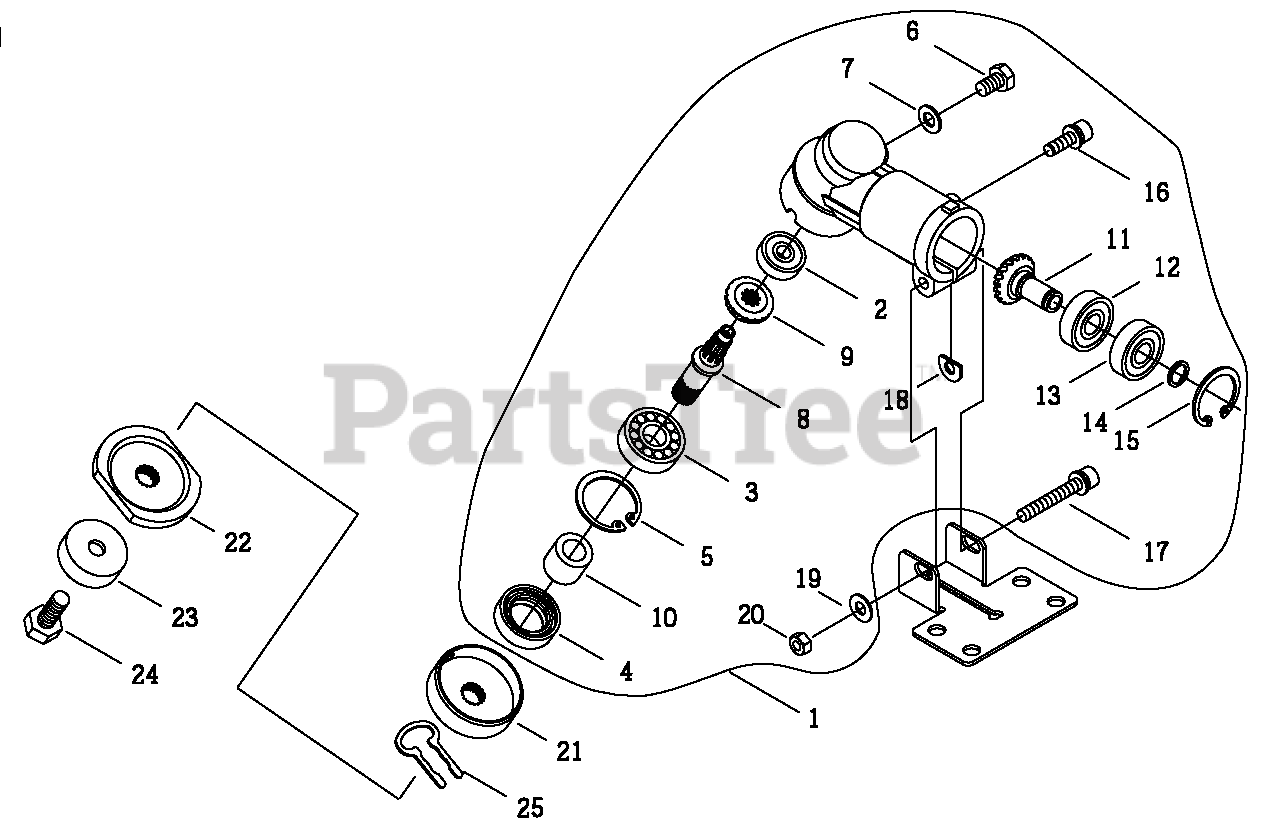

Gear Case Parts Diagram

  • Title
1

Echo C051000680

GEAR CASE ASSY
(Superseded to C051000681)

Note: 63901-63022

$130.99

$

In Stock, only 1 left!

0

2

Echo 90081200626

BEARING, BALL - 626

Note: 02006-00626

$13.99

$

Usually ships in 2-4 days

0

3

Echo 90080006000

BEARING, BALL - 6000

Note: 02000-06000

$10.99

$

Usually ships in 2-4 days

0

4

Echo V509000000

SEAL, OIL

Note: 22035-13140

$3.49

$

In Stock, Qty 8

0

5

Echo 9242426000

RING, RETAINING - 26

Note: 02432-26120

$0.99

$

In Stock, Qty 5

0

6

Echo 9103006010

BOLT - 6X10

Note: 01014-06100

$0.99

$

In Stock, only 3 left!

0

7

Echo V304000180

WASHER - 8

Note: 22000-13410

$0.99

$

In Stock, only 4 left!

0

8

Echo C534000680

GEAR - SHAFT

Note: 22410-13210

$16.99

$

In Stock, only 1 left!

0

9

Echo V651000690

GEAR - BEVEL

Note: 22035-13220

$15.99

$

Usually ships in 2-4 days

0

10

Echo V356000480

COLLAR

Note: 22035-13230

$2.99

$

In Stock, only 2 left!

0

11

Echo V651000700

GEAR - SHAFT

Note: 22035-13391

$19.99

$

Usually ships in 2-4 days

0

12

Echo 90080000608

BEARING, BALL

Note: 02000-00608

$5.99

$

Usually ships in 2-4 days

0

13

Echo 90080400608

BEARING, BALL - 608ZZ

Note: 02002-00608

$12.99

$

In Stock, only 1 left!

0

14

Echo V582000140

RING, RETAINING

Note: 22035-13340

$

$

Currently unavailable

15

Echo 9242422000

RING, RETAINING - 22

Note: 02432-22100

$0.99

$

In Stock, Qty 5

0

16

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

Note: 11022-05160

$0.99

$

In Stock, Qty 15

0

17

Echo V203000600

SCREW - 5X35
(Superseded to V203000601)

Note: 11022-05350

$1.49

$

In Stock, Qty 6

0

18

Echo V340000300

SHIM

Note: 22000-13420

$0.99

$

In Stock, Qty 8

0

19

Echo 90060300005

WASHER - 5

Note: 01613-05080

$0.99

$

In Stock, Qty 20+

0

20

Echo 90050000005

NUT - 5

Note: 01500-05041

$0.99

$

In Stock, Qty 20+

0

21

Echo C535000510

ADAPTOR, BLADE - UPPER
(Superseded to C535000511)

Note: 22035-13242

$20.99

$

In Stock, only 2 left!

0

22

Echo C535000520

ADAPTOR, BLADE - LOWER
(Superseded to C535000521)

Note: 22410-13251

$11.99

$

In Stock, only 2 left!

0

23

Echo C535000530

GUARD

Note: 22035-13290

$3.49

$

In Stock, Qty 7

0

24

Echo V216000040

BOLT - 7X18 -- LEFT HAND

Note: 22035-13271

$3.99

$

In Stock, only 2 left!

0

25

Echo V490000530

CLIP

Note: 22410-13530

$1.99

$

In Stock, Qty 13

0
