C 230 - Shindaiwa Brush Cutter (SN: 36005611 - 36009050) Fuel Tank Parts Diagram

Brush Cutter

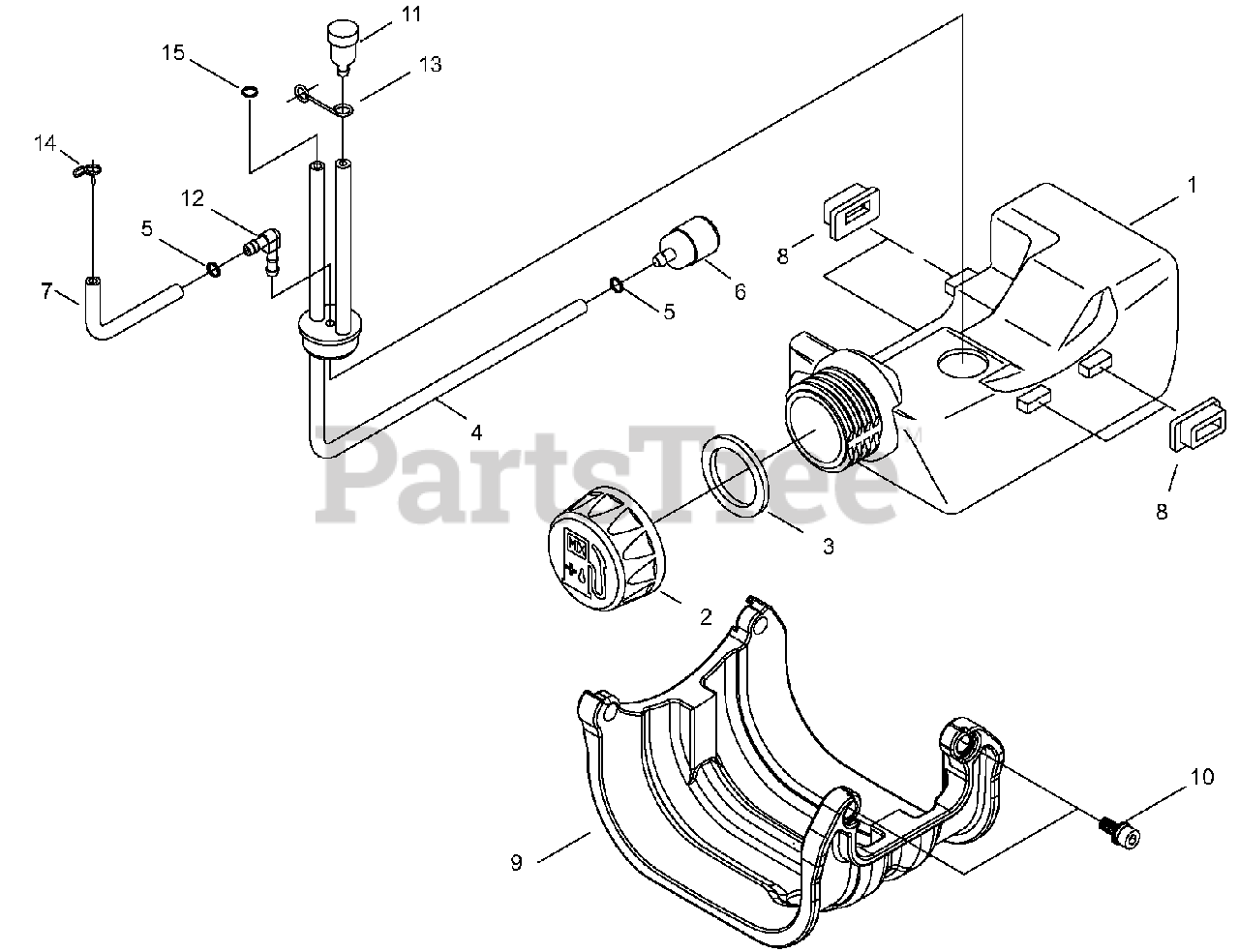

Fuel Tank Parts Diagram

  • Title

1

Echo A350001530

TANK, FUEL

Note: 20016-85112

$15.99

$

Usually ships in 2-4 days

0

2

Echo A355000180

CAP, FUEL
(Superseded to A033000330)

Note: 70168-85210

$7.49

$

In Stock, only 1 left!

0

3

Echo V107000010

GASKET, CAP

Note: 20000-85221

$1.99

$

In Stock, Qty 20+

0

4

Echo V470001210

PIPE - FUEL

Note: 20016-85310

$4.99

$

In Stock, Qty 16

0

5

Echo V490000500

CLIP - 6

Note: 20020-85540

$0.99

$

In Stock, Qty 19

0

6

Echo A369000070

FILTER, FUEL
(Superseded to A369000470)

Note: 20016-85400

$8.99

$

In Stock, Qty 20+

0

7

Echo V471002790

PIPE - RETURN

Note: 20089-83311

$1.99

$

In Stock, only 4 left!

0

8

Echo V420002630

CUSHION, FUEL TANK

Note: 20024-86120

$1.49

$

In Stock, Qty 12

0

9

Echo A175000220

GUARD, FUEL TANK

Note: 62902-85320

$12.99

$

In Stock, only 1 left!

0

10

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

Note: 11022-05160

$0.99

$

In Stock, Qty 15

0

11

Echo A356000040

VENT, FUEL TANK

Note: 20035-85522

$6.99

$

In Stock, Qty 20+

0

12

Echo V186000270

CONNECTOR, PIPE

Note: 20087-85340

$2.99

$

In Stock, Qty 17

0

13

Echo A358000040

HOLDER, VENT

Note: 20016-12310

$0.99

$

In Stock, Qty 6

0

14

Echo V490000510

CLIP - BUTTERFLY

Note: 37013-85310

$0.99

$

In Stock, Qty 13

0

15

Echo V490000500

CLIP - 6

Note: 20020-85540

$0.99

$

In Stock, Qty 19

0
