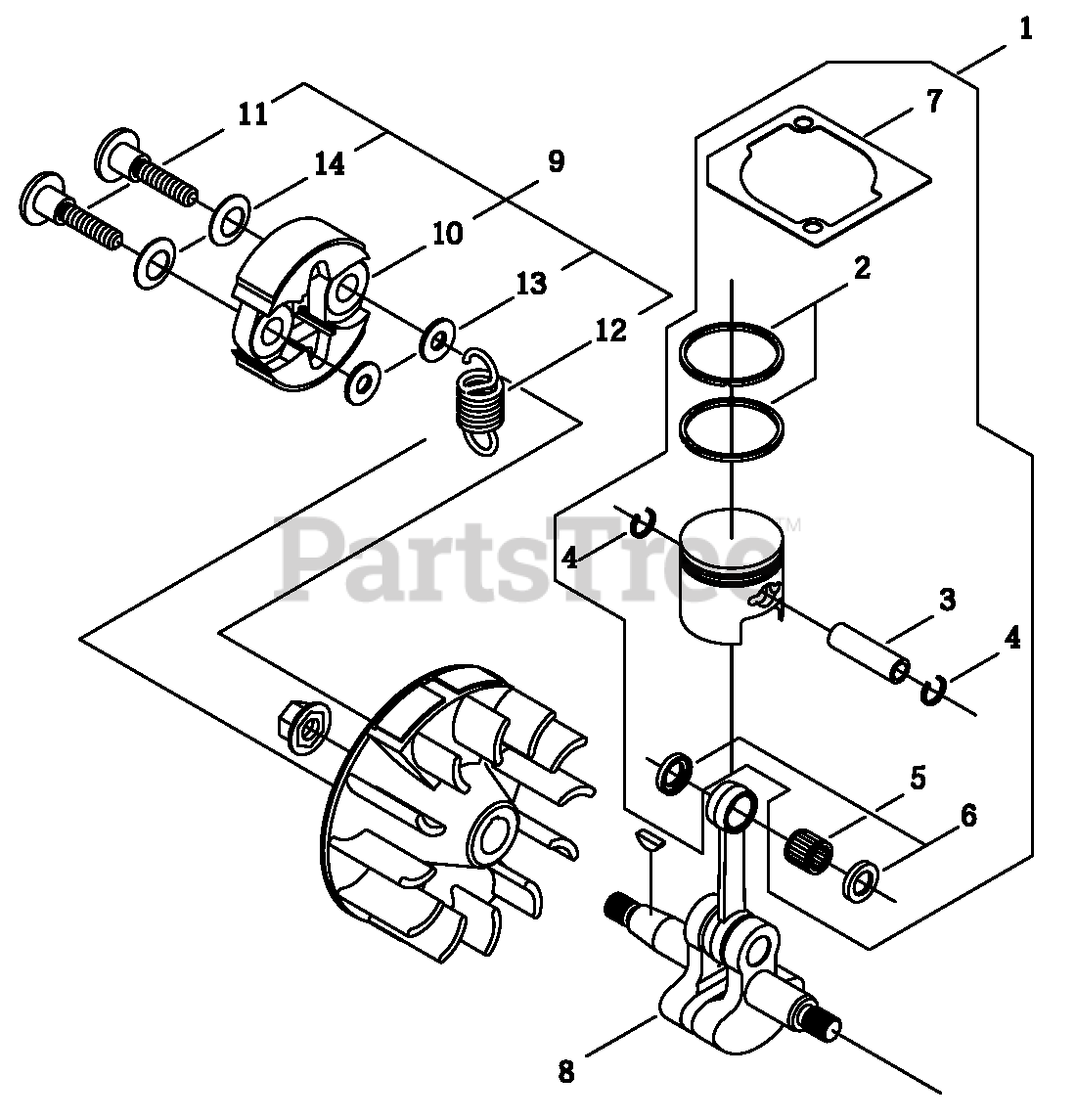

C 230 - Shindaiwa Brush Cutter (SN: 36005611 - 36009050) Clutch, Piston Parts Diagram

Brush Cutter

Clutch, Piston Parts Diagram

  • Title

1

Echo P021030500

PISTON ASSY

Note: 70234-98011

$60.99

$

In Stock, Qty 6

0

2

Echo A101000400

RING, PISTON

Note: 20000-41210

$6.49

$

In Stock, only 2 left!

0

3

Echo V606000060

PIN, PISTON

Note: 20075-41310

$3.49

$

In Stock, only 1 left!

0

4

Echo V580000070

RING, RETAINING

Note: 70030-41320

$0.99

$

In Stock, Qty 9

0

5

Echo V553000080

BEARING, NEEDLE - 8

Note: 37013-41230

$6.49

$

Usually ships in 2-4 days

0

6

Echo V306000250

SPACER, PISTON

Note: 37013-41240

$2.49

$

Usually ships in 2-4 days

0

7

Echo V100000490

GASKET, CYLINDER

Note: 20016-12120

$1.99

$

In Stock, Qty 13

0

8

Echo A011000930

CRANKSHAFT ASSY
(Superseded to P021048010)

Note: 20016-42002

$67.99

$

Usually ships in 2-4 days

0

9

Echo A056000260

CLUTCH ASSY

Note: 70140-51102

$32.99

$

In Stock, Qty 20+

0

10

Echo A553000060

CLUTCH SHOE SET

Note: 70140-51113

$18.99

$

In Stock, only 4 left!

0

11

Echo A557000040

BOLT, CLUTCH

Note: 20087-51210

$2.99

$

Usually ships in 2-4 days

0

12

Echo A566000050

SPRING, CLUTCH

Note: 37013-51310

$2.99

$

In Stock, Qty 9

0

13

Echo V304000150

WASHER - 6

Note: 22100-71430

$0.99

$

Usually ships in 2-4 days

0

14

Echo V346000040

WASHER - SPRING

Note: 20087-51231

$0.99

$

Usually ships in 2-4 days

0
