C 230 - Shindaiwa Brush Cutter (SN: 20000303 - 20999999) Handle, Throttle Lever (C230) Parts Diagram

Brush Cutter

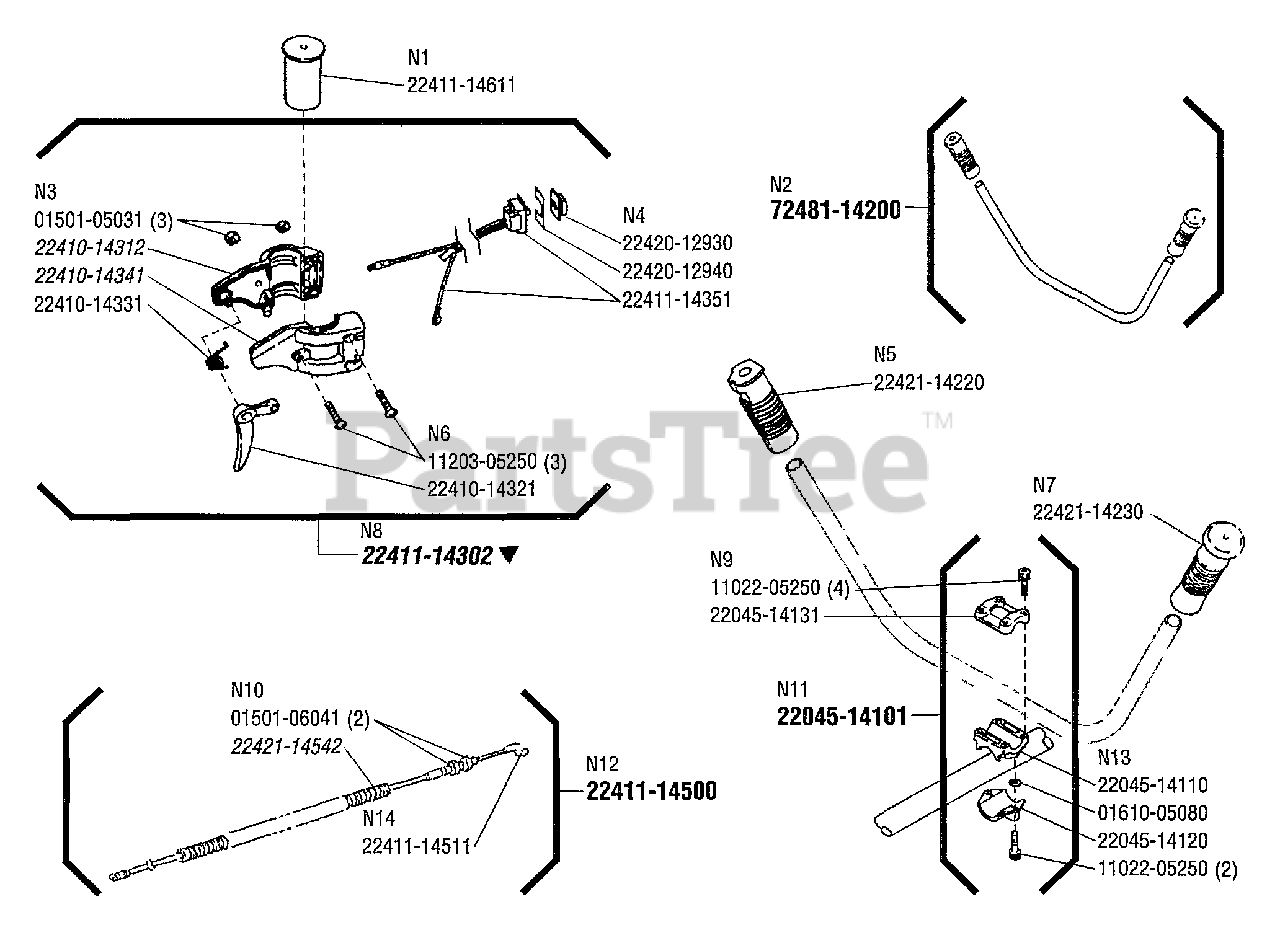

Handle, Throttle Lever (C230) Parts Diagram

  • Title

N1-22411-14611

Echo 22411-14611

SPACER
(Superseded to V376001260)

$4.99

$

In Stock, only 2 left!

0

N3-01501-05031

Echo 01501-05031

NUT
(Superseded to 90050200005)

$0.99

$

In Stock, Qty 13

0

N3-22410-14312

Echo 22410-14312

BRACKET, R
(Superseded to C401000080)

$5.99

$

In Stock, Qty 8

0

N3-22410-14341

Echo 22410-14341

BRACKET L
(Superseded to C401000090)

$5.99

$

In Stock, Qty 9

0

N3-22410-14331

Echo 22410-14331

SPRING
(Superseded to V452000440)

$1.99

$

In Stock, Qty 12

0

N6-11203-05250

Echo 11203-05250

SCREW
(Superseded to 9157805025)

$0.99

$

In Stock, Qty 9

0

N6-22410-14321

Echo 22410-14321

LEVER
(Superseded to C450000460)

$7.49

$

In Stock, Qty 20+

0

N8-22411-14302

Echo 22411-14302

THROTTLE LEVER ASSY
(Superseded to C044000410)

$32.99

$

Usually ships in 2-4 days

0

N10-01501-06041

Echo 01501-06041

NUT
(Superseded to 90050200006)

$0.99

$

In Stock, only 3 left!

0

N10-22421-14542

Echo 22421-14542

TUBE

$5.99

$

Usually ships in 2-4 days

0

N14-22411-14511

Echo 22411-14511

THROTTLE CABLE
(Superseded to V430002660)

$9.49

$

In Stock, only 1 left!

0

N9-11022-05250

Echo 11022-05250

BOLT SPW
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

N9-22045-04131

Echo 22045-04131

$

$

Currently unavailable

N11-22045-14101

Echo 22045-14101

BRACKET ASSY
(Superseded to P021021540)

$25.99

$

Usually ships in 2-4 days

0

N12-22411-14500

Echo 22411-14500

CABLE ASSY
(Superseded to P021023260)

$

$

Not available

N13-22045-04110

Echo 22045-04110

$

$

Currently unavailable

N13-01610-05080

Echo 01610-05080

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

N13-22045-14120

Echo 22045-14120

CAP, LOWER

$5.49

$

Usually ships in 2-4 days

0

N13-11022-05250

Echo 11022-05250

BOLT SPW
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

N7-22421-14230

Echo 22421-14230

GRIP
(Superseded to C403000210)

$11.99

$

Usually ships in 2-4 days

0

N5-22421-14220

Echo 22421-14220

GRIP
(Superseded to C403000340)

$15.99

$

Usually ships in 2-4 days

0

N2-72481-14200

Echo 72481-14200

HANDLE ASSY
(Superseded to P021035430)

$109.99

$

Usually ships in 2-4 days

0

N4-22420-12930

Echo 22420-12930

KNOB
(Superseded to A444000090)

$2.49

$

In Stock, Qty 5

0

N4-22420-12940

Echo 22420-12940

PLATE
(Superseded to X510000500)

$2.49

$

Usually ships in 2-4 days

0

N4-22411-14351

Echo 22411-14351

SWITCH COMPLETE
(Superseded to A440001410)

$21.99

$

Usually ships in 2-4 days

0
