C 230 - Shindaiwa Brush Cutter (SN: 20000303 - 20999999) Carburetor -- EPA & CARB Changes Parts Diagram

Brush Cutter

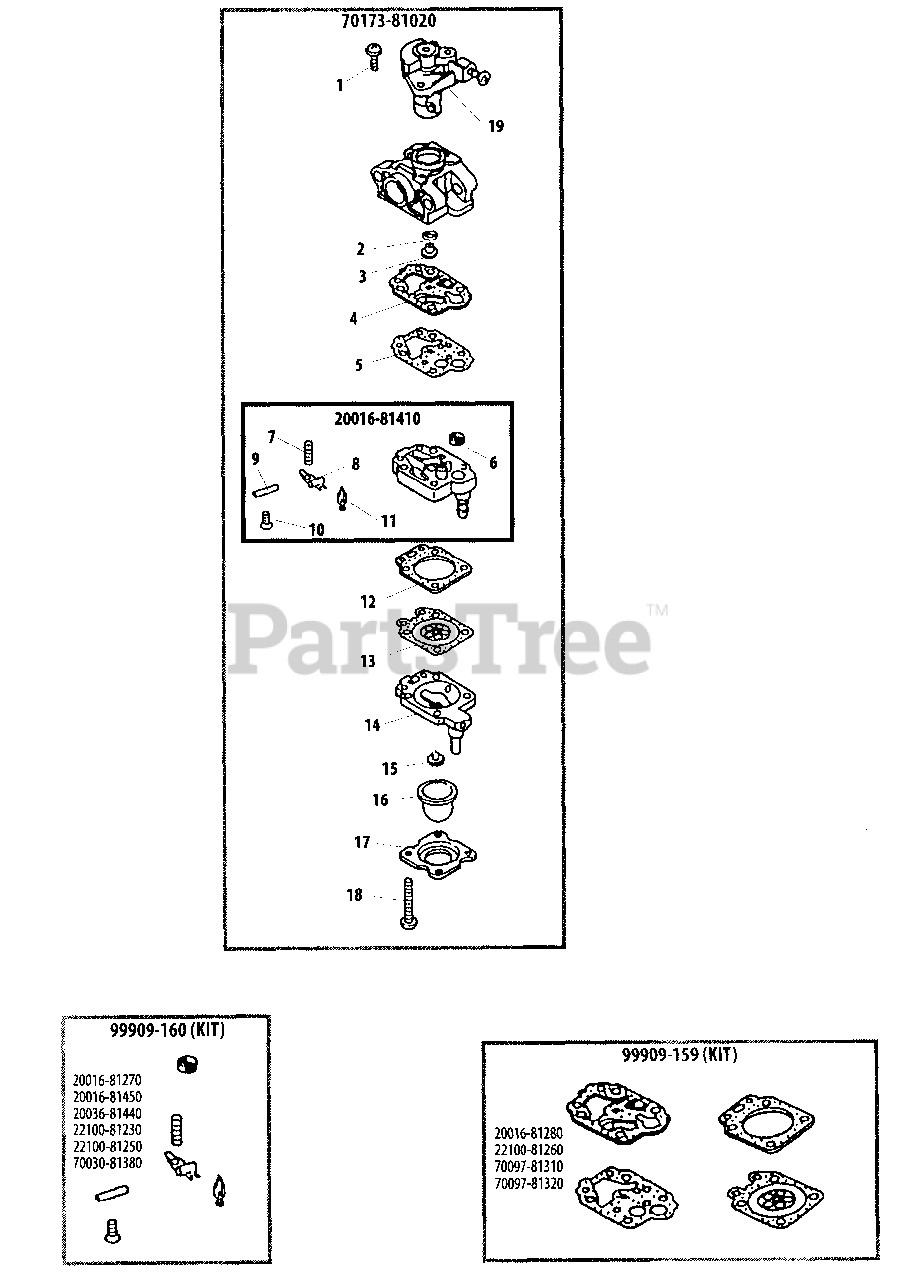

Carburetor -- EPA & CARB Changes Parts Diagram

  • Title
70173-81020

Echo 70173-81020

CARBURETOR
(Superseded to 70173-81021)

$73.99

$

In Stock, only 1 left!

0

1

Echo 70064-81290

SCREW
(Superseded to 12311444330)

$0.99

$

Usually ships in 2-4 days

0

2

Echo 70097-81220

O-RING
(Superseded to 12318340630)

$1.99

$

In Stock, Qty 5

0

3

Echo 70173-81230

JET, MAIN - 38
(Superseded to 70064-81230)

$7.49

$

Usually ships in 2-4 days

0

4

Echo 70097-81310

GASKET, PUMP
(Superseded to 12312540630)

$4.99

$

In Stock, only 1 left!

0

5

Echo 70097-81320

DIAPHRAGM, PUMP
(Superseded to 12311240630)

$12.99

$

In Stock, only 1 left!

0

20016-81410

Echo 20016-81410

PUMP BODY ASSY
(Superseded to P003000440)

$18.99

$

In Stock, Qty 17

0

6

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 19

0

7

Echo 20016-81270

SPRING, METERING LEVER
(Superseded to P003000450)

$0.99

$

Usually ships in 2-4 days

0

8

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

9

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

10

Echo 20016-81450

SCREW, METERING LEVER PIN
(Superseded to 12313905560)

$0.99

$

Usually ships in 2-4 days

0

11

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

12

Echo 20016-81280

GASKET, METERING
(Superseded to 12314005560)

$3.99

$

In Stock, only 2 left!

0

13

Echo 22100-81260

DIAPHRAGM, METERING
(Superseded to 12314103930)

$13.99

$

In Stock, Qty 6

0

14

Echo 20016-81420

BASE, PURGE
(Superseded to 12318005560)

$7.49

$

In Stock, only 2 left!

0

15

Echo 99909-207

VALVE, CHECK

$2.49

$

In Stock, only 3 left!

0

16

Echo 70029-81480

BULB, PURGE
(Superseded to 20036-81670)

$5.49

$

In Stock, Qty 20+

0

17

Echo 20016-81510

RETAINER, PURGE BULB
(Superseded to 12314205560)

$4.49

$

In Stock, Qty 20+

0

18

Echo 20016-81140

SCREW, PUMP COVER
(Superseded to 12311005560)

$2.99

$

In Stock, Qty 20+

0

19

Echo 99909-34570

THROTTLE VALVE ASSY
(Superseded to 68120-81320)

$15.99

$

In Stock, only 1 left!

0

99909-160

Echo 99909-160

REPAIR KIT

$7.49

$

In Stock, Qty 7

0

99909-159

Echo 99909-159

DIAPHRAGM/GASKET KIT

$14.99

$

In Stock, only 2 left!

0
