C 230 PT - Shindaiwa Brush Cutter (SN: T12220001001 - T12220999999) ENGINE S/N: T12220015961-T12220999999 Parts Diagram

Brush Cutter

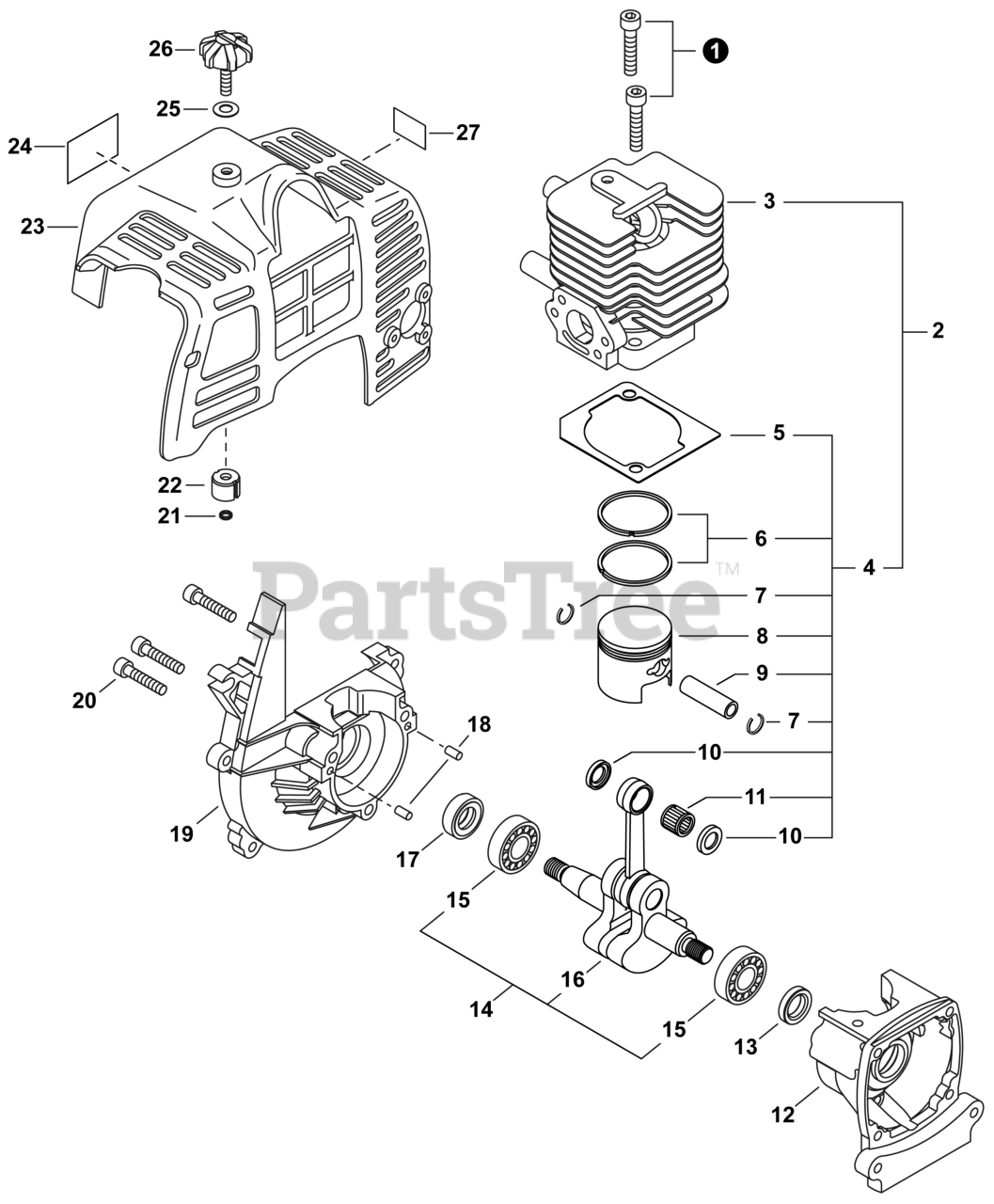

ENGINE S/N: T12220015961-T12220999999 Parts Diagram

  • Title
1

Echo 90010505025

BOLT 5×25

$1.49

$

In Stock, Qty 15

0

2

Echo P021032911

REPAIR KIT, ENGINE

Note: Includes ITEMS 3-11

$107.99

$

Usually ships in 2-4 days

0

3

Echo A130001391

CYLINDER

$54.99

$

In Stock, Qty 8

0

4

Echo P021030500

PISTON KIT

Note: Includes ITEMS 5-11

$60.99

$

In Stock, Qty 6

0

5

Echo V100000490

GASKET, CYLINDER

$1.99

$

In Stock, Qty 11

0

6

Echo A101000400

RING, PISTON

$6.49

$

In Stock, only 2 left!

0

7

Echo V580000070

RING, SNAP

$0.99

$

In Stock, Qty 9

0

8

$35.99

$

Usually ships in 2-4 days

0

9

Echo V606000060

PIN, PISTON 8

$3.49

$

In Stock, only 1 left!

0

10

Echo V306000250

WASHER, THRUST 8

$2.49

$

Usually ships in 2-4 days

0

11

Echo V553000080

BEARING, NEEDLE 8

$6.49

$

Usually ships in 2-4 days

0

12

Echo A120000480

CRANKCASE S

$24.99

$

Usually ships in 2-4 days

0

13

Echo V505000140

SEAL, OIL 12

$3.49

$

In Stock, Qty 7

0

14

Echo P021048010

CRANKSHAFT ASSY
(Superseded to P021048011)

Note: Includes ITEMS 15-16

$67.99

$

Usually ships in 2-4 days

0

15

Echo 90080036001

BEARING, BALL 6001

$9.49

$

In Stock, only 3 left!

0

16

Echo A011000931

CRANKSHAFT

$48.99

$

Usually ships in 2-4 days

0

17

Echo V505000080

SEAL, OIL 12

$2.99

$

In Stock, Qty 10

0

18

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

19

Echo A120000490

CRANKCASE M

$29.99

$

Usually ships in 2-4 days

0

20

Echo 90010505025

BOLT 5×25

$1.49

$

In Stock, Qty 15

0

21

$0.99

$

In Stock, Qty 8

0

22

Echo V353000430

INSULATOR 5 MM

$1.99

$

In Stock, Qty 8

0

23

Echo A160001841

COVER, ENGINE

$12.99

$

In Stock, only 1 left!

0

24

Echo X504001330

LABEL - MODEL C230
(Superseded to X562001390)

$2.49

$

Usually ships in 2-4 days

0

25

Echo V347000030

WASHER, CONE M6

$0.99

$

In Stock, Qty 9

0

26

Echo V299000420

THUMBSCREW

$3.49

$

In Stock, only 1 left!

0

27

Echo X505002310

LABEL - CAUTION - HOT

$1.99

$

In Stock, Qty 20+

0
