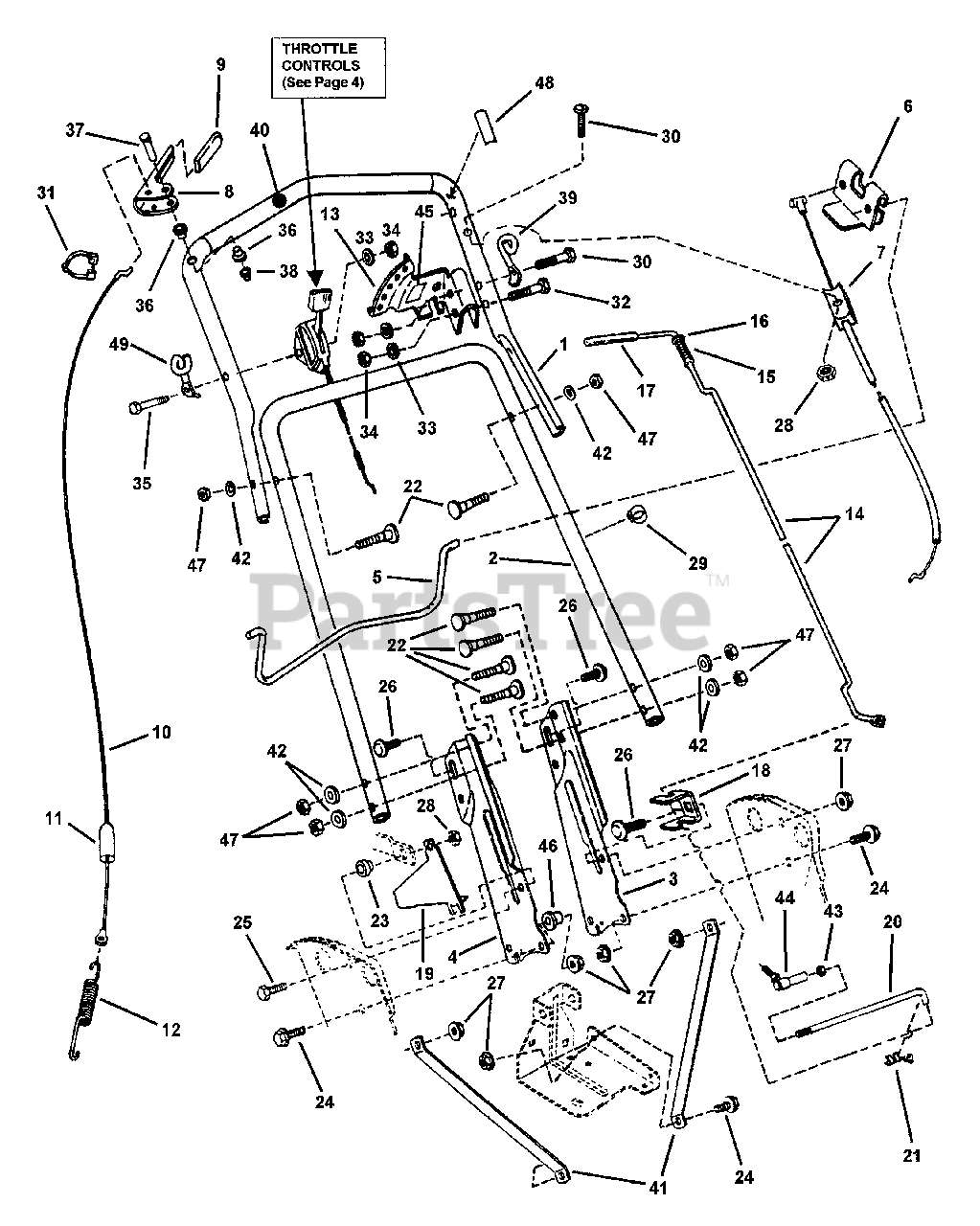

C 216012RV (82409) - Snapper 21" Walk-Behind Mower, 6hp Handles & Controls Parts Diagram

21" Walk-Behind Mower, 6hp

Handles & Controls Parts Diagram

  • Title

1

Snapper 7046914

HANDLE, Upper

Note: Was 24889, Used on Self-Propelled

$63.99

$

Usually ships in 2-12 days

0

1

Snapper 7072709

HANDLE, Upper
(Superseded to 7072709YP)

Note: Used on Push

$67.99

$

Usually ships in 2-12 days

0

2

Snapper 7024890

HANDLE, Middle
(Superseded to 7024890YP)

$152.99

$

Usually ships in 2-12 days

0

3

Snapper 7033986

HANDLE, Lower Right Hand
(Superseded to 7033986AYP)

$36.99

$

In Stock, only 4 left!

0

4

Snapper 7033985

HANDLE, Lower Left Hand
(Superseded to 7033985AYP)

$43.99

$

Usually ships in 2-12 days

0

5

Snapper 7024978

CONTROL, Blade (16.6" Wide)
(Superseded to 7024978YP)

$49.99

$

Usually ships in 2-12 days

0

6

Snapper 7033904

CLIP, Blade Control
(Superseded to 7034872YP)

$5.99

$

In Stock, Qty 5

0

7

Snapper 7026875

CABLE, Blade Control (47.56/5.34 length)
(Superseded to 7026875YP)

Note: Used on Kawasaki Engines

$21.99

$

Usually ships in 2-12 days

0

7

Snapper 7035881

CABLE, Blade Control (57.50/5.52 length, snap-in)
(Superseded to 7035881YP)

Note: Used on Robin Engine (4-Cycle)

$19.99

$

In Stock, only 1 left!

0

7

Snapper 7027393

CABLE, Blade Control (46.12/5.38 length)
(Superseded to 7027393YP)

Note: Used on Robin Engine (2-Cycle)

$17.99

$

Usually ships in 2-12 days

0

8

Snapper 7032826

HANDLE, Wheel Drive
(Superseded to 7074473BMYP)

$16.99

$

In Stock, Qty 20+

0

9

Snapper 7014307

GRIP, Wheel Drive Handle
(Superseded to 7014307YP)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7025013

CABLE, Clutch Pull (Z-Bend) (41.44" length)
(Superseded to 7025013YP)

$17.99

$

In Stock, Qty 20+

0

11

Snapper 7012121

COVER, Vinyl
(Superseded to 7012121YP)

$

$

Not available

12

Snapper 7012122

SPRING, Clutch
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

13

Snapper 7038478

SECTOR, Speed
(Superseded to 7038478YP)

$82.99

$

Usually ships in 2-12 days

0

14

Snapper 7029911

LEVER, Speed Control
(Superseded to 7029911YP)

$58.99

$

Usually ships in 2-12 days

0

15

Snapper 7012093

SPRING, Speed Control
(Superseded to 7012093YP)

$4.49

$

In Stock, only 4 left!

0

16

Snapper 7090188

WASHER, 3/8" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

17

Snapper 7023801

GRIP, Speed Control Handle
(Superseded to 7023801YP)

$4.49

$

In Stock, Qty 6

0

18

Snapper 7032830

ANCHOR, Speed Control
(Superseded to 7032830YP)

$26.99

$

In Stock, only 1 left!

0

19

Snapper 7032408

GUIDE, Lower V-Belt
(Superseded to 7032408YP)

$26.99

$

Usually ships in 2-12 days

0

20

Snapper 7015752

ROD, Transfer
(Superseded to 7015752YP)

$22.99

$

Usually ships in 2-12 days

0

21

Snapper 7010937

CLIP, Transfer Rod
(Superseded to 7010937YP)

$7.49

$

In Stock, only 4 left!

0

22

Snapper 7091190

BOLT, 5/16-18 x 1-1/2" Curved Head
(Superseded to 704063)

$5.49

$

In Stock, Qty 5

0

23

Snapper 7012114

BUSHING, Differential
(Superseded to 7012114SM)

$4.99

$

In Stock, Qty 9

0

24

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock Gr. 5
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

25

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Cap Grade 5
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

26

Snapper 7090799

BOLT, 5-16-18 x 5/8" Carriage Grade 5
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0

27

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

28

Snapper 7091606

NUT, 5/16-24 Hex Center Lock Grade B
(Superseded to 703896)

Note: Was 91074

$3.49

$

In Stock, Qty 20+

0

29

Snapper 7023813

CLIP, Wiring Harness
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 20+

0

30

Snapper 7090545

SCREW, 1/4-20 x 1-3/4" Hex Cap Grade 5

$

$

Not available

31

Snapper 7026219

CLAMP, 7/8" Double Cable
(Superseded to 7026219YP)

$4.49

$

In Stock, Qty 10

0

32

Snapper 7079577

SCREW, 1/4-20 x 1-1/2" Hex Cap Grade 5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

33

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 6

0

34

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 91100

$3.49

$

In Stock, Qty 20+

0

35

Snapper 7090505

SCREW, 1/4-20 x 2" Hex Cap Grade 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

36

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7023792

PIN, Clutch Handle
(Superseded to 704031)

$3.99

$

In Stock, Qty 20+

0

38

Snapper 7091020

NUT, Push (for handle pin)
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7022779

GUIDE, Rope (Left Hand)
(Superseded to 7022779YP)

$7.49

$

Usually ships in 2-12 days

0

40

Snapper 7022460

GRIP, Foam

$

$

Not available

41

Snapper 7046707

STRAP, Handle
(Superseded to 7046707YP)

$34.99

$

In Stock, only 2 left!

0

42

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

43

Snapper 7090095

NUT, 1/4-28 Hex, Grade 5
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

44

Snapper 7015753

JOINT, Ball
(Superseded to 7015753YP)

$10.99

$

In Stock, only 1 left!

0

45

Snapper 7024087

DECAL, Speed Selector

$

$

Not available

46

Snapper 7090895

NUT, 5/16-18 Tee
(Superseded to 7090895YP)

$3.49

$

Usually ships in 2-12 days

0

47

Snapper 7091511

NUT, 5/16-18 Hex Grade 5
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

48

Snapper 7024211

DECAL, Blade Control
(Superseded to 7024211YP)

$14.99

$

In Stock, Qty 5

0

49

Snapper 7026141

GUIDE, Rope (Right Hand)

$

$

Not available
