C 21507B (83400) - Snapper 21" Walk-Behind Mower, 5hp Handles & Controls Parts Diagram

21" Walk-Behind Mower, 5hp

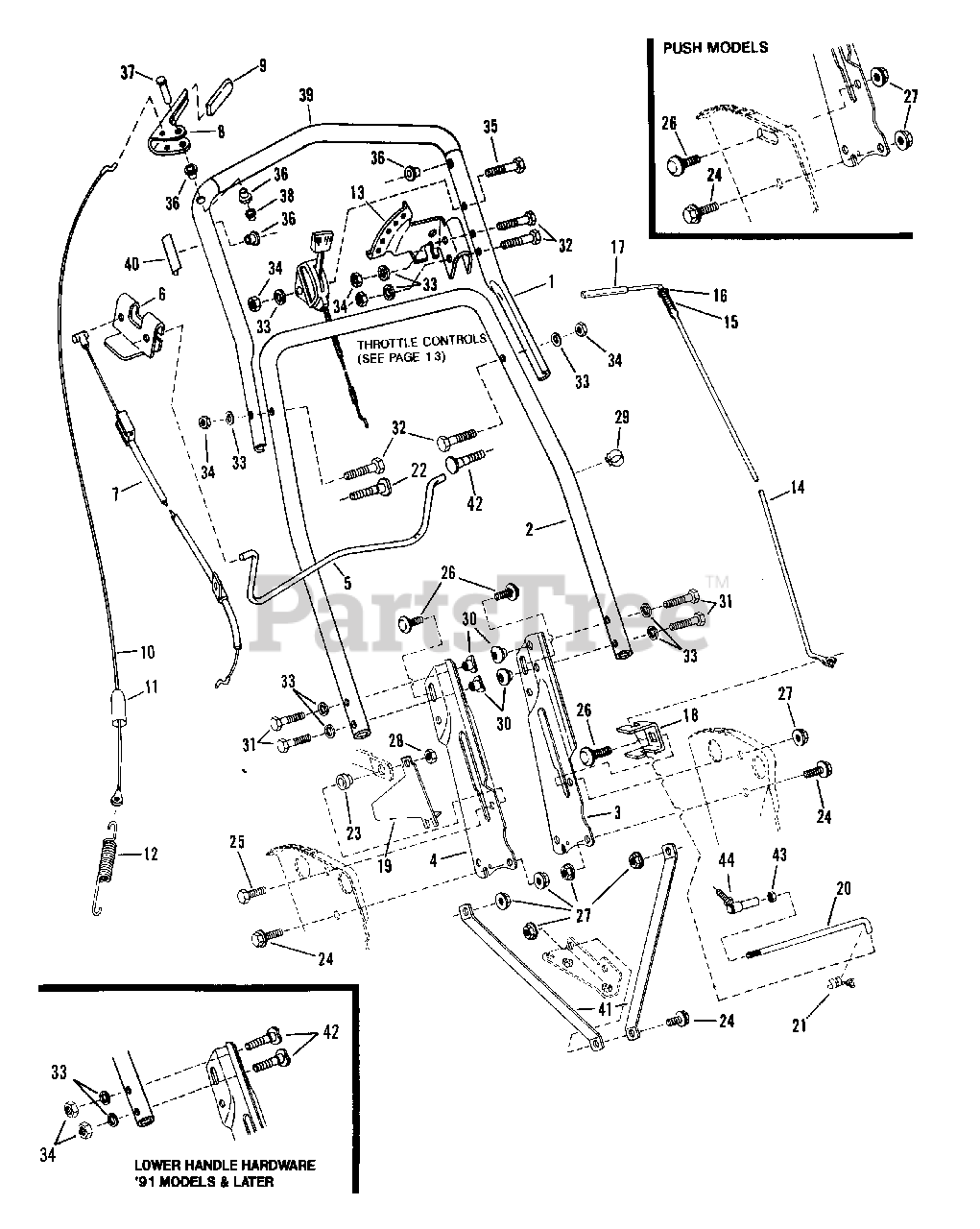

Handles & Controls Parts Diagram

  • Title

1

Snapper 7033444

HANDLE, Upper

Note: Was 36349, Used on Push

$

$

Not available

Snapper 7033444

HANDLE, Upper

Note: Was 36356, Used on Self-Propelled

$

$

Not available

2

Snapper 7036351

HANDLE, Middle
(Superseded to 7036351YP)

Note: Used on All

$53.99

$

Usually ships in 2-12 days

0

3

Snapper 7033985

HANDLE, Lower Left Hand
(Superseded to 7033985AYP)

Note: Was 38469, Used On All

$43.99

$

Usually ships in 2-12 days

0

4

Snapper 7033986

HANDLE, Lower Right Hand
(Superseded to 7033986AYP)

Note: Was 38468, Used On All

$36.99

$

In Stock, only 4 left!

0

5

Snapper 7017072

BAIL, OPC Control (12.2" Wide)
(Superseded to 7047011YP)

Note: Used on All

$

$

Not available

6

Snapper 7033904

CLIP, Blade Control
(Superseded to 7034872YP)

Note: Was 32829, Used on All;(Same either side)

$5.99

$

In Stock, Qty 5

0

7

Snapper 7023824

CABLE, Blade Control

Note: Used on Briggs

$10.99

$

In Stock, only 3 left!

0

7

Snapper 7017446

CABLE, Blade Control

Note: Was 23847, Used on Robin Engines (4-cycle Engines)

$

$

Not available

7

Snapper 7017446

CABLE, Blade Control

Note: Used on Robin Engines (2-cycle Engines)

$

$

Not available

8

Snapper 7032826

HANDLE, Wheel Drive
(Superseded to 7074473BMYP)

Note: Used on Self-propelled

$16.99

$

In Stock, Qty 20+

0

9

Snapper 7014307

GRIP, Wheel Drive Handle
(Superseded to 7014307YP)

Note: Used on Self-propelled

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7023794

CABLE, Clutch Pull (Z-BEND)
(Superseded to 7023794YP)

Note: Used on Self-propelled

$10.99

$

In Stock, only 2 left!

0

11

Snapper 7012121

COVER, Vinyl
(Superseded to 7012121YP)

Note: Used on Self-propelled;(Part of item 10)

$

$

Not available

12

Snapper 7012122

SPRING, Clutch
(Superseded to 7012122YP)

Note: Used on Self-propelled

$9.49

$

In Stock, Qty 20+

0

13

Snapper 7038478

SECTOR, Speed
(Superseded to 7038478YP)

Note: Used on Self-propelled

$82.99

$

Usually ships in 2-12 days

0

14

Snapper 7012317

LEVER, Speed Control

Note: Used on Self-propelled

$

$

Not available

15

Snapper 7012093

SPRING, Speed Control
(Superseded to 7012093YP)

Note: Used on Self-propelled

$4.49

$

In Stock, only 4 left!

0

16

Snapper 7090188

WASHER, 3/8" Flat
(Superseded to 703350)

Note: Used on All-different locations

$4.49

$

In Stock, only 1 left!

0

17

Snapper 7023801

GRIP, Speed Control Handle
(Superseded to 7023801YP)

Note: Used on Self-propelled

$4.49

$

In Stock, Qty 6

0

18

Snapper 7032830

ANCHOR, Speed Control
(Superseded to 7032830YP)

Note: Used on Self-propelled

$26.99

$

In Stock, only 1 left!

0

19

Snapper 7032408

GUIDE, Lower V-Belt
(Superseded to 7032408YP)

Note: Used on Self-propelled

$26.99

$

Usually ships in 2-12 days

0

20

Snapper 7015752

LINK, Transfer
(Superseded to 7015752YP)

Note: Used on Self-propelled

$22.99

$

Usually ships in 2-12 days

0

21

Snapper 7010937

CLIP, Transfer Rod
(Superseded to 7010937YP)

Note: Used on Self-propelled

$7.49

$

In Stock, only 4 left!

0

22

Snapper 7091013

BOLT, 5/16-18 x 2 Curved Head
(Superseded to 7091013SM)

Note: Used on All ('91 Models & Later)

$5.49

$

In Stock, only 1 left!

0

23

Snapper 7012114

BUSHING, Differential
(Superseded to 7012114SM)

Note: Used on Self-propelled

$4.99

$

In Stock, Qty 9

0

24

Snapper 7090595

BOLT, 5/16-18 x 3/4 Flange Lock
(Superseded to 703354)

Note: Used on Self-propelled

$5.49

$

In Stock, Qty 10

0

25

Snapper 7090238

CAPSCREW, 5/18-24 x 1
(Superseded to 703301)

Note: Used on Self-propelled

$3.99

$

In Stock, only 2 left!

0

26

Snapper 7090799

BOLT, 5/16-18 x 5/8 Carriage
(Superseded to 703447)

Note: Was 91026 (Used on All (different locations)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 905S5

NUT, 5/16-18 Hex Flange Lock

Note: Used on All (different locations)

$

$

Currently unavailable

28

Snapper 7090222

NUT, 5/16-24 Center Lock
(Superseded to 703896)

Note: Used on Self-propelled

$3.49

$

In Stock, Qty 20+

0

29

Snapper 7023813

CLIP Cable/Wiring
(Superseded to 7023813SM)

Note: Used on All

$3.49

$

In Stock, Qty 20+

0

30

Snapper 7023793

NUT, 5/16-18 Curved Head

Note: Used on All ('90 Models)

$

$

Not available

31

Snapper 7027230

SCREW, 5/16-18 x 2" Hex Cap
(Superseded to 703820)

Note: Was 90548 (Used on All ('90 Models)

$3.99

$

In Stock, only 4 left!

0

32

Snapper 7091025

CAPSCREW, 1/4-28 x 1-3/8
(Superseded to 7091025YP)

Note: Used on Self-propelled

$3.99

$

Usually ships in 2-12 days

0

33

Snapper 7090053

LOCKWASHER, 1/4 Internal Tooth
(Superseded to 703462)

Note: Was 91023 (Used on All (different locations) ('90 Models))

$4.49

$

In Stock, Qty 6

0

33

Snapper 7090391

LOCKWASHER, Internal Tooth
(Superseded to 703587)

Note: Was 91068 (Used on All (different locations) ('91 Models & Later))

$4.49

$

In Stock, Qty 20+

0

34

Snapper 7090095

NUT, 1/4-20 Hex
(Superseded to 7090095FS)

Note: Was 91024 (Used on All (different locations) ('90 Models)

$3.49

$

Usually ships in 2-12 days

0

34

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196 (Used on All (different locations) ('91 Models & Later))

$3.49

$

In Stock, Qty 20+

0

35

Snapper 7091022

CAPSCREW, 1/4-28 x 1-3/4

Note: Used on All (throttle control)

$

$

Not available

36

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

Note: Used on All

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7023792

PIN, Clutch Handle
(Superseded to 704031)

Note: Used on Self-propelled

$3.99

$

In Stock, Qty 20+

0

38

Snapper 7091020

PUSH-NUT (for handle pin)
(Superseded to 7091020YP)

Note: Used on Self-propelled

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7023901

GRIP, Foam 18"
(Superseded to 7023901YP)

Note: Used on Push

$8.49

$

In Stock, only 2 left!

0

39

Snapper 7022460

GRIP, Foam 13.5"

Note: Was 23841, Used on Self-Propelled

$

$

Not available

40

Snapper 7023745

DECAL, Blade Control

Note: Used on All; (See "Decals" illustration and parts list)

$

$

Currently unavailable

40

Snapper 7023886

DECAL, Blade Control

Note: Used on All (European Models)

$

$

Not available

41

Snapper 7032833

STRAP, Handle
(Superseded to 7032833YP)

Note: Was 37729, Used on All ('90 Models & Earlier)

$33.99

$

Usually ships in 2-12 days

0

41

Snapper 7032833

STRAP, Handle
(Superseded to 7032833YP)

Note: Used on All ('91 Models & Later)

$33.99

$

Usually ships in 2-12 days

0

42

Snapper 7091540

BOLT, 5/16-18 x 1-1/2" Curved Head
(Superseded to 703906)

Note: Was 17720, Used on All ('91 Models & Later)

$4.99

$

In Stock, only 4 left!

0

43

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

Note: Used on Self-Propelled

$3.49

$

Usually ships in 2-12 days

0

44

Snapper 7015753

JOINT, Ball
(Superseded to 7015753YP)

Note: Used on SeIf-Propelled

$10.99

$

In Stock, only 1 left!

0
