C 210 (CMXGVAMKC25C) (21BKC25C793) - Craftsman Cultivator (2021) Engine Assembly Parts Diagram

Cultivator

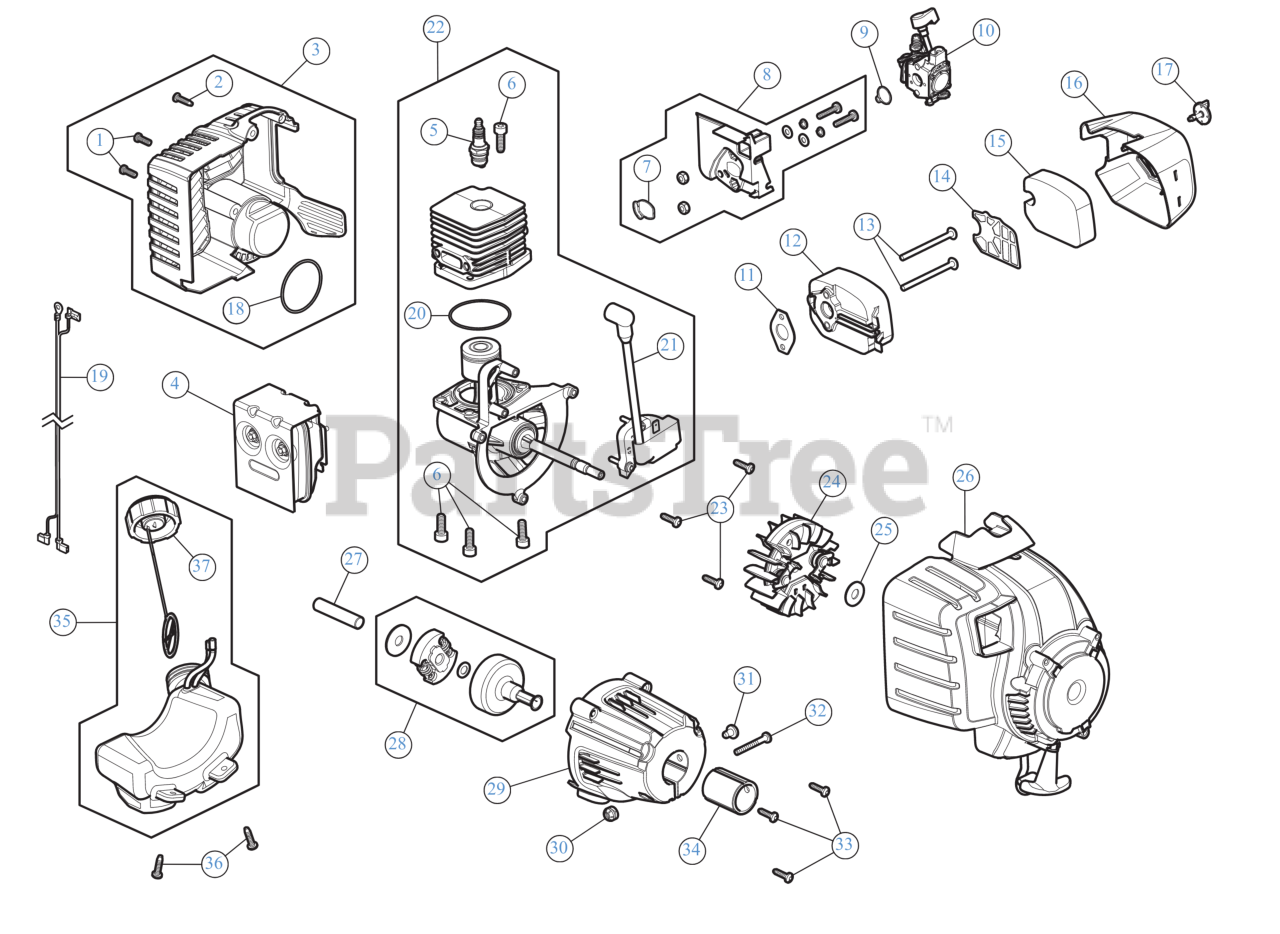

Engine Assembly Parts Diagram

  • Title

1

MTD 791-181862

SCREW:10-32X.562:#8P
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

2

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, only 4 left!

0

3

MTD 753-06833

HOUSING-ENGINE REAR

Note: (Incl. 1, 2 & 18)

$11.99

$

In Stock, Qty 5

0

4

MTD 753-06792

MUFFLER ASSEMBLY

$30.99

$

Usually ships in 3-6 days

0

5

MTD 753-06847

SPARK PLUG

$7.49

$

In Stock, Qty 20+

0

6

MTD 791-182723

SCREW, 1/4-20 x .75

$4.49

$

In Stock, Qty 13

0

7

MTD 753-06184

O-RING

$3.49

$

In Stock, only 1 left!

0

8

MTD 753-06189

INTAKE ASSEMBLY

Note: (Incl. 7)

$7.99

$

In Stock, only 1 left!

0

9

MTD 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

10

MTD 753-06288

CARBURETOR

$37.99

$

In Stock, Qty 6

0

11

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

12

MTD 753-06916

AIR CLEANER BASE

$4.99

$

In Stock, only 2 left!

0

13

MTD 710-04517

SCREW 10-32X2.5

$5.49

$

In Stock, Qty 20+

0

14

MTD 753-06835

PLATE

$3.49

$

In Stock, only 2 left!

0

15

MTD 753-06836

FILTER

$3.49

$

In Stock, only 4 left!

0

16

MTD 753-06837

AIR CLEANER COVER

$3.99

$

In Stock, only 4 left!

0

17

MTD 753-08008

KNOB COVER

$3.49

$

Usually ships in 3-6 days

0

18

MTD 753-06174

O-RING

$2.99

$

In Stock, Qty 20+

0

19

MTD 753-06839

LEAD WIRE

$7.49

$

Usually ships in 3-6 days

0

20

MTD 753-06275

O-RING

$2.99

$

In Stock, Qty 13

0

21

MTD 753-06840

MODULE

$36.99

$

In Stock, only 1 left!

0

22

MTD 753-06841

SHORTBLOCK

Note: (Incl. 5, 6, 20 & 21)

$106.99

$

Usually ships in 3-6 days

0

23

MTD 791-181862

SCREW:10-32X.562:#8P
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

24

MTD 753-06175

FLYWHEEL ASSEMBLY

$19.99

$

In Stock, only 2 left!

0

25

MTD 753-06247

BELL WASHER

$3.49

$

In Stock, only 1 left!

0

26

MTD 841-013541S

STARTER HOUSING

$27.99

$

In Stock, only 1 left!

0

27

MTD 753-06218

SPACER

$2.99

$

In Stock, only 1 left!

0

28

MTD 753-05860

SMALL CLUTCH ASSEMBLY W/SMALL DRUM

$25.99

$

In Stock, Qty 10

0

29

MTD 753-06843

CLUTCH COVER ASSEMBLY

$11.99

$

Usually ships in 3-6 days

0

30

MTD 712-0161

HEX NUT

$4.49

$

In Stock, only 2 left!

0

31

MTD 710-05401

SCREW 1/4-20X3/8

$3.49

$

Usually ships in 3-6 days

0

32

MTD 9689A

SCREW

$11.99

$

Usually ships in 3-6 days

0

33

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, only 4 left!

0

34

MTD 735-04278

RUBBER SPACER

$4.49

$

Usually ships in 3-6 days

0

35

MTD 753-06846

FUEL TANK

Note: (Incl. 37)

$16.99

$

In Stock, only 2 left!

0

36

MTD 791-181930

SCREW:10-6 x .75

$6.99

$

In Stock, only 1 left!

0

37

MTD 753-06857

FUEL CAP

$7.99

$

In Stock, Qty 5

0
