C 210 (CMXGVAMKC25C) (21AKC25C793) - Craftsman Cultivator (2019) General Assembly Parts Diagram

Cultivator

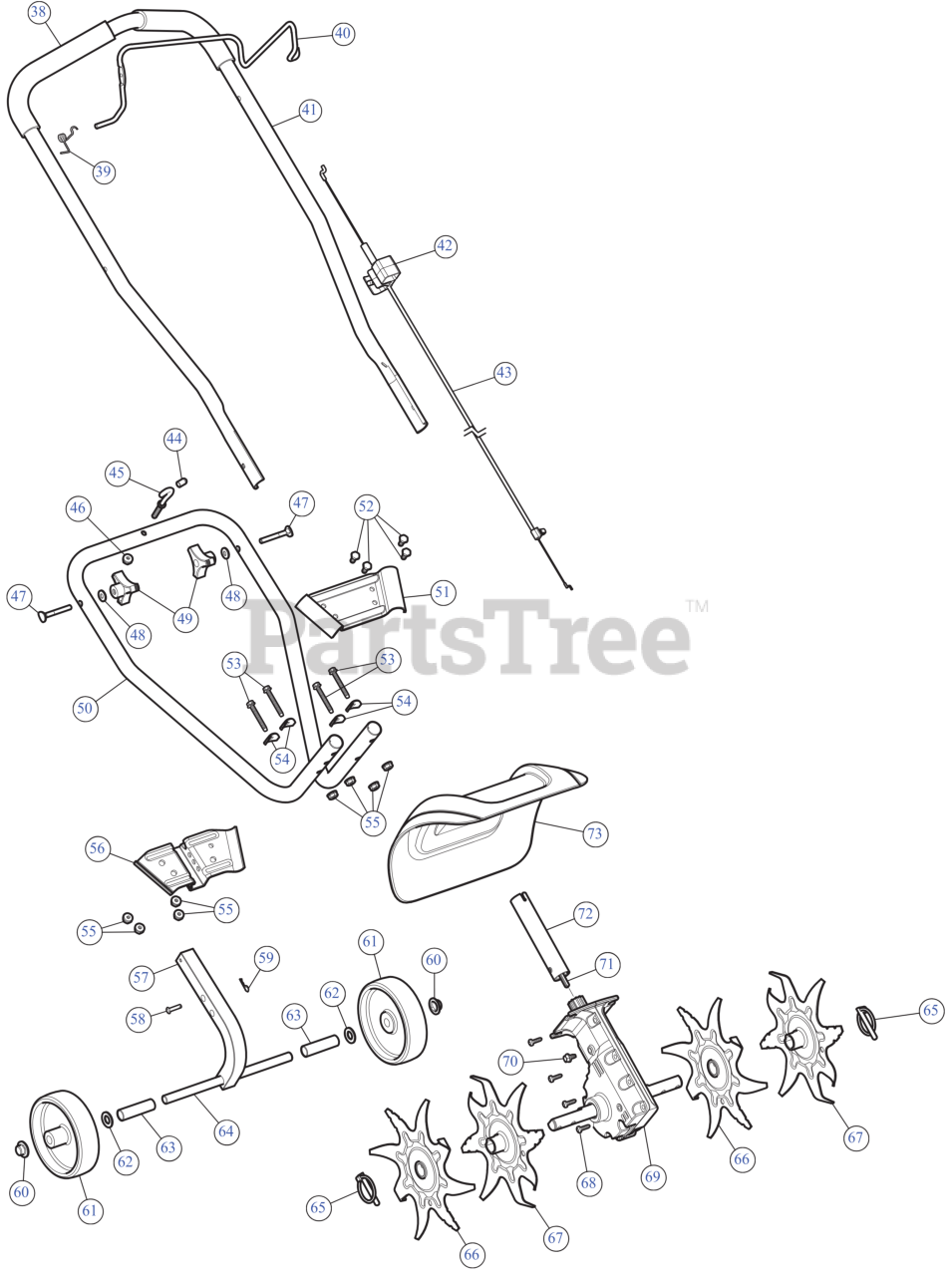

General Assembly Parts Diagram

  • Title

38

MTD 720-0294A

FOAM GRIP - 9"

$7.49

$

In Stock, Qty 5

0

39

MTD 753-05940

TORSION SPRING

$3.99

$

In Stock, Qty 9

0

40

MTD 753-06808

BAIL CONTROL

$7.99

$

Usually ships in 3-6 days

0

41

MTD 753-06319

HANDLE UPR

$23.99

$

Usually ships in 3-6 days

0

42

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

43

MTD 753-06831

THROTTLE CABLE

$11.99

$

In Stock, only 1 left!

0

44

MTD 735-04246

CAP

$3.49

$

Usually ships in 3-6 days

0

45

MTD 10591

ROPE GUIDE

$7.49

$

Usually ships in 3-6 days

0

46

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

47

MTD 791-182899

BOLT, CARRIAGE CRV

$7.99

$

Usually ships in 3-6 days

0

48

MTD 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

49

MTD 791-182677

KNOB, 3-PRONG ¼ "-

$14.99

$

In Stock, only 2 left!

0

50

MTD 753-06809

HANDLE LOWER

$24.99

$

Usually ships in 3-6 days

0

51

MTD 753-06813

BRACKET UPR

$4.49

$

Usually ships in 3-6 days

0

52

MTD 710-3013

SCREW 1/4-20X.5 GR5

$4.99

$

In Stock, only 1 left!

0

53

MTD 710-1026

SCREW 1/4-20 x 1.750

$6.99

$

In Stock, Qty 13

0

54

MTD 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

55

MTD 912-3027

LOCK NUT 1/4

$4.49

$

In Stock, Qty 20+

0

56

MTD 753-06814

BRACKET LOWER

$4.99

$

Usually ships in 3-6 days

0

57

MTD 753-06817

TUBE SQUARE

$11.99

$

Usually ships in 3-6 days

0

58

MTD 714-04106

CLEVIS PIN

$3.49

$

Usually ships in 3-6 days

0

59

MTD 914-0104

COTTER PIN .072 DIA. 1.13 LG
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

60

MTD 726-0299

PUSH CAP

$8.49

$

In Stock, Qty 20+

0

61

MTD 753-04437

WHEEL:5.0 x 1.38

Note: (Incl. 60)

$22.99

$

Usually ships in 3-6 days

0

62

MTD 791-182910

WASHER

$7.99

$

Usually ships in 3-6 days

0

63

MTD 753-06815

SPACER

$3.49

$

Usually ships in 3-6 days

0

64

MTD 753-06816

AXLE

$5.49

$

Usually ships in 3-6 days

0

65

MTD 753-05985

CLICK PIN

$6.49

$

In Stock, only 1 left!

0

66

MTD 753-05987

TINE ASSEMBLY (LH)I (RH)O

Note: (Left Inner, Right Outer)

$40.99

$

In Stock, only 1 left!

0

67

MTD 753-05986

TINE ASSEMBLY (LH)O (RH)I

Note: (Left Outer, Right Inner)

$40.99

$

In Stock, only 1 left!

0

68

MTD 791-182195

SCREW #

$7.49

$

In Stock, only 1 left!

0

69

MTD 753-06063

GEARBOX ASSEMBLY CULT

Note: (Incl. 68)

$133.99

$

In Stock, Qty 5

0

70

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

71

MTD 753-04499

SHAFT-FLEX

$29.99

$

In Stock, Qty 6

0

72

MTD 753-06812

BOOM ASSEMBLY

Note: (Incl. 71)

$10.99

$

Usually ships in 3-6 days

0

73

MTD 753-06810

TINE SHIELD

$18.99

$

Usually ships in 3-6 days

0
