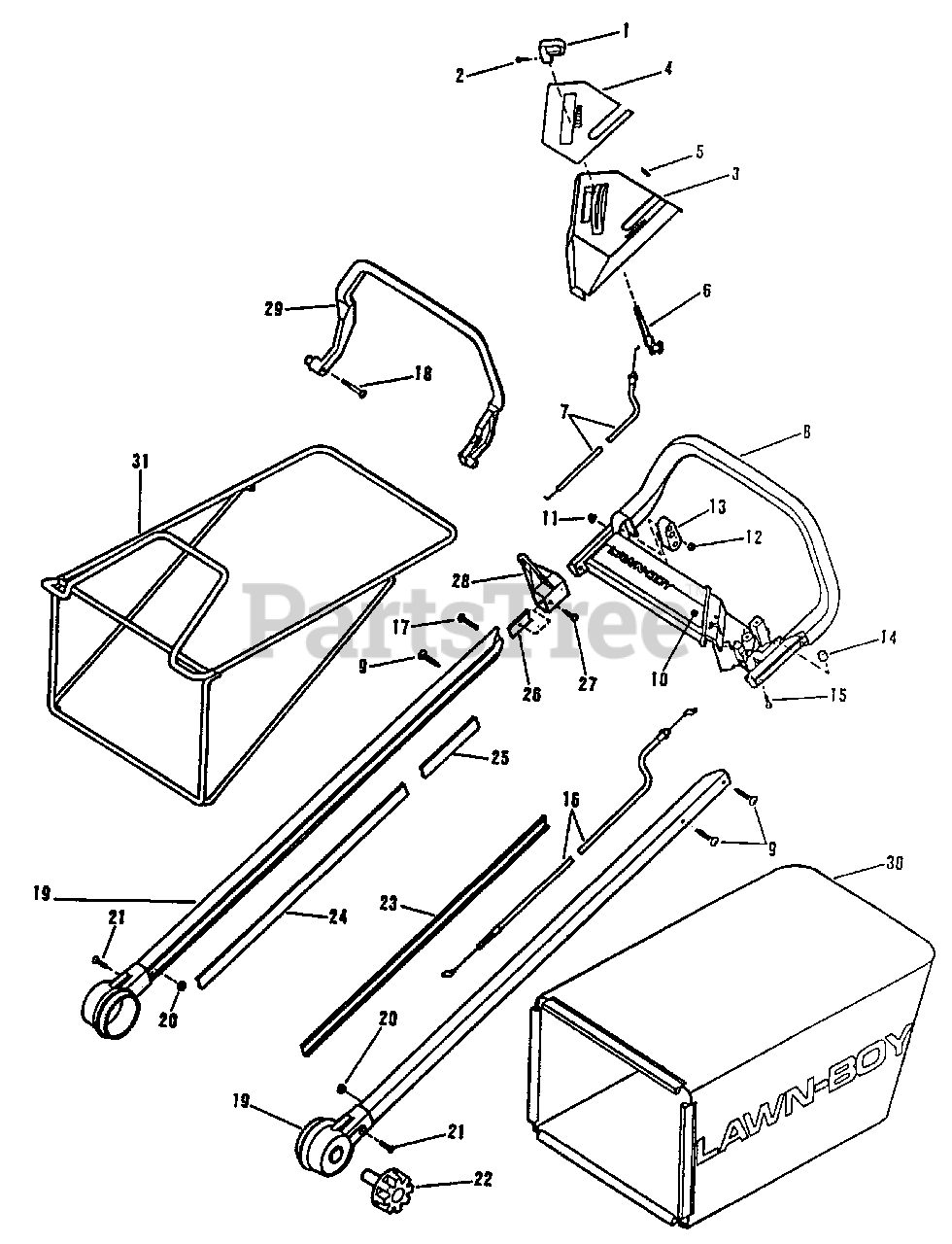

C 21 ZPR A - Lawn-Boy Walk-Behind Mower (SN: K00000001 - K99999999) (1991) HANDLE GROUP MODELS: C21ZPRA & B Parts Diagram

Walk-Behind Mower

HANDLE GROUP MODELS: C21ZPRA & B Parts Diagram

  • Title

1

Lawn-Boy 684399

Throttle Knob Assembly

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 614013

Set Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

3

Lawn-Boy 684425

Upper Cover Assy (ZPRA)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684266

Upper Cover Assy (ZPRB)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 613480

Plate

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

5

Lawn-Boy 145482

Plug

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 684446

Throttle Lever

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 684210

Throttle Cable Assembly

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 684581

Handle and Decal Assy (ZPRA)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684424

Handle and Decal Assy (ZPRB)
(Superseded to 684581)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 614023

Thread Forming Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

10

Lawn-Boy 613980

Decal-Lawn-Boy

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

11

Lawn-Boy 613406

Locknut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 602315

Locknut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 613412

Bail Block

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 700790

Bumper

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 613549

Screw-Cover to Handle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 684209

Engine Brake Cable Assembly

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 613405

Screw-Extrusion & Block to Handle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 613555

Screw-Bail Pivot

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 684150

Knuckle and Extrusion
(Superseded to 684695)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$234.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 613406

Nut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

21

Lawn-Boy 613401

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

22

Lawn-Boy 613358

Handle Adjustment Knob

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 613552

Handle Insert-Cable Side
(Superseded to 614518)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 613402

Handle Insert-Below Guide

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 613601

Handle Insert-Above Guide

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 613393

Nut Plate

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 611499

Screw-Rope Guide to Handle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 684151

Rope Guide

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 613416

Engine Brake Bail

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 684189

Rear Grass Bag

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 684130

Catcher Bag Frame

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$237.45

$

In Stock, only 1 left!

0
