C 21 ZPN - Lawn-Boy Walk-Behind Mower (SN: K00000001 - K99999999) (1991) HANDLE GROUP MODEL: C21ZPN Parts Diagram

Walk-Behind Mower

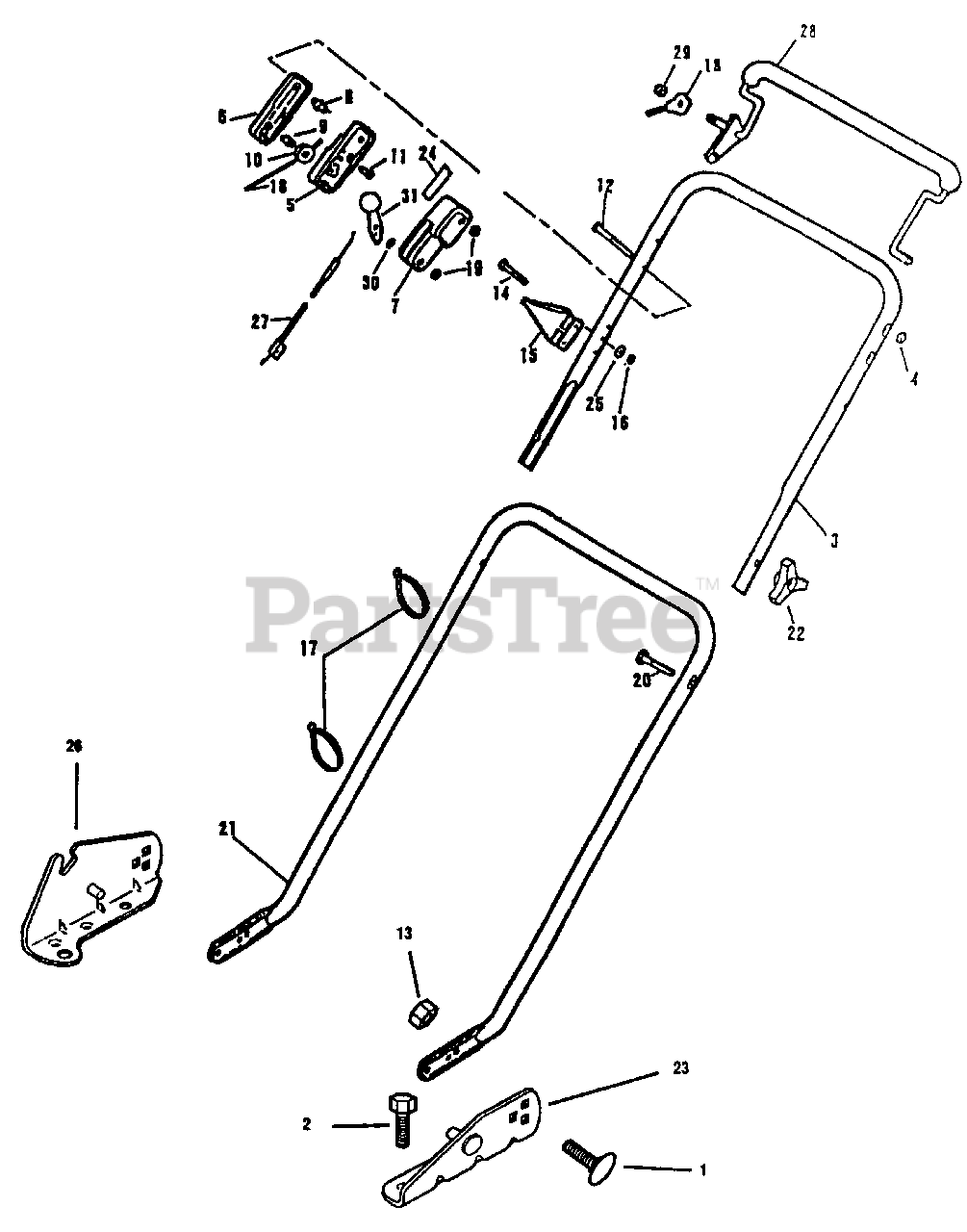

HANDLE GROUP MODEL: C21ZPN Parts Diagram

  • Title

1

Lawn-Boy 800358

Bolt-Handle Mounting
(Superseded to 3230-22)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

2

Lawn-Boy 607188

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 613054

Top Handle
(Superseded to 614516)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 605546

Pushnut
(Superseded to 32112-11)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 4 left!

0

5

Lawn-Boy 612633

Control Case-Center

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 611777

Control Case-Outer

Note: Important Note: Replacement parts may not always be available in matching colors.

$32.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 612634

Control Case-Inner

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 611541

Column

Note: Important Note: Replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 611542

Pin

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 612564

Pulley

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 611543

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

12

Lawn-Boy 611799

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 145577

Lock Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 611233

Screw-Truss Head

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 153254

Rope Guide Assembly
(Superseded to 682684)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 602315

Locknut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 614249

Tie Strap

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

18

Lawn-Boy 683943

Control Cable Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$128.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 611258

Nut-Hex-Centerlock

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 145498

Screw
(Superseded to 614697)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 13

0

21

Lawn-Boy 613048

Handle-Bottom
(Superseded to 92-2920-05)

Note: Important Note: Replacement parts may not always be available in matching colors.

$131.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 614243

Knob
(Superseded to 98-7134)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 16

0

23

Lawn-Boy 684058

Bracket-Handle-L.H.
(Superseded to 684058-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$81.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 612698

Decal-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 602945

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 684057

Bracket-Handle-R.H.
(Superseded to 684057-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 612567

Cable-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$83.99

$

In Stock, only 2 left!

0

28

Lawn-Boy 683478

Control Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$138.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 612168

Nut-Acorn

Note: Important Note: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 612586

Washer-Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

31

Lawn-Boy 683663

Lever and Knob Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
