C 21 ZMR - Lawn-Boy Walk-Behind Mower (SN: J00000001 - J99999999) (1990) Carburetor Group Model: C21cpna Parts Diagram

Walk-Behind Mower

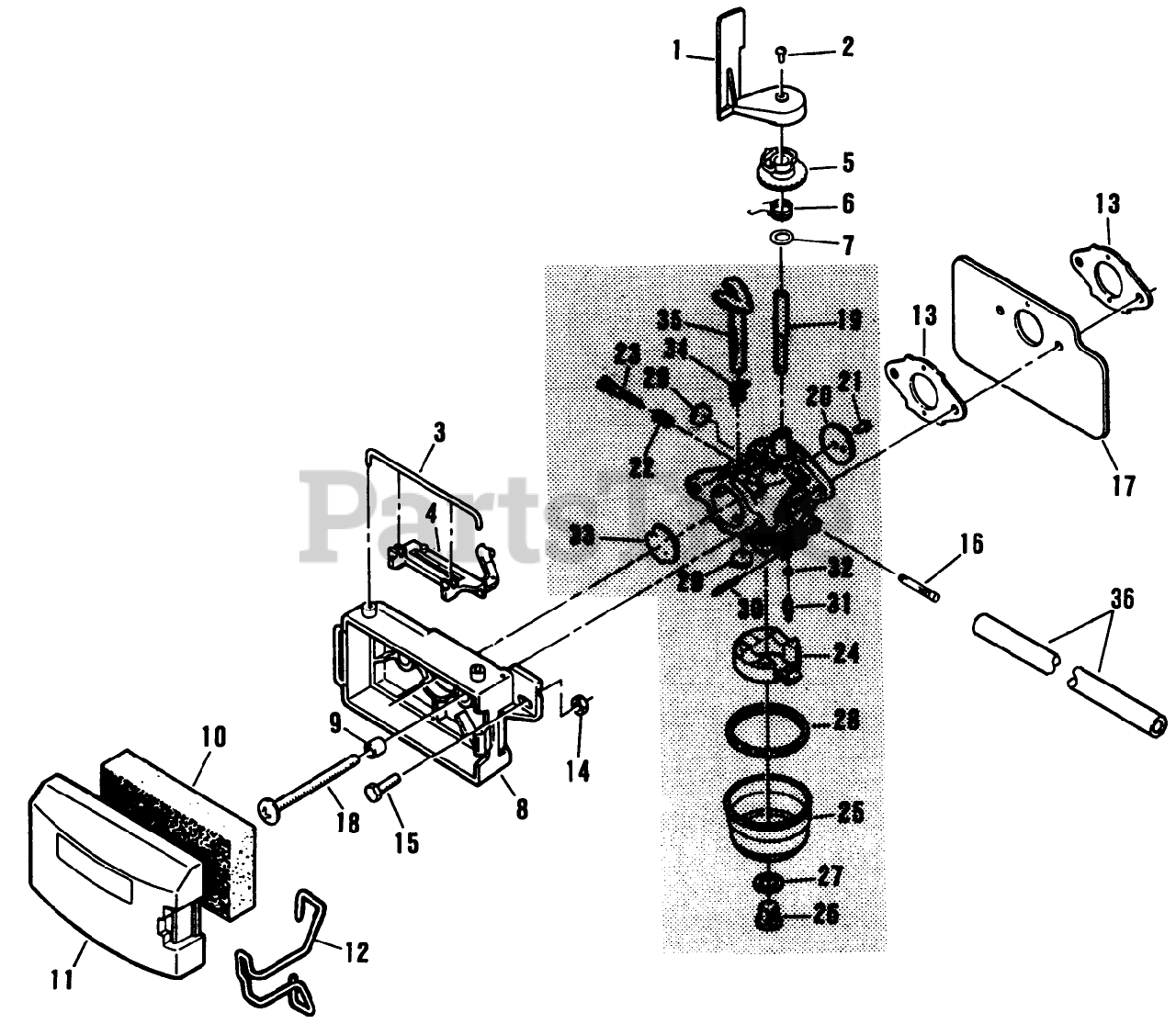

Carburetor Group Model: C21cpna Parts Diagram

  • Title

1

Lawn-Boy 612505

AIR VANE F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 605522

SCREW F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 610165

RETAINER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 15

0

4

Lawn-Boy 612502

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 612757

COLLAR A/VAVE F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 613142

THROTTLE SPR E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 308052

WASHER VF

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 612504

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 612503

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 609493

See Supercession: 107-4621
(Superseded to 107-4621)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

11

Lawn-Boy 611377

See Supercession: 93-1231
(Superseded to 93-1231)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 610383

RETAINER-COVER, FILTER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 612574

GASKET CARB S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 13

0

14

Lawn-Boy 328712

See Supercession: 3217-26
(Superseded to 3217-26)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 314576

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

16

Lawn-Boy 612974

SCREEN FUEL PITTS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 10

0

17

Lawn-Boy 613143

SHIELD, CARB F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 612507

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 4 left!

0

Lawn-Boy 684352

CARB. AY S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$360.99

$

Usually ships in 3-6 days

0

Lawn-Boy 684352

CARB. AY S

Note: NOTE: Carburetor Assembly (Part No. 684352) includes all parts within grey area on illustration.

$360.99

$

Usually ships in 3-6 days

0

Lawn-Boy 684286

KIT THROTTLE S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$60.99

$

Usually ships in 3-6 days

0

19

Throttle Shaft

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Throttle Shaft

Note: Parts shown with bullet included with kit above.

$

$

Not available

20

Throttle Plate

Note: Parts shown with bullet included with kit above.

$

$

Not available

20

Throttle Plate

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Screw-Throttle Plate

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Screw-Throttle Plate

Note: Parts shown with bullet included with kit above.

$

$

Not available

Lawn-Boy 684285

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Spring-Idle Needle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Spring-Idle Needle

Note: Parts shown with bullet included with kit above.

$

$

Not available

23

Idle Needle

Note: Parts shown with bullet included with kit above.

$

$

Not available

23

Idle Needle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 683783

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683782

BOWL KIT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$53.99

$

Usually ships in 3-6 days

0

25

Fuel Bowl

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Fuel Bowl

Note: Parts shown with bullet included with kit above.

$

$

Not available

26

Screw-Bowl Retainer

Note: Parts shown with bullet included with kit above.

$

$

Not available

26

Screw-Bowl Retainer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Gasket Kit

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Gasket Kit

Note: Parts shown with bullet included with kit above.

$

$

Not available

Lawn-Boy 683778

GASKET KIT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Bowl Retainer Gasket

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Bowl Retainer Gasket

Note: Parts shown with bullet included with kit above.

$

$

Not available

28

Fuel Bowl Gasket

Note: Parts shown with bullet included with kit above.

$

$

Not available

28

Fuel Bowl Gasket

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683777

REPAIR KIT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Plug-Welch

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Plug-Welch

Note: Parts shown with bullet included with kit above.

$

$

Not available

30

Float Shaft

Note: Parts shown with bullet included with kit above.

$

$

Not available

30

Float Shaft

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Inlet Needle Valve

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Inlet Needle Valve

Note: Parts shown with bullet included with kit above.

$

$

Not available

32

Valve Seat

Note: Parts shown with bullet included with kit above.

$

$

Not available

32

Valve Seat

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683781

CHOKE KIT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$45.99

$

In Stock, only 1 left!

0

33

Choke Plate

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Choke Plate

Note: Parts shown with bullet included with kit above.

$

$

Not available

34

Choke Return Spring

Note: Parts shown with bullet included with kit above.

$

$

Not available

34

Choke Return Spring

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Choke Shaft

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Choke Shaft

Note: Parts shown with bullet included with kit above.

$

$

Not available

36

Lawn-Boy 612784

GAS LINE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.99

$

Usually ships in 3-6 days

0
