C 21 ZMR B - Lawn-Boy Walk-Behind Mower (SN: K00000001 - K99999999) (1991) DRIVE GROUP MODELS: C21ZMRA & B Parts Diagram

Walk-Behind Mower

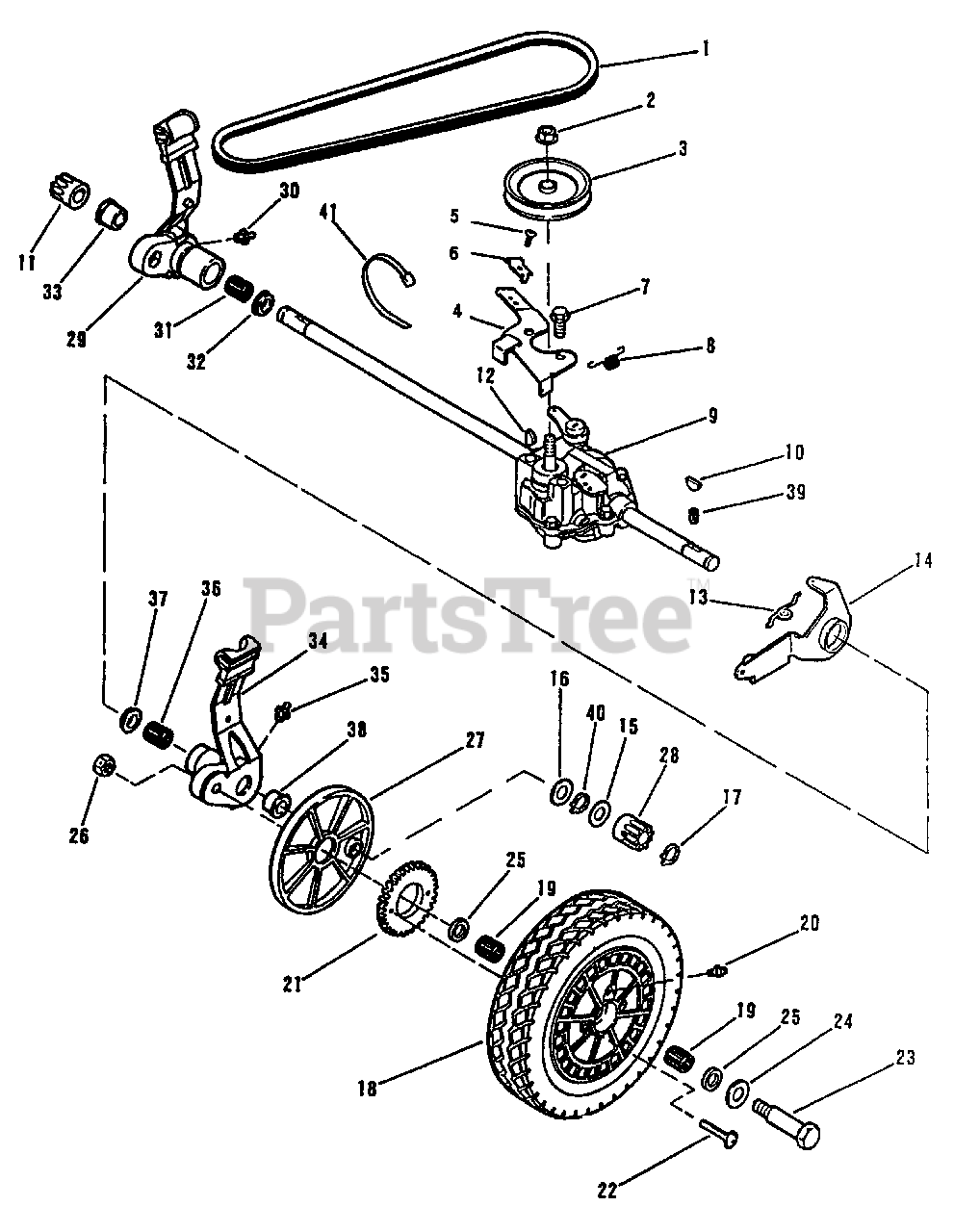

DRIVE GROUP MODELS: C21ZMRA & B Parts Diagram

  • Title

1

Lawn-Boy 613830

V-Belt

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 613770

Locknut
(Superseded to 95-1579)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 613445

Transmission Pulley

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$108.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 684623

Linkage Plate & Screw Kit

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 613387

Screw-Clamp to Linkage Plate

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

6

Lawn-Boy 613385

Clamp

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 146134

Screw-Plate to Transmission

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 613581

Spring

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 684129

Transmission

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 612066

Key-Pinion to Shaft

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 3 left!

0

11

Lawn-Boy 613355

Drive Pinion-R.H.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$20.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 611840

Key-Pulley to Transmission

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 613579

Link

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 684302

Actuator Arm and Bushing
(Superseded to 684707)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 608030

Thrust Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

16

Lawn-Boy 611878

Thurst Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 603147

Retaining Ring

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 684575

Wheel-Tire and Bearing Assy

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 608286

Needle Bearing
(Superseded to 117-3500)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$5.49

$

In Stock, Qty 16

0

20

Lawn-Boy 611831

Grease Fitting

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$8.49

$

Usually ships in 3-6 days

0

21

Lawn-Boy 614266

Gear

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

22

Lawn-Boy 614267

Screw-Gear to Wheel

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$5.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 614139

Shoulder Bolt-Rear Wheel

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 605256

Flat Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 605255

Felt Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 603773

Nut-Wheel to Height Adjust Arm

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 6

0

27

Lawn-Boy 613869

Wheel Cover

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 613356

Drive Pinion-L.H.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 684482

Height Adjust Arm Assembly-R.H.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 603615

Grease Fitting

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

31

Lawn-Boy 608286

Needle Bearing
(Superseded to 117-3500)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$5.49

$

In Stock, Qty 16

0

32

Lawn-Boy 611824

Seal

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$16.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 614029

Flange Bearing
(Superseded to 684525)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

Lawn-Boy 684523

Spring Arm and Knob w/Flange Bearing Kit-R.H.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

34

Lawn-Boy 684483

Height Adjust Arm Assembly-L.H.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 603615

Grease Fitting

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

36

Lawn-Boy 608286

Needle Bearing
(Superseded to 117-3500)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$5.49

$

In Stock, Qty 16

0

37

Lawn-Boy 611824

Seal

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$16.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 614029

Flange Bearing
(Superseded to 684525)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

Lawn-Boy 684524

Spring Arm and Knob w/Flange Bearing Kit-L.H.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

39

Lawn-Boy 612067

Spring-Pinion Key

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

0

40

Lawn-Boy 607676

Retaining Ring

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

41

Lawn-Boy 613911

Tie Strap

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
