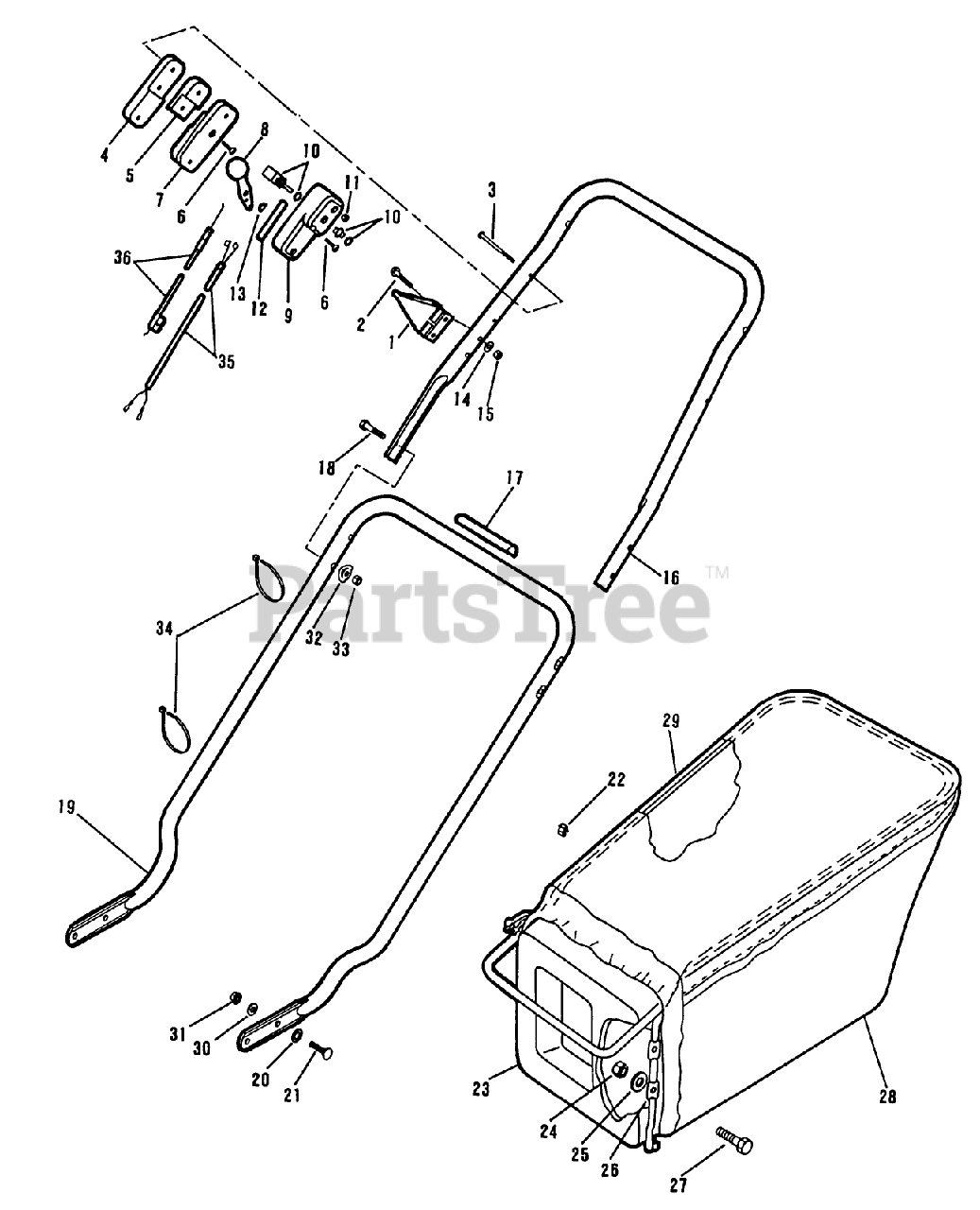

C 21 CSN - Lawn-Boy Walk-Behind Mower (SN: H00000001 - H99999999) (1989) Handle Group Model: C20cpr Parts Diagram

Walk-Behind Mower

Handle Group Model: C20cpr Parts Diagram

  • Title

1

Lawn-Boy 153254

DISCONTINUED
(Superseded to 682684)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 611233

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 611799

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 611777

OUTER CONTROL CASE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$33.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 612703

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 611543

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 3 left!

0

7

Lawn-Boy 612633

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 683663

LEVER&KNOB AY WES

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 612863

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 683847

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 611258

NUT C/LOCK E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 612643

DISCONTINUED
(Superseded to 612698)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 612586

WASHER-SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 4 left!

0

14

Lawn-Boy 602945

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 2 left!

0

16

Lawn-Boy 613160

UPPER HANDLE *

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$297.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 612878

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 611205

See Supercession: 322-7
(Superseded to 322-7)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 613159

LOWER HANDLE *G

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$430.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 145509

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 146012

See Supercession: 3230-3
(Superseded to 3230-3)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

Lawn-Boy 684007

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 613155

S CLIP ARDEN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 611500

BAG ADAPTOR PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 2 left!

0

25

Lawn-Boy 602945

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 684008

LATCH BAR AY ARGO

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$186.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 684020

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 611530

HANGER BAG TROX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$138.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 145875

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 146139

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 609739

WASHER-CURVED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 8

0

33

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

34

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 2 left!

0

35

Lawn-Boy 684012

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 684015

THROTTLE CABLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$195.99

$

Usually ships in 3-6 days

0
