C 21 CPN - Lawn-Boy Walk-Behind Mower (SN: H00000001 - H99999999) (1989) Drive Group Model: C20csr Parts Diagram

Walk-Behind Mower

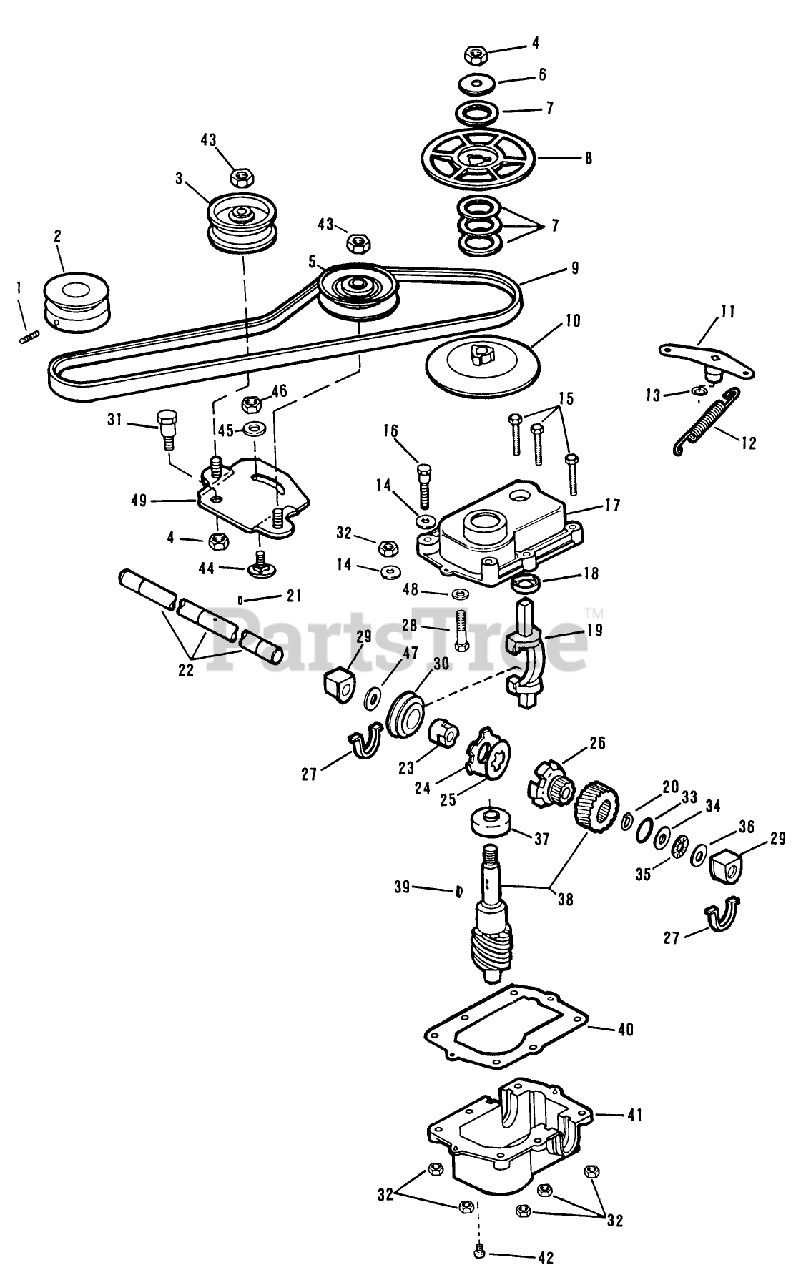

Drive Group Model: C20csr Parts Diagram

  • Title

1

Lawn-Boy 610345

SET SCREW F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$9.49

$

In Stock, Qty 6

0

2

Lawn-Boy 613154

PULLEY ENG F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 611845

PULLEY NEWHAM IND *B

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 603773

LOCKNUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 611846

IDLER NEW HAM IND

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 611839

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 611838

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 611836

PULLEY UPPER PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 611803

V-BELT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$24.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 611837

PULLEY LOWER PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 683999

See Supercession: 684497
(Superseded to 684497)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$47.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 145935

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 611835

O-RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, only 1 left!

0

14

Lawn-Boy 316676

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 609892

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 611833

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 611828

See Supercession: 683624
(Superseded to 683624)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 611834

GUIDE ELCO

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 613245

FORK SHIFT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 607676

RET RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

21

Lawn-Boy 611814

PIN DRIVE LOCK

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 612063

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 611815

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 613247

ORD 684683,

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 613246

ORD KIT 684683

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 611821

DRIVER BROCKWAY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 611830

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 612065

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 683186

BEARING & SEAL AY (12)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 613248

DISCONTINUED
(Superseded to 684684)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 611847

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 611822

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 611878

WASHER-THRUST

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 381791

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 608030

THRUST WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

37

Lawn-Boy 683187

BEARING-BALL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 683343

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 613454

WORM WHEEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$188.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 611840

KEY GALGER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 611827

GASKET HOOSIER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 612406

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 146093

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 610358

NUT-JAM, LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

44

Lawn-Boy 800358

See Supercession: 3230-22
(Superseded to 3230-22)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

45

Lawn-Boy 306359

WASHER M

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

47

Lawn-Boy 612534

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 306488

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 683189

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
