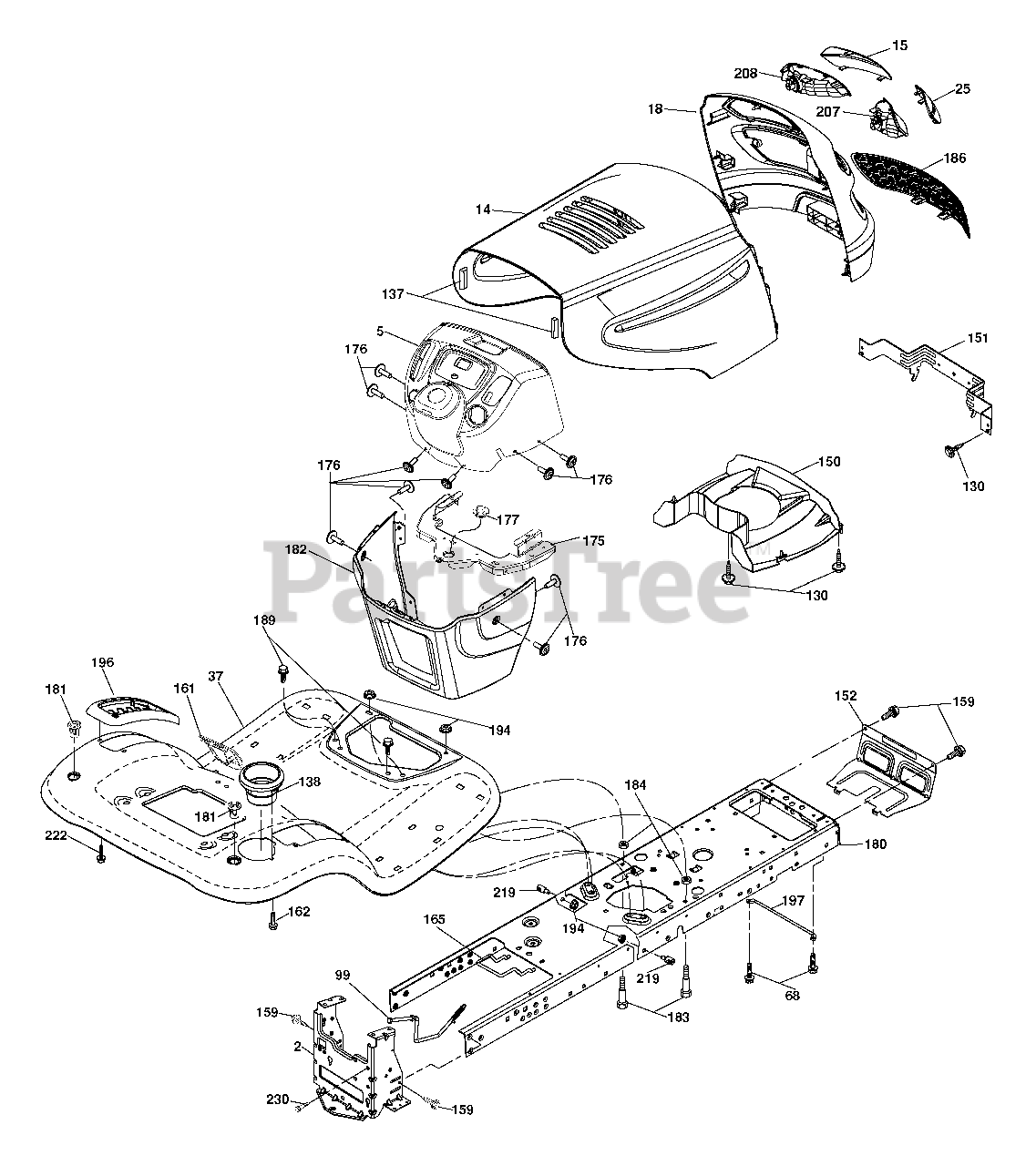

C 20H42 YT (960420026-01) - Poulan Lawn Tractor (2006) Chassis Parts Diagram

Lawn Tractor

Chassis Parts Diagram

  • Title

2

Electrolux/AYP 194263

Drawbar
(Superseded to 532194263)

$74.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 199646X428

Dash
(Superseded to 583727901)

$47.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 183393X505

Hood
(Superseded to 532194690)

$80.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 183834X599

Lens Grille LH
(Superseded to 183834599)

$

$

Not available

18

Electrolux/AYP 401605

Grille
(Superseded to 583271501)

Note: (Included Key #'s 15,25, 186, 207, 208)

$151.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 183835X599

Lens Grille RH
(Superseded to 183835599)

$

$

Not available

37

Electrolux/AYP 402969X505

Fender
(Superseded to 532420797)

$319.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 17490508

Screw THDROL 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 401530

Rod Bypass Asm
(Superseded to 583299801)

$42.99

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 596321701)

$3.99

$

Usually ships in 3-10 days

0

137

Electrolux/AYP 184921

Bumper Hood
(Superseded to 532184921)

$7.49

$

In Stock, Qty 9

0

138

Electrolux/AYP 193224X428

Cupholder
(Superseded to 532409730)

$7.99

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 189350

Duct Heat Hood

$

$

Not available

151

Electrolux/AYP 174714

Bracket Pivot
(Superseded to 532407807)

$34.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 194329

Shield Browning/Debris
(Superseded to 532194329)

$22.99

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 17000612

Screw Hexwsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

162

Electrolux/AYP 142432

Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

175

Electrolux/AYP 193243

Crossmember
(Superseded to 532193243)

$27.99

$

Usually ships in 3-10 days

0

176

Electrolux/AYP 400776

Screw 10-24 x 5/8 Wshd Qdrx
(Superseded to 532400776)

$10.99

$

Usually ships in 3-10 days

0

177

Electrolux/AYP 195227

Bushing Steering
(Superseded to 532195227)

$6.99

$

In Stock, Qty 20+

0

180

Electrolux/AYP 194260

Chassis

$94.99

$

Usually ships in 3-10 days

0

181

Electrolux/AYP 193102X428

Bushing Mtg. Fender Crgo.
(Superseded to 532404796)

$

$

Not available

182

Electrolux/AYP 193057

Dash Lower
(Superseded to 532193057)

$113.99

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 74780520

Bolt Fin Hex 5/16-18 x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

184

Electrolux/AYP 195780

Spacer Fender
(Superseded to 532195780)

$7.49

$

Usually ships in 3-10 days

0

186

Electrolux/AYP 183829X428

Insert Grille

$

$

Not available

189

Electrolux/AYP 17000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

194

Electrolux/AYP 73900500

Nut Lock Hex Flange 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

196

Electrolux/AYP 196378X428

Console Asm. Deck Lift
(Superseded to 532414579)

$37.99

$

In Stock, only 2 left!

0

197

Electrolux/AYP 156524

Rod Pivot Chassis
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

207

Electrolux/AYP 183833

Bezel RH
(Superseded to 532183833)

$

$

Not available

208

Electrolux/AYP 183832

Bezel LH
(Superseded to 532183832)

$

$

Not available

219

Electrolux/AYP 195161

Stud Fastener
(Superseded to 532195161)

$

$

Not available

222

Electrolux/AYP 137729

Screw thd Roll 1/4-20 x 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

230

Electrolux/AYP 170165

Bolt Shoulder 5/16-18
(Superseded to 532170165)

$4.99

$

In Stock, Qty 7
