C 20H42 YT (960420026-00) - Poulan Lawn Tractor (2006-01) Seat Assembly Parts Diagram

Lawn Tractor

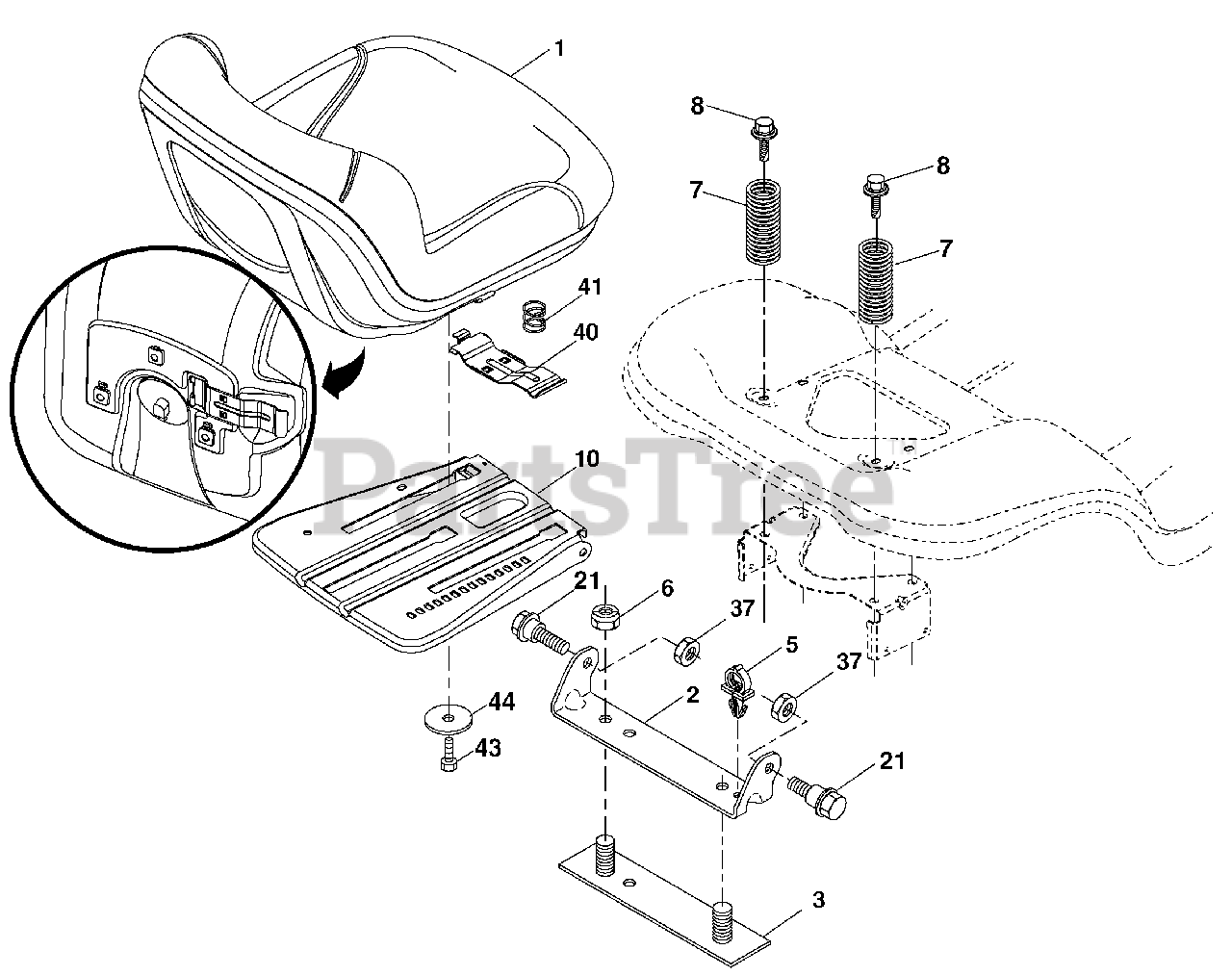

Seat Assembly Parts Diagram

  • Title

1

Electrolux/AYP 401545

Seat
(Superseded to 532401545)

$39.99

$

In Stock, Qty 6

0

2

Electrolux/AYP 180166

Bracket Pivot Fender
(Superseded to 532180166)

$13.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 140675

Strap, Asm Fender
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 145006

Clip, Push In, Hinged
(Superseded to 532145006)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 73800600

Nut, Lock W/Ins. 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 124181X

Spring, Seat Cprsn
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 171877

Bolt 5/16-18 uncx 3/4 w/Sems
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

10

Electrolux/AYP 196977

Pan, Seat
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 171852

Bolt, Shoulder 5/16-18
(Superseded to 532171852)

$4.99

$

In Stock, Qty 8

0

37

Electrolux/AYP 73800500

Nut, Lock 5/16-18 unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 197661

Handle Slide Seat
(Superseded to 595088102)

$5.99

$

In Stock, Qty 7

0

41

Electrolux/AYP 198200

Spring Latch Seat
(Superseded to 532198200)

$6.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 74760612

Bolt Fin Hex 3/8-16 UNC x 3/4
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

44

Electrolux/AYP 19133812

Washer 13/32 x 2-3/8 x 12Ga.
(Superseded to 583789501)

$

$

Not available
