C 20H42 YT (960420026-00) - Poulan Lawn Tractor (2006-01) Engine Parts Diagram

Lawn Tractor

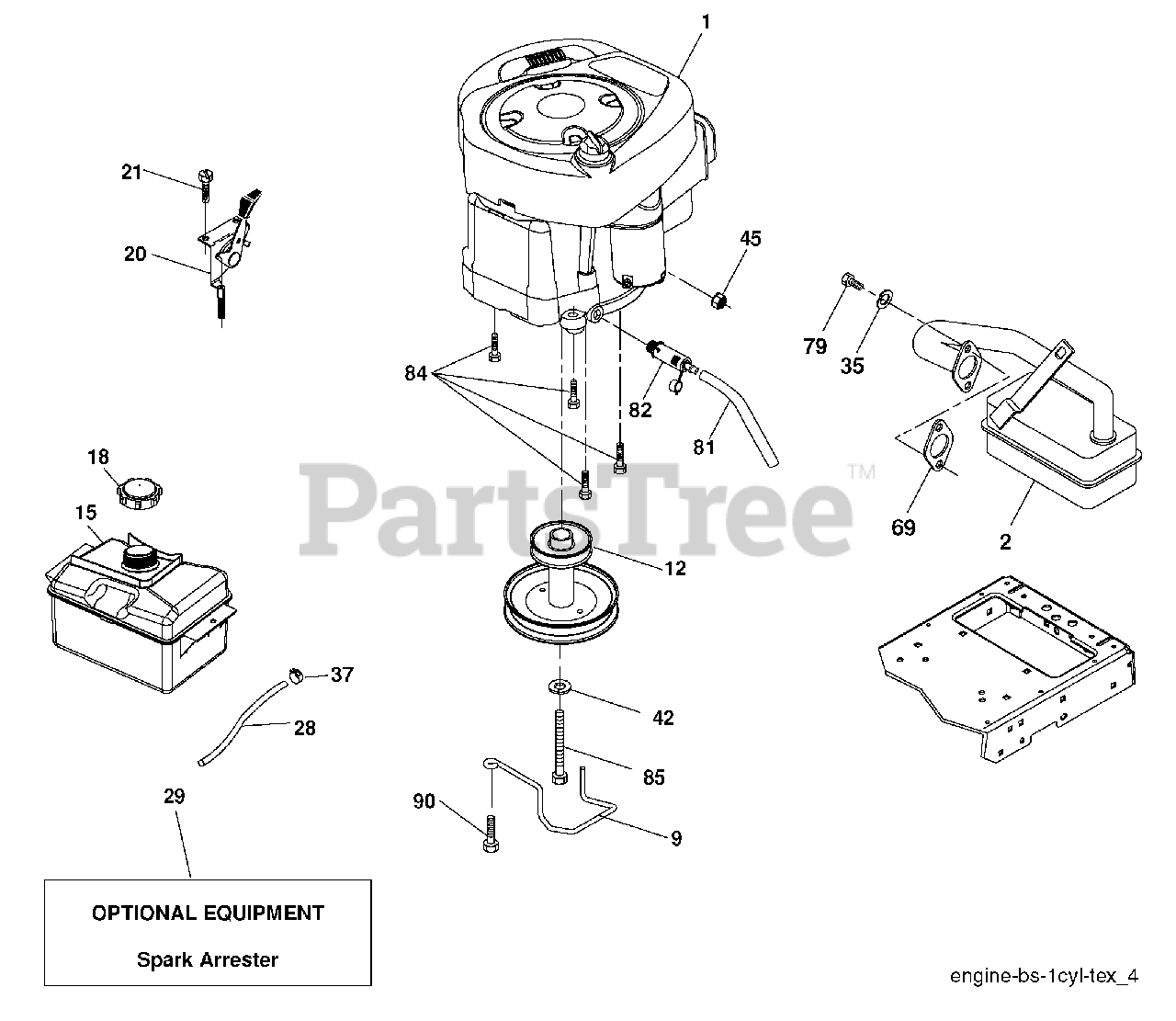

Engine Parts Diagram

  • Title
1

Engine B&S Model No. 31P977

$

$

Not available

2

Electrolux/AYP 137352

Muffl er
(Superseded to 532137352)

$45.99

$

In Stock, only 3 left!

0

9

Electrolux/AYP 194319

Keeper Belt Engine
(Superseded to 532194319)

$13.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 194332

Pulley Engine
(Superseded to 586729001)

$40.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 194266

Tank Fuel
(Superseded to 532404470)

$

$

Not available

18

Electrolux/AYP 197725

Cap Asm
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 176636X428

Control Throttle
(Superseded to 532176636)

$37.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

28

Electrolux/AYP 401137

Fuel Line
(Superseded to 532401137)

$14.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

Spark Arrester Kit
(Superseded to 532137180)

$

$

Not available

35

Electrolux/AYP 10010500

Washer, Split
(Superseded to 810010500)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 123487X

Clamp Hose
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

42

Electrolux/AYP 10040700

Washer Lock 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

45

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

69

Electrolux/AYP 165391

Gasket
(Superseded to 532165391)

$4.99

$

In Stock, Qty 20+

0

79

Electrolux/AYP 192334

Screw Socket Head 5/16-18 x .75
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

81

Electrolux/AYP 148456

Tube Drain Oil Easy
(Superseded to 532148456)

$6.99

$

In Stock, only 4 left!

0

82

Electrolux/AYP 181654

Plug Drain Oil
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

84

Electrolux/AYP 17060620

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

85

Electrolux/AYP 173937

Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr.
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

90

Electrolux/AYP 17060616

Screw 3/8-16 x 1
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0
