C 200 (UT-01566) - Homelite Centrifugal Pump Pump Parts Diagram

Centrifugal Pump

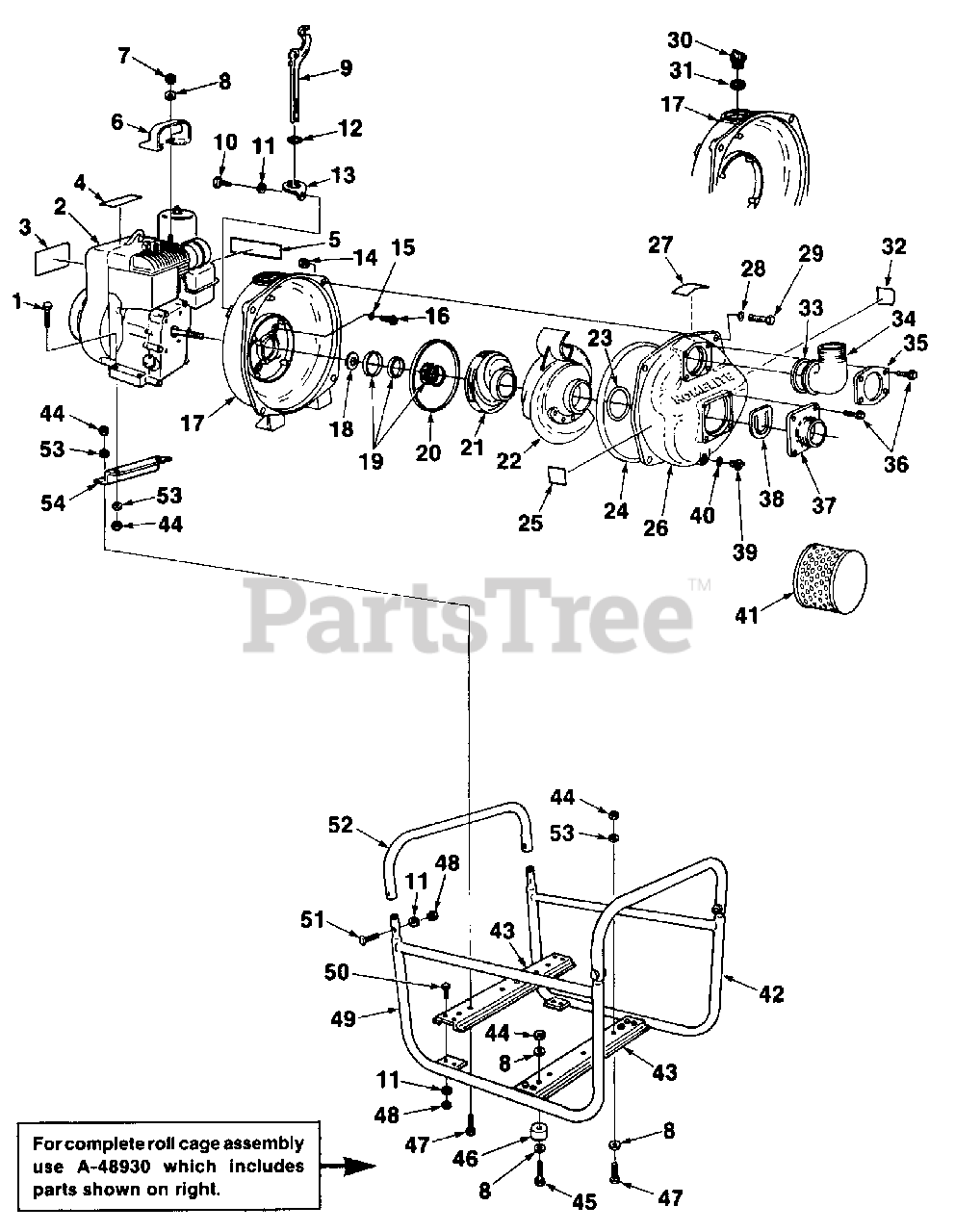

Pump Parts Diagram

  • Title

1

Homelite 80087

SCREW- Hex cap (5/16-18 x 1 1/2)

$

$

Not available

4

Homelite A46458S

ENGINE & LABEL (see index #2)

$

$

Currently unavailable

Homelite 53876A

LABEL- Instruction (see index #4)

$

$

Currently unavailable

5

Homelite 23742A

DECAL- Homelite

$

$

Currently unavailable

6

Homelite 48858

HANDLE- Carrying

$

$

Not available

7

Homelite 81235

NUT- 5/16-1B

$

$

Not available

8

Homelite 84046

WASHER- Flat (5/16)

$

$

Not available

9

Homelite 48825

WRENCH
(Superseded to UP03586)

$

$

Not available

10

Homelite 82485

SCREW- Tap hex hd (1/4-20 x 3/4)

$7.49

$

Usually ships in 3-7 days

0

11

Homelite 83009

WASHER- Lock 1/4

$8.49

$

Usually ships in 3-7 days

0

12

Homelite 49133

GROMMET

$

$

Not available

13

Homelite 624501

BRACKET- Spanner wrench

$

$

Not available

14

Homelite 81263

NUT- Hex

$

$

Not available

15

Homelite 67900

"O" RING

$

$

Not available

16

Homelite 49111

SCREW

$

$

Not available

17

Homelite 485651

BODY- Pump

$

$

Currently unavailable

18

Homelite 48555

SLINGER
(Superseded to UP03801)

$19.99

$

Usually ships in 3-7 days

0

19

Homelite 48554

SEAL- Shaft

Note: For complete Gasket overhaul kit, order A-17821

$

$

Not available

20

Homelite 48550

RING- Square

Note: For complete Gasket overhaul kit, order A-17821

$

$

Not available

21

Homelite 485621

IMPELLER

$

$

Currently unavailable

22

Homelite 485631

DIFFUSER

$

$

Currently unavailable

23

Homelite 48551

RING- Square

Note: For complete Gasket overhaul kit, order A-17821

$40.99

$

Usually ships in 3-7 days

0

24

Homelite 48552

"O" RING

Note: For complete Gasket overhaul kit, order A-17821

$

$

Not available

26

Homelite 485601

HOUSING- End

$

$

Currently unavailable

27

Homelite 43265

LABEL- Warning

$6.49

$

Usually ships in 3-7 days

0

28

Homelite 83020

WASHER- Lock

$

$

Not available

29

Homelite 82484

SCREW- Mach hex hd (1/2-13 x 1 1/2)

$

$

Not available

30

Homelite A43971

PLUG- Filler assembly

$

$

Not available

31

Homelite 18108

GASKET- Wing nut

$

$

Not available

32

Homelite 48861

DECAL- Homelite (C-200)

$

$

Currently unavailable

Homelite 48868

DECAL- Homelite 51 MM

$

$

Currently unavailable

33

Homelite 48795

"O" RING

Note: For complete Gasket overhaul kit, order A-17821

$

$

Not available

34

Homelite 48558

ELBOW- Discharge 2"

$

$

Not available

35

Homelite 48577

CLAMP- Discharge

$

$

Not available

36

Homelite 82206

SCREW- Hex hd (5/16-18 x 1)

$4.49

$

Usually ships in 3-7 days

0

37

Homelite 48556

FITTING- Suction 2"

$

$

Not available

38

Homelite 48553

VALVE- Check

$

$

Not available

39

Homelite A43896

CAP & GASKET
(Superseded to UP07092)

$

$

Currently unavailable

40

Homelite 59910

GASKET

$

$

Not available

44

Homelite 81018

NUT- (5/16-18)

$

$

Not available

53

Homelite 83002

WASHER- Lock 5/16"
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

54

Homelite 48548

SUPPORT- Engine

$

$

Not available

Homelite A17821

Gasket overhaul kit

$

$

Currently unavailable
