C 1200 (UT-20809) - Homelite Trimmer/Brush Cutter Engine Internal Parts Diagram

Trimmer/Brush Cutter

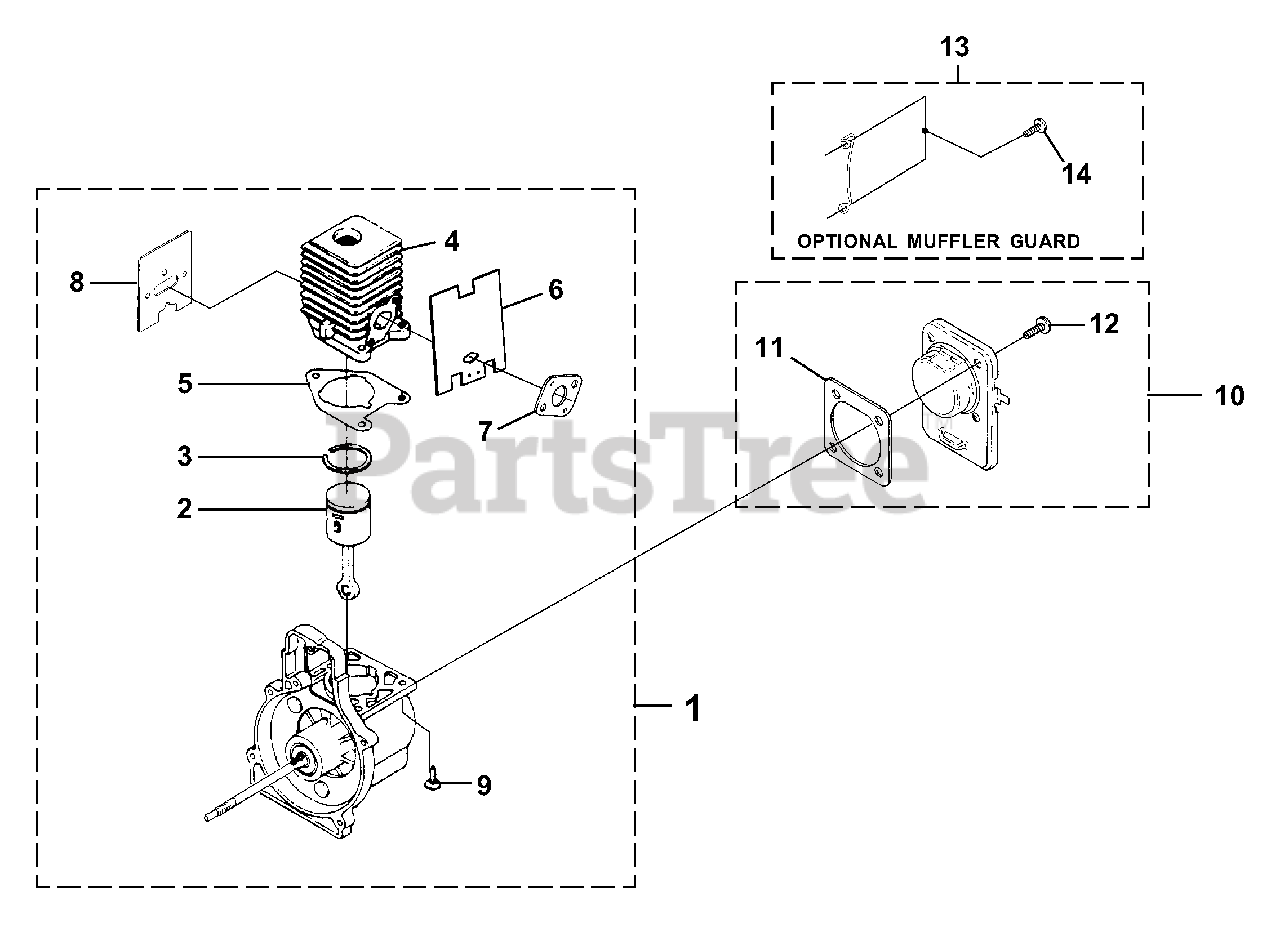

Engine Internal Parts Diagram

  • Title

1

Homelite 984546001

SHORT BLOCK

Note: Includes Items 1-9

$

$

Not available

2

Homelite UP06937A

PISTON & ROD ASSY.
(Superseded to 984868001)

Note: Includes Items 2

$26.99

$

Usually ships in 3-7 days

0

3

Homelite PS03498

RING-Piston
(Superseded to 985607001)

$8.49

$

In Stock, only 3 left!

0

4

Homelite UP06940

CYLINDER ASSY.

Note: Includes Items 4-8

$109.99

$

Usually ships in 3-7 days

0

5

Homelite 04388B

GASKET-Cylinder
(Superseded to 985259001)

$

$

Not available

6

Homelite 06900A

GASKET-Heat Dam

$

$

Not available

7

Homelite 98766A

GASKET-Carburetor
(Superseded to 900994004)

$

$

Not available

8

Homelite PS04000

GASKET-Muffler

$

$

Not available

9

Homelite PS02807

SCREW-Sems (12-24 X 3/4")

$2.49

$

Usually ships in 3-7 days

0

10

Homelite UP00019A

CRANKCASE COVER ASSEMBLY

Note: Includes Items 10-12

$

$

Not available

11

Homelite 06443A

GASKET-Crankcase Cover
(Superseded to 900954001)

Note: (Also included w/short block)

$

$

Not available

12

Homelite PS01565

SCREW-Sems (10-24 X 1/2")

$2.49

$

Usually ships in 3-7 days

0

13

Homelite UP04099

MUFFLER GUARD

Note: Includes Items 13-14

$

$

Not available

14

Homelite 82541

SCREW-Plastite (10-14 X 1/2")

$1.99

$

In Stock, only 3 left!

0
