BZE 7234 D - Husqvarna 72" Zero-Turn Mower (SN: 033600000 & Above) (2005-02) MOWER LIFT / DECK LIFT 2 Parts Diagram

72" Zero-Turn Mower

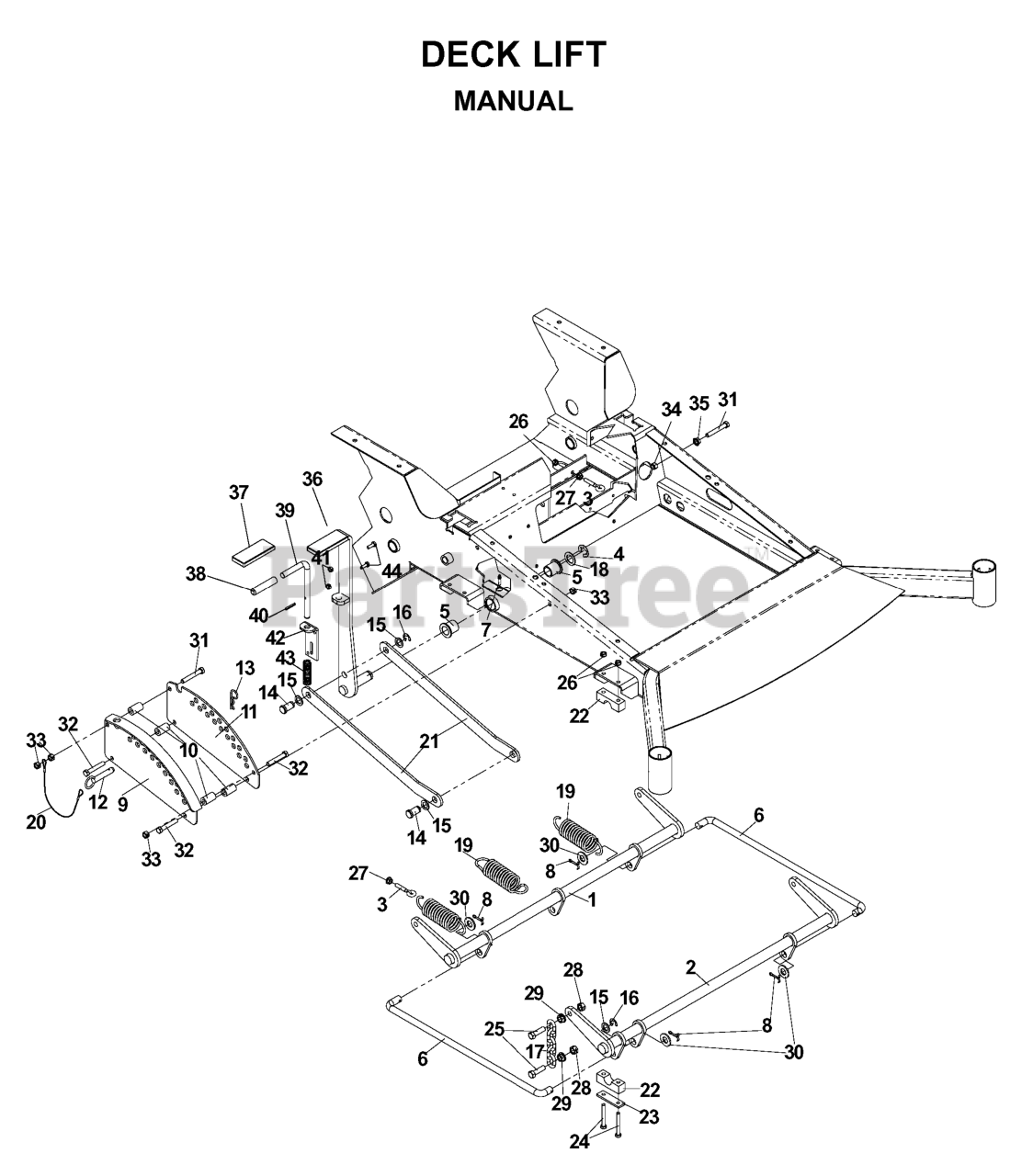

MOWER LIFT / DECK LIFT 2 Parts Diagram

  • Title
36

Husqvarna 539108322

LIFT LEVER WELDMENT

$103.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

27

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

12

$21.99

$

Usually ships in 3-10 days

0

$

$

Not available

539 10 63-45

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539104760

DECK LIFT SPRING

$

$

Not available

2

Husqvarna 539108355

LIFT SHAFT

$

$

Not available

7

Husqvarna 539104761

GREASE ZERK LONG

$3.99

$

Usually ships in 3-10 days

0

15

$3.99

$

Usually ships in 3-10 days

0

20

$10.99

$

In Stock, only 1 left!

0

28

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

$3.99

$

In Stock, only 4 left!

0

1

Husqvarna 539108354

SHAFT LIFT REAR

$103.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990654

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539991046

BOLT 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

30

Husqvarna 539976982

WASHER 5/8 FLAT

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539104530

DECK LIFT SPACER

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539105069

E-RING 5/8

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

41

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

26

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539923787

BSHG .875 X 1.375 X .074 ZD

$3.99

$

In Stock, only 1 left!

0

$

$

Not available

42

Husqvarna 539103534

PIN MT, UPPER

$27.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539105060

CLEVIS PIN

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539101232

BUSHING, FLANGED

$13.99

$

In Stock, Qty 7

0

33

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

4

Husqvarna 539101802

E-RING 7/8

$3.99

$

Usually ships in 3-10 days

0

40

$3.99

$

In Stock, Qty 5

0

3

Husqvarna 539101982

EYEBOLT, RH

$43.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539105050

LIFT LINKAGE,PAINTED

$23.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539104323

ADJ. PLATE PAINTED

$23.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 539104310

CONNECTING LINK

$21.99

$

In Stock, only 1 left!

0

9

Husqvarna 539104321

ADJ. PLATE WLDMNT

$61.99

$

Usually ships in 3-10 days

0
