BZE 7234 D - Husqvarna 72" Zero-Turn Mower (SN: 033600000 & Above) (2005-02) CHASSIS / FRAME Parts Diagram

72" Zero-Turn Mower

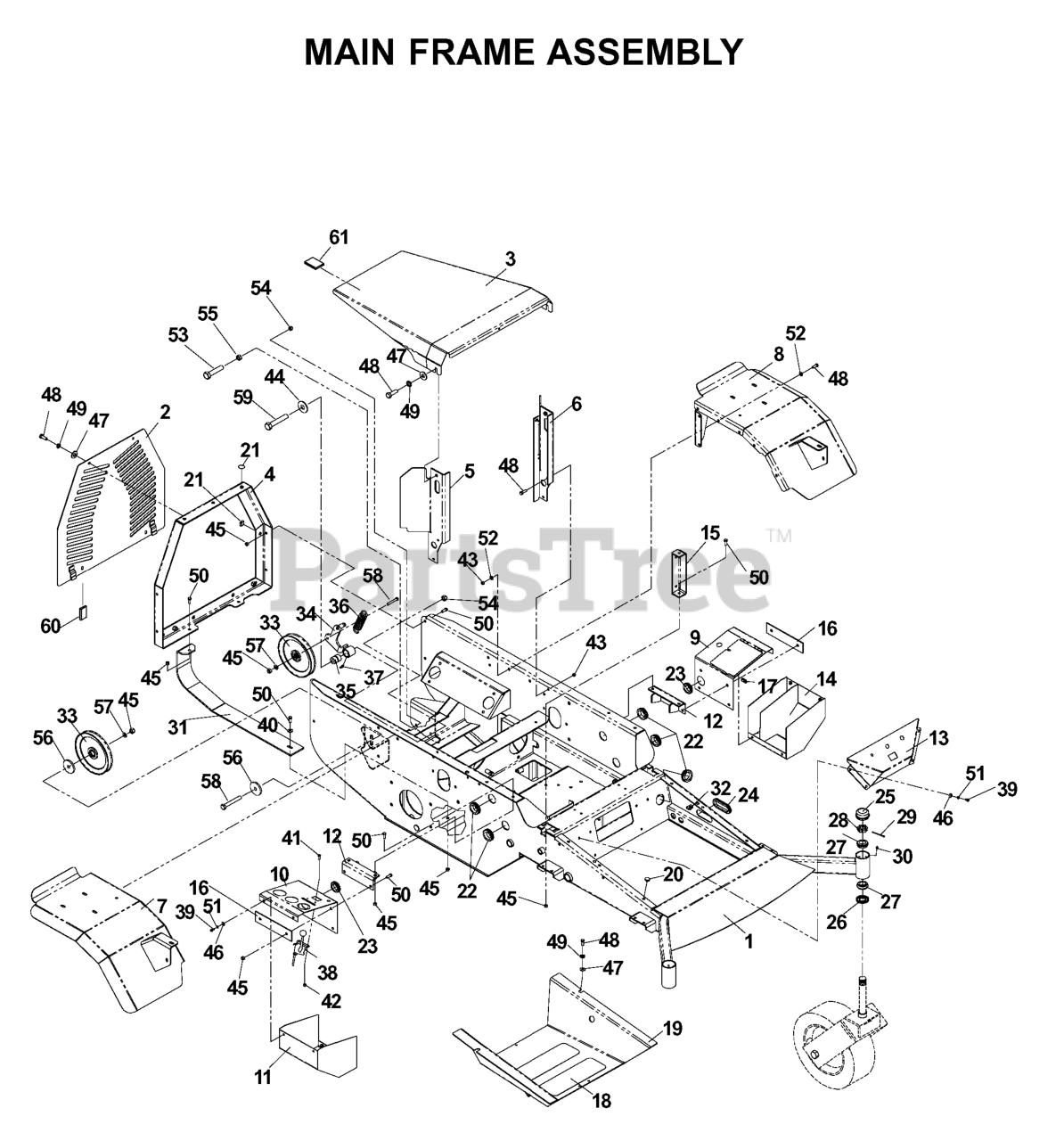

CHASSIS / FRAME Parts Diagram

  • Title

49

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

36

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

8

Husqvarna 539107206

FENDER WELDMT, LH

$311.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539106205

FRAME W/DECALS

$

$

Not available

28

Husqvarna 539102852

NUT 1"C HEX SLOTTED

$

$

Not available

55

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 14

0

57

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

60

Husqvarna 539110850

SLEEVE

$1.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539106417

BUSHING

$

$

Not available

32

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

15

Husqvarna 539108055

SUPPORT WELDMENT

$17.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539106418

ARM WELDMENT

$33.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539107232

MAGNETIC LATCH

$

$

Not available

21

Husqvarna 539107858

GROMMET BUMPER

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539107778

CONSOLE TOP-PAINTED

$31.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539110851

SLEEVE

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539104721

FOOT PLATE WIDMT

$218.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

18

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539107853

HOOD ORANGE

$218.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

50

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 539102851

SEAL

$7.99

$

In Stock, only 2 left!

0

7

Husqvarna 539107205

FENDER WELDMT, RH

$141.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

9

Husqvarna 539107781

TOP PANEL

$94.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539107776

CONSOLE BOTTOM

$80.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106405

SUPPORT WLDMT, RT

$61.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539107788

MTG ANGLE WELDMT

$18.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

29

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

53

Husqvarna 539107026

HCS 1/2-13X2 GR 8

$1.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539107656

GROMMET

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539107669

CENTER CONSOLE WELDMENT

$

$

Not available

54

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 539111568

IDLER

$

$

Not available

42

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

6

Husqvarna 539106406

SUPPORT WLDMT, LT

$61.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539107791

BOTTOM CONSOLE

$133.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539107847

REAR FRAME

$188.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539103684

GROMMET

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539106300

SKID PLATE

$47.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 18

0

24

Husqvarna 539107210

GROMMET

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

27

Husqvarna 539102543

TAPERED ROLLER BRG

$40.99

$

In Stock, only 1 left!

0

16

Husqvarna 539107867

BLACK-STIFFNER-PAINTED

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539108362

PANEL W/ DECALS

$113.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539102732

THROTTLE CONTROL W/BALL KNOB

$

$

Not available

58

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0
