BZE 6134 D - Husqvarna 61" Zero-Turn Mower (SN: 033600000 & Above) (2004-01) ENGINE 2 Parts Diagram

61" Zero-Turn Mower

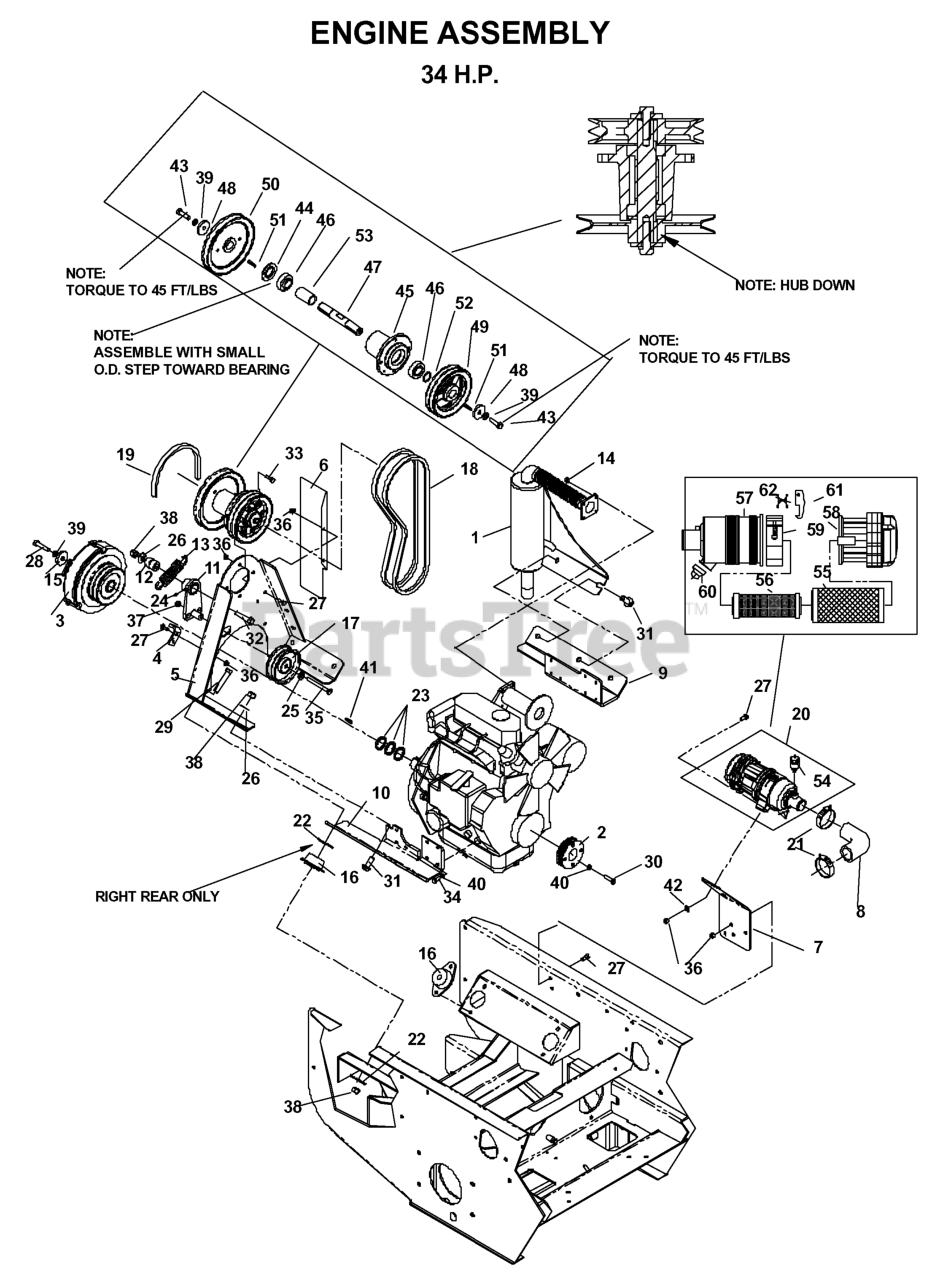

ENGINE 2 Parts Diagram

  • Title

1

Husqvarna 539109568

MUFFLER
(Superseded to 539111901)

$485.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

6

Husqvarna 539107864

HEAT SHIELD

$24.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539300600

BOLT

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539977692

HTB M8-1.125 X 25MM

$0.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539109801

NUT M8-1.25 STOVER

$

$

Not available

19

Husqvarna 539106339

ENGINE, BELT MULE

$

$

Not available

41

Husqvarna 539100152

KEY 1/4" SQ X 1 7/8"

$3.99

$

In Stock, Qty 5

0

4

Husqvarna 539108054

RESTRAINT
(Superseded to 539111433)

$27.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539102676

SPACER

$13.99

$

In Stock, only 4 left!

0

56

Husqvarna 539106377

SAFETY ELEMENT

$60.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539106347

SHEAVE

$61.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

20

Husqvarna 539106315

AIR FILTER ASSY

$311.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539106335

ENGINE SHEAVE

$

$

Not available

57

Husqvarna 539108471

BODY, STRAIGHT

$109.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539104959

ISOLATOR WASHER

$15.99

$

In Stock, only 1 left!

0

36

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

55

Husqvarna 539106313

AIR FILTER

$66.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106306

JACKSHAFT MOUNT WELDMENT

$236.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539102244

BUSHING.MACHINE.18.GAUGE

$5.99

$

In Stock, only 3 left!

0

539106327

Husqvarna 539106327

STUB SHAFT

$

$

Not available

60

Husqvarna 539108472

NLA S-DRAIN

$30.99

$

Usually ships in 3-10 days

0

539109177

Husqvarna 539109177

MANIFOLD GASKET

$51.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

59

Husqvarna 539108474

MOUNTING BRACKET

$28.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539108475

CLAMP

$15.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539105485

PULLEY

$54.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

24

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 539106291

ISO MOUNT

$46.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539107841

MOUNTING BRACKET

$48.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539108476

HINGE

$15.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539107272

COMBO SPACER

$3.99

$

In Stock, only 3 left!

0

11

Husqvarna 539106422

ARM WELDMENT

$

$

Not available

12

Husqvarna 539106417

BUSHING

$

$

Not available

58

Husqvarna 539108473

PRECLEANER ASM

$

$

Not available

54

Husqvarna 539106375

INDICATOR

$23.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 8

0

27

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539107861

ENGINE MOUNT-LT

$47.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539106383

CLAMP, AIR HOSE

$

$

Not available

3

Husqvarna 539106329

CLUTCH
(Superseded to 539110668)

$2185.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539108052

BUSH 1-1/8 X 10 GA ZD

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539107994

IDLER, PRIMARY
(Superseded to 539111567)

$

$

Not available

45

Husqvarna 539104852

HOUSING, DIE CAST

$

$

Not available

38

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

10

Husqvarna 539107862

ENGINE MOUNT-RT

$51.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539106381

AIR FILTER HOSE

$35.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539106338

ENGINE BELT, PRIMARY
(Superseded to 539111569)

$

$

Not available

13

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 5

0

47

Husqvarna 539106344

SPINDLE

$68.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539102677

BEARING
(Superseded to 539115279)

$37.99

$

In Stock, Qty 20+

0

40

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

51

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$

$

Not available

35

Husqvarna 539108271

HCS 3/8-16 X 3-1/2 GR5 ZD

$5.99

$

In Stock, Qty 8

0

37

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0
