BZ 7234 D BF (968999370) - Husqvarna 72" Zero-Turn Mower (2005-08) Mower Lift / Deck Lift Parts Diagram

72" Zero-Turn Mower

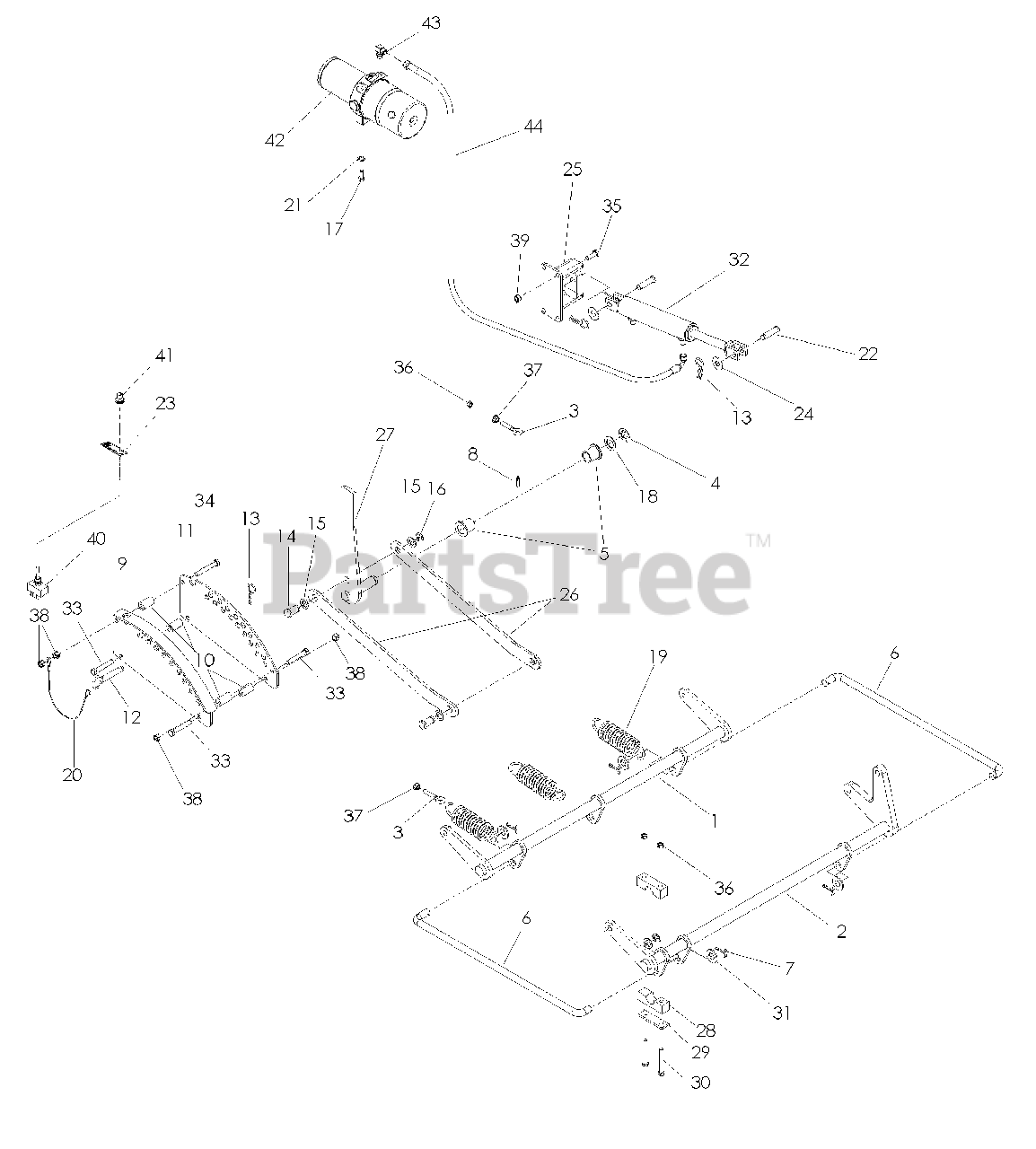

Mower Lift / Deck Lift Parts Diagram

  • Title

1

Husqvarna 539108354

LIFT SHAFT ASSEM, REAR

$103.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539107134

LIFT SHAFT, FRONT

$169.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539101982

EYEBOLT

$43.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539101802

E-RING .875

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539101232

BUSHING, FLANGED

$13.99

$

In Stock, Qty 7

0

6

Husqvarna 539104310

CONNECTING LINK

$21.99

$

In Stock, only 1 left!

0

7

Husqvarna 539104761

ZERK, LONG

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990654

COTTER PIN 5/32 x 1 1/4

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539104321

ADJUSTMENT PLATE

$61.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539104530

SPACER

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539104323

ADJUSTMENT PLATE

$23.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102526

LIFT PIN

$21.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539976989

HAIRPIN

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539105060

CLEVIS PIN

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539991043

BUSHING .625 MACHINE

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105069

E-RING .625

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990134

HCS 3/8-18 x 3/4

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539923787

BUSHING .875 MACHINE

$3.99

$

In Stock, only 1 left!

0

19

Husqvarna 539104760

SPRING, EXTENSION

$

$

Not available

20

Husqvarna 539105059

LANYARD

$10.99

$

In Stock, only 1 left!

0

21

Husqvarna 539990118

WASHER 3/8 SPLIT LOCK
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 539107227

CLEVIS PIN, 1/2x 1 3/4

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539108232

DECAL, LIFT SWITCH

$

$

Not available

24

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539107130

CYLINDER MOUNT

$42.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539105050

LIFT LINKAGE

$23.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539107137

LIFT LEVER

$51.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

29

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

30

Husqvarna 539991046

HCS 5/16-18 x2 1/2

$4.99

$

In Stock, Qty 8

0

31

Husqvarna 539976982

WASHER 5/8 SAE FLAT

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539107769

CYLINDER

$461.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990629

HCS 3/8-16 x2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990637

HCS 3/8-18 x2 1/2

$1.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990563

HCS 3/8-16 x 1

$1.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990184

NUT 5/16-18 HEX CTRLK

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990585

NUT 5/16-18 WHIZ

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990546

NUT 3/8-16 HEX CTRLK

$

$

Not available

39

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 539110916

SWITCH

$78.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539111431

BOOT, SWITCH

$36.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539107226

POWER UNIT

$1335.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539107870

FITTING

$8.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539111843

HOSE

$46.99

$

Usually ships in 3-10 days

0
