BZ 7234 D BF (968999370) - Husqvarna 72" Zero-Turn Mower (2005-08) Chassis / Frame Parts Diagram

72" Zero-Turn Mower

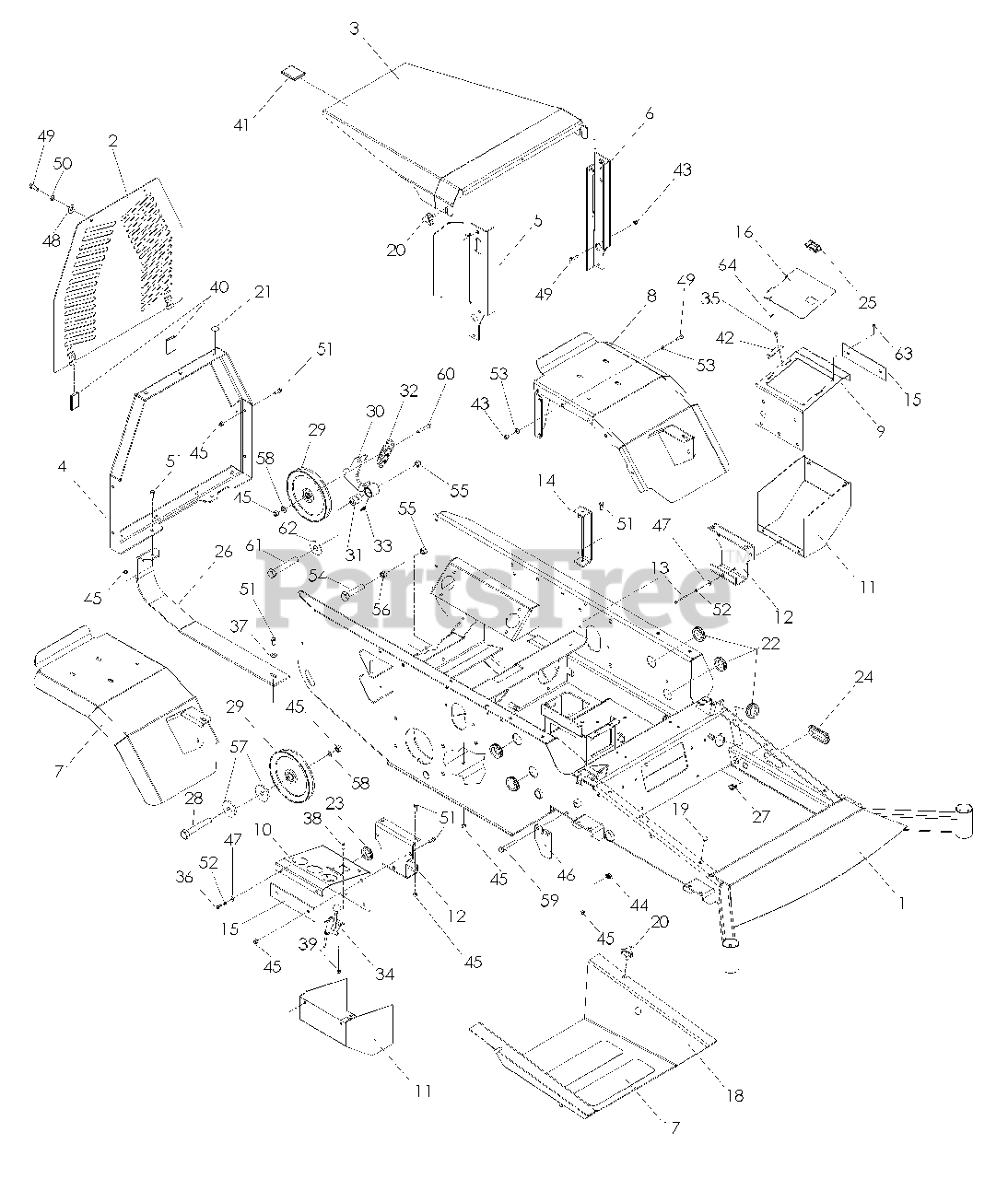

Chassis / Frame Parts Diagram

  • Title
1

Husqvarna 539110941

FRAME w/DECALS

$1510.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539107850

BACK PANEL
(Superseded to 539108362)

$113.99

$

Usually ships in 3-10 days

0

$218.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539107847

REAR FRAME

$188.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106405

SUPPORT, RT

$61.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539106406

SUPPORT, LT

$61.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539107205

FENDER WELDMENT, RT

$141.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539107206

FENDER WELDMENT, LT

$311.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539110904

CONSOLE TOP

$26.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539110907

CONTROL PANEL

$75.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539107776

CONSOLE BOTTOM

$80.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539110934

CONSOLE SUPPORT

$28.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539108391

HCS 1/4-20 x 3

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539108055

SUPPORT WELDMENT

$17.99

$

Usually ships in 3-10 days

0

15

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539110920

DOOR-FINISHED

$24.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539977778

ABRASIVE PAD

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539104721

FLOOR PAN WELDMENT

$218.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539102587

RUBBER STOP

$5.99

$

In Stock, Qty 15

0

20

Husqvarna 539104411

KNOB w/ STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 539107858

GROMMET BUMPER

$4.99

$

Usually ships in 3-10 days

0

22

$3.99

$

Usually ships in 3-10 days

0

23

$3.99

$

Usually ships in 3-10 days

0

24

$6.99

$

Usually ships in 3-10 days

0

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539106300

SKID PLATE

$47.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539104763

RETAINER, 5/16-18 U-TYPE

$6.49

$

In Stock, Qty 12

0

28

Husqvarna 539990637

HCS 3/8-18 x2 1/2

$1.99

$

Usually ships in 3-10 days

0

$

$

Not available

30

$33.99

$

Usually ships in 3-10 days

0

31

$

$

Not available

$12.99

$

In Stock, Qty 5

0

$4.99

$

In Stock, Qty 18

0

34

Husqvarna 539102732

THROTTLE CABLE

$

$

Not available

35

Husqvarna 539110673

SCREW 10-12 x 3/4 THD FRM

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990362

SCREW 1/4-20 x 5/8 THD FRM

$4.99

$

In Stock, Qty 12

0

37

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990411

HCS #10-24 x 1/2

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539976977

NUT #10-24 HEX NYLOC

$

$

Not available

$1.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

42

$2.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 539990585

NUT 5/16-18 WHIZ

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

$12.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

48

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

49

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539990187

WASHER 5/16 SLOTTED LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

51

Husqvarna 539990563

HCS 3/8-16 x 1

$1.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539990052

WASHER 1/4 SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539990188

WASHER 5/16 FLAT SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

54

Husqvarna 539107026

HCS 1/2-13 x2 GR8

$1.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 539990258

NUT 1/2-13 HEX

$4.99

$

In Stock, Qty 14

0

57

Husqvarna 539106504

WASHER HEAVY

$

$

Not available

58

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

59

Husqvarna 539976938

HCS 5/16-18 x2 1/4

$4.99

$

In Stock, only 2 left!

0

60

Husqvarna 539990629

HCS 3/8-16 x2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539108346

HCS 1/2-13 x2 1/2

$5.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

$0.99

$

Usually ships in 3-10 days

0

64

Husqvarna 539111824

FOAM STRIP

$3.99

$

Usually ships in 3-10 days

0

64

Husqvarna 539976856

WIRE TIE

Note: NOT SHOWN

$5.99

$

Usually ships in 3-10 days

0
