BZ 7234 D BF (968999370) - Husqvarna 72" Zero-Turn Mower (2005-08) 72" Deck Parts Diagram

72" Zero-Turn Mower

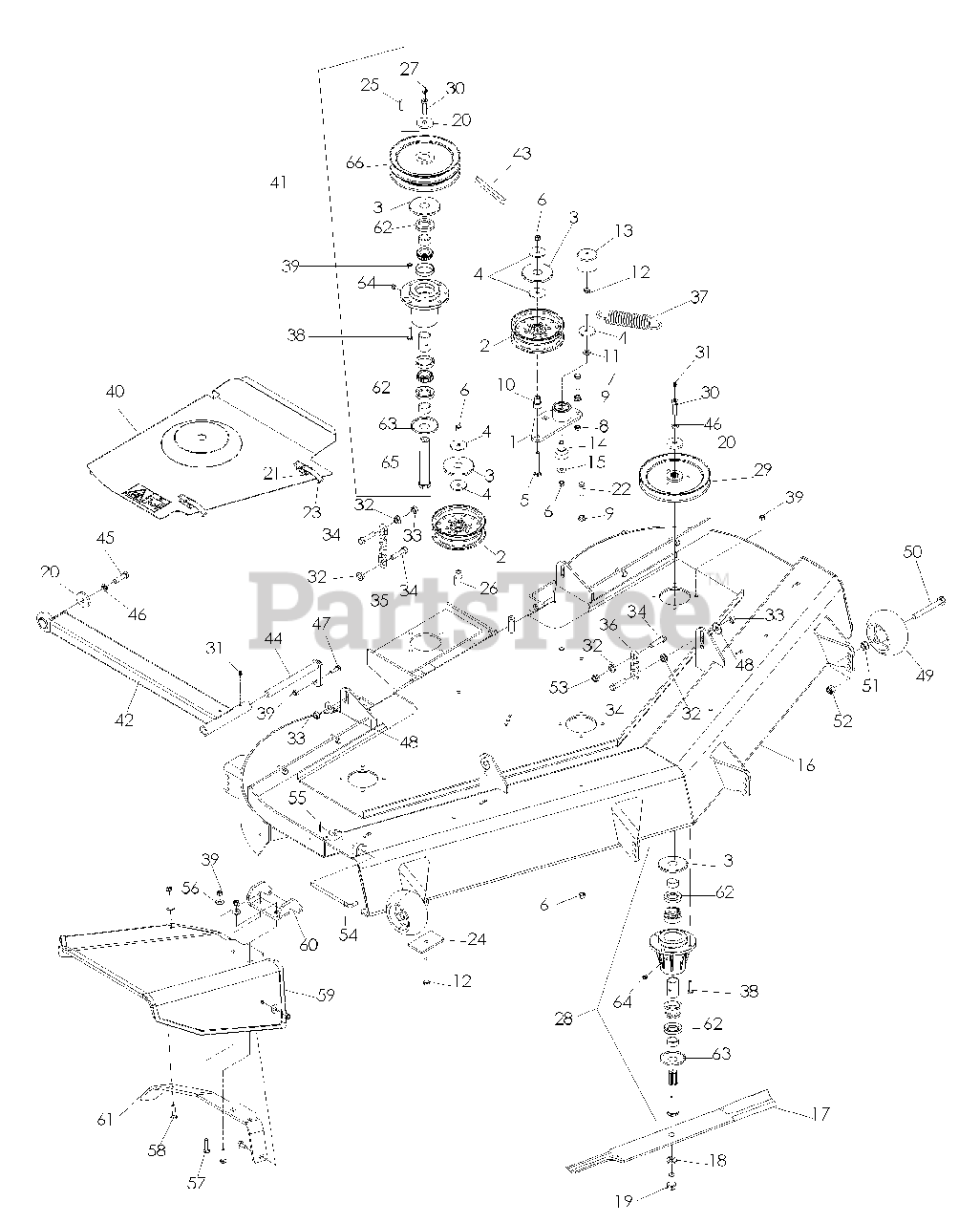

72" Deck Parts Diagram

  • Title

1

Husqvarna 539130391

ARM, IDLER W/BEARINGS

$

$

Not available

2

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

3

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

4

Husqvarna 539111897

WASHER 3/8 SPECIAL

$

$

Not available

5

Husqvarna 539130235

RHSNB 3/8-16 x 2 3/4

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 539107042

HCS 3/8-16 x 1/2 GR8

$3.99

$

In Stock, Qty 6

0

8

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

9

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, only 4 left!

0

11

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539101341

HCS 3/8-16 x3

$5.99

$

In Stock, Qty 12

0

13

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0

14

Husqvarna 539130205

PIVOT, BEARING

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539111429

TUNNEL DECK W/DECALS

$

$

Not available

17

Husqvarna 539105476

BLADE, 25"

$39.99

$

In Stock, Qty 20+

0

18

Husqvarna 539990333

WASHER 5/8 SLOTTED LOCK

$1.99

$

In Stock, Qty 6

0

19

Husqvarna 539103299

HCS 5/8-18 x 1 1/4

$

$

Not available

20

Husqvarna 539106504

WASHER, HEAVY

$

$

Not available

21

Husqvarna 539110740

POP RIVET

$

$

Not available

22

Husqvarna 539976941

HCS 3/8-16 x 1 1/4

$4.99

$

In Stock, only 2 left!

0

23

Husqvarna 539109660

DRAW LATCH

$14.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539103303

PAD
(Superseded to 539106504)

$

$

Not available

25

Husqvarna 539101995

KEY 1/4 SQ x 1 1/8

$

$

Not available

26

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

27

Husqvarna 539912758

ZERK 90° 1/4-28

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539112934

HOUSING ASSEM
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

29

Husqvarna 539112126

PULLEY

$

$

Not available

30

Husqvarna 539112120

HCS 7/16-20 x 1 1/2 GR8

$30.99

$

In Stock, only 1 left!

0

31

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 539102582

NUT 7/16-14 HEX WHIZ LK

$

$

Not available

33

Husqvarna 539119124

NUT 7/16-14 HEX NYLOC

$

$

Not available

34

Husqvarna 539108073

HCS 7/16-14 x 1 3/4

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539109693

LIFT CHAIN, 3 LINK

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 539130690

SPRING

$12.99

$

In Stock, only 1 left!

0

38

Husqvarna 539990627

HCS 5/16-18 x 1 1/4

$4.99

$

In Stock, only 1 left!

0

39

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 539110743

BELT SHIELD ASSEM RH

$242.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539110744

BELT SHIELD ASSEM LH

$218.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539112263

JACKSHAFT ASSEM LOWER

$789.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539110725

STRUT LH

$84.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539104335

BELT
(Superseded to 522795901)

$109.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539105480

PIVOT PIN

$36.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539100141

HCS 7/16-20 x 1 1/2

$

$

Not available

46

Husqvarna 539990247

WASHER 7/16 SPLT LOCK

$

$

Not available

47

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539104864

WASHER 7/16 FLAT
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

50

Husqvarna 539118862

HHB 1/2-13 x 4
(Superseded to 539108366)

$6.99

$

In Stock, Qty 17

0

51

Husqvarna 539990258

NUT 1/2-13 HEX

$4.99

$

In Stock, Qty 14

0

52

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

53

Husqvarna 539990839

NUT 7/16-14 HEX CNTRLK

$3.99

$

In Stock, only 3 left!

0

54

Husqvarna 539131813

PIN, CHUTE PIVOT

$7.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539990365

PIN, COTTER 1/8 x 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

56

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

57

Husqvarna 539102933

RHSNB 5/16-18 x 1 1/2

$

$

Not available

58

Husqvarna 539100472

RHSNB 5/16-18 x 1 1/4

$3.99

$

In Stock, Qty 20+

0

59

Husqvarna 539130780

DISCHARGE CHUTE

$

$

Not available

60

Husqvarna 539130923

BRACKET, CHUTE

$43.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539130926

REINFORCMENT, BRACKET

$

$

Not available

62

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

63

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

64

Husqvarna 539977326

POPPET, GREASE

$13.99

$

Usually ships in 3-10 days

0

65

Husqvarna 539108767

JACKSHAFT SPINDLE

$103.99

$

Usually ships in 3-10 days

0

66

Husqvarna 539106346

SHEAVE

$

$

Not available
