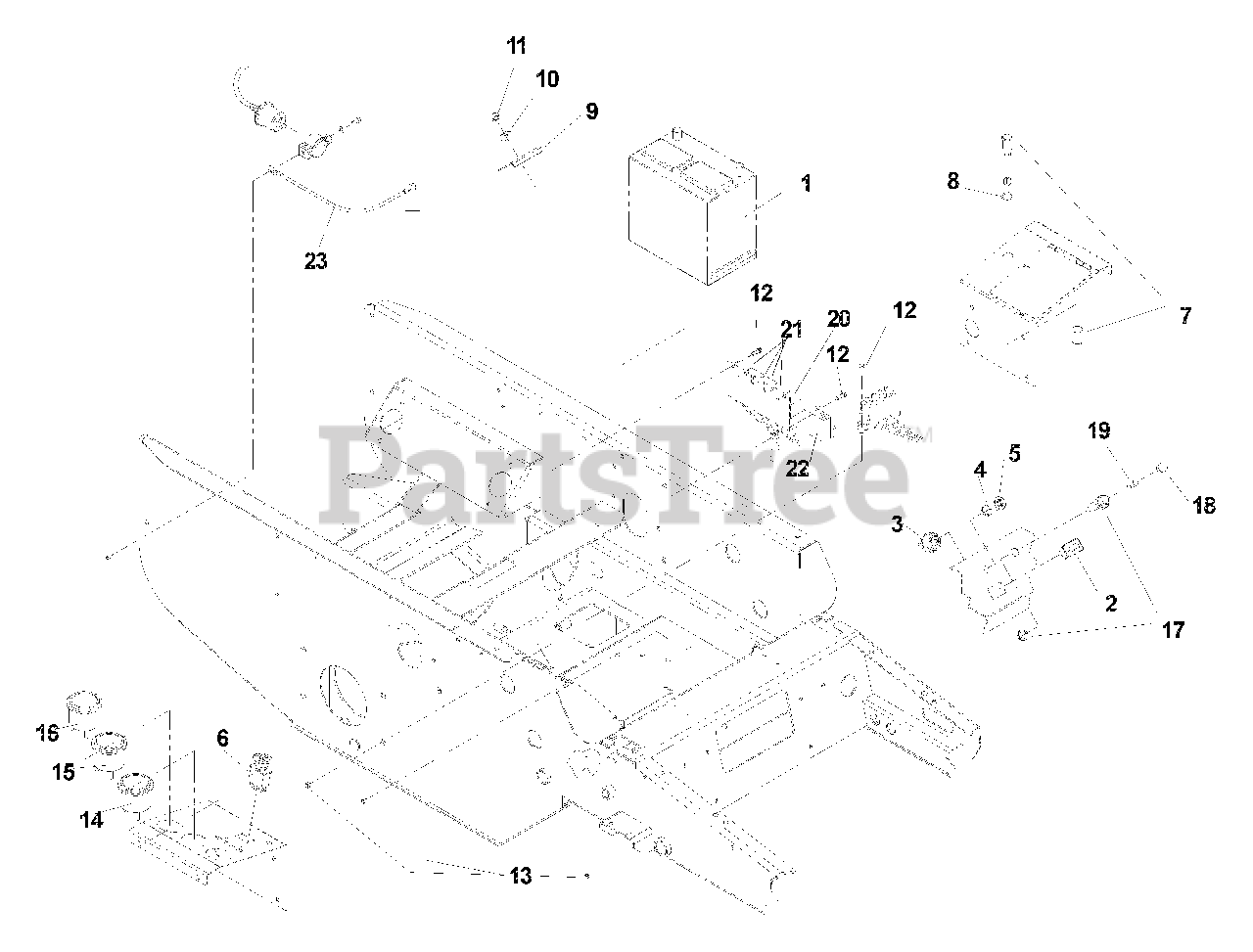

BZ 7234 D (968999216) - Husqvarna 72" Zero-Turn Mower (SN: 033600000 & Above) (2004-11) Electrical Group Parts Diagram

72" Zero-Turn Mower

Electrical Group Parts Diagram

  • Title

$

$

Not available

2

Husqvarna 539108016

Hourmeter, LCD w/flash alert
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

3

Husqvarna 539101770

Switch, ignition

$

$

Not available

4

Husqvarna 539103177

Nut, ignition switch

$3.99

$

In Stock, only 3 left!

0

5

Husqvarna 539103178

Cap, ignition switch nut

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539101768

Switch, clutch
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

7

Husqvarna 539107856

Power source housing

$

$

Not available

8

Husqvarna 539107857

Power source cap

$2.99

$

Usually ships in 3-10 days

0

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990692

Washer, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539990717

Nut, 5/16-18
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539106312

Bolt, , #10-24 x 3/4

$9.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539976977

Nut, #10-24, nyloc

$

$

Not available

14

Husqvarna 539105246

Gauge, temperature

$80.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539106388

Gauge, amperes

$121.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539106387

Gauge, oil pressure

$121.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539107920

Lamp socket

$17.99

$

Usually ships in 3-10 days

0

$

$

Not available

$42.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539108361

Relay, Glow Plug

$157.99

$

Usually ships in 3-10 days

0

$26.99

$

In Stock, Qty 8

0

22

Husqvarna 539108348

Timer/glow plug

$

$

Not available

22

Husqvarna 539101771

Fuse, 7.5 AMP, 32 volts,

Note: (Not Shown)

$

$

Not available

22

Husqvarna 539102086

Fuse, 20 AMP, 32 volts,

Note: (Not Shown)

$

$

Not available

22

Husqvarna 539108978

Fuse, 10 AMP, 32 volts,

Note: (Not Shown)

$2.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539108979

Fuse, 30 AMP, 32 volts,

Note: (Not Shown)

$2.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539108980

Fuse, 50 AMP, 32 volts,

Note: (Not Shown)

$6.99

$

Usually ships in 3-10 days

0

$

$
