BZ 7234 D (968999216) - Husqvarna 72" Zero-Turn Mower (SN: 033600000 & Above) (2004-11) Deck Assembly 72" Parts Diagram

72" Zero-Turn Mower

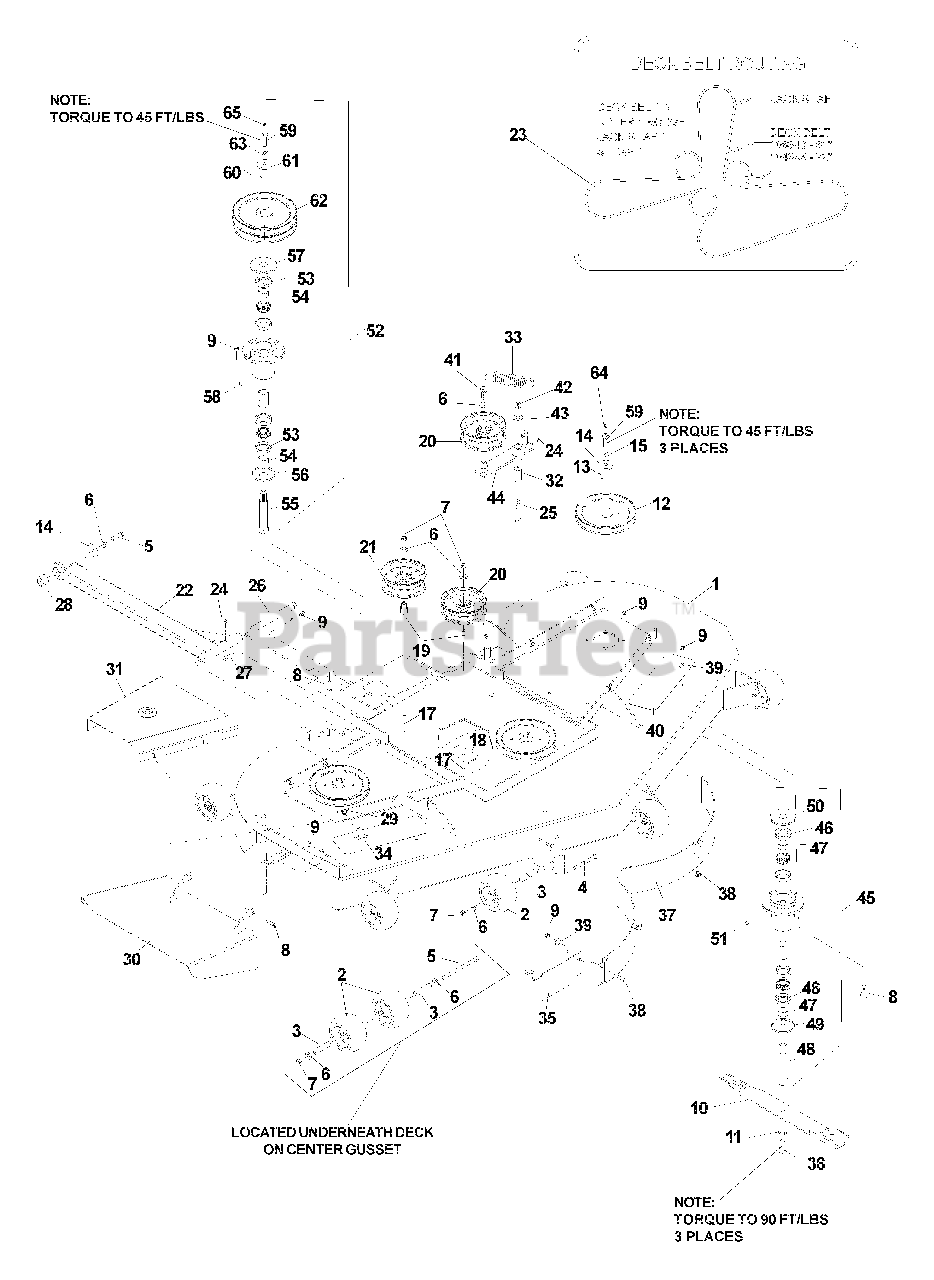

Deck Assembly 72" Parts Diagram

  • Title

1

Husqvarna 539106218

72" Deck w/decals

$

$

Not available

2

Husqvarna 539102643

Anti-scalp roller

$

$

Not available

3

Husqvarna 539102698

Bushing

$

$

Not available

4

Husqvarna 539102754

Bolt, 3/8-16 x 3 1/2

$4.99

$

In Stock, Qty 13

0

5

Husqvarna 539105422

Bolt, 3/8-16 x 6, Gd. 8

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990517

Washer, 3/8

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990546

Nut, 3/8-16, centerlock

$

$

Not available

8

Husqvarna 539990209

Bolt, 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990184

Nut, 5/16-18, centerlock

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539105476

Blade, 25"

$39.99

$

In Stock, Qty 20+

0

11

Husqvarna 539105634

Washer, 5/8, spring

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539107279

Pulley
(Superseded to 539112126)

$

$

Not available

13

Husqvarna 539101995

Key, 1/4" sq. x 1 1/8"

$

$

Not available

14

Husqvarna 539106504

Washer, heavy

$

$

Not available

15

Husqvarna 539990247

Lockwasher, 7/16

$

$

Not available

16

Husqvarna 539100141

Bolt, 7/16-20 x 1 1/2

$

$

Not available

17

Husqvarna 539990637

Bolt, 3/8-16 x 2 1/2

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539103303

Pad
(Superseded to 539106504)

$

$

Not available

19

Husqvarna 539103295

Bushing, idler

$14.99

$

In Stock, only 4 left!

0

20

Husqvarna 539103257

Pulley, idler

$74.99

$

In Stock, only 1 left!

0

21

Husqvarna 539103258

Pulley, idler (tall)

$53.99

$

In Stock, only 1 left!

0

22

Husqvarna 539107750

Strut, right

$133.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539107751

Strut, left

Note: (Not shown)

$169.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539104335

72" Deck belt
(Superseded to 522795901)

$109.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539976998

Zerk
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539103433

Bolt, 1/2-13 x 3 1/4, Gd. 5

$6.99

$

In Stock, only 4 left!

0

26

Husqvarna 539105480

Pin

$36.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539102619

Pin, pivot

Note: (Not shown)

$40.99

$

In Stock, only 3 left!

0

27

Husqvarna 539976934

Bolt, 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 539106401

Spacer, strut

$12.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539104763

"U" clip

$6.49

$

In Stock, Qty 9

0

30

Husqvarna 539108270

Chute, discharge

$94.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539108920

Shield, belt, right

$46.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539108922

Shield, belt, left

Note: (Not shown)

$60.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539103427

Bushing, pivot

$9.49

$

In Stock, only 2 left!

0

33

Husqvarna 539105192

Spring

$

$

Not available

34

Husqvarna 539104411

Knob w/stud
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 539105615

Baffle, center

$54.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539105633

Bolt, 5/8-18 x 2, Gd. 8

$3.99

$

In Stock, only 2 left!

0

37

Husqvarna 539105614

Baffle, center curved

$157.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990799

Bolt, 5/16-18 x 5/8, carriage
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539990692

Washer, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 539977778

Pad, abrasive

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 539990582

Bolt, 3/8-16 x 1, ser.

$

$

Not available

42

Husqvarna 539101331

Nut, 1/2-13, nyloc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 539990550

Washer, 1/2

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539103230

Idler arm

$

$

Not available

45

Husqvarna 539108774

Cutter housing, complete
(Superseded to 966956201)

$519.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539108754

Shaft seal

$7.99

$

In Stock, Qty 7

0

47

Husqvarna 539108758

Spacer

$

$

Not available

48

Husqvarna 539108761

Mini spindle
(Superseded to 539112123)

$

$

Not available

49

Husqvarna 539108449

Dust cap, bottom

$4.99

$

In Stock, Qty 15

0

50

Husqvarna 539108450

Dust cap, top

$5.99

$

In Stock, only 1 left!

0

51

Husqvarna 539977326

Grease popet

$13.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539108768

Jackshaft assembly, lower
(Superseded to 539112263)

$789.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539108754

Shaft seal

$7.99

$

In Stock, Qty 7

0

54

Husqvarna 539108758

Spacer

$

$

Not available

55

Husqvarna 539108767

Jackshaft spindle

$103.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539108449

Dust cap, bottom

$4.99

$

In Stock, Qty 15

0

57

Husqvarna 539108450

Dust cap, top

$5.99

$

In Stock, only 1 left!

0

58

Husqvarna 539977326

Grease popet

$13.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539108766

Bolt, 7/16-20 x 1 1/2, GD. 5, special
(Superseded to 539112120)

$30.99

$

In Stock, only 1 left!

0

60

Husqvarna 539101995

Key, 1/4" sq. x 1 1/8"

$

$

Not available

61

Husqvarna 539106504

Washer, heavy

$

$

Not available

62

Husqvarna 539106346

Sheave

$

$

Not available

63

Husqvarna 539990247

Lockwasher, 7/16

$

$

Not available

64

Husqvarna 539976998

Zerk
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

65

Husqvarna 539912758

Zerk, 90°

$4.99

$

Usually ships in 3-10 days

0
